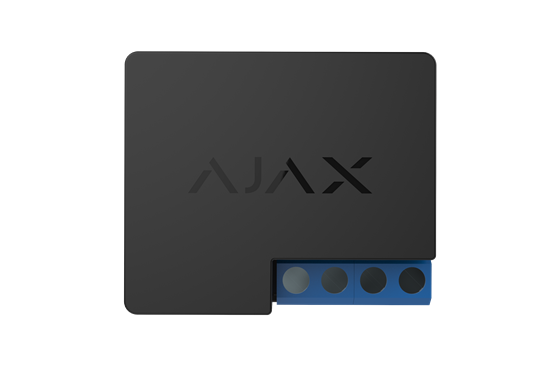

Power relay to control 110/230V~ PSU remotely (black)

Brand : Ajax

UPC : 850042389379

PART # : Ajax WallSwitch (9NA) black

Introducing the Ajax WallSwitch: This innovative device offers convenient control over your electrical appliances and lighting within the Ajax security system. With its sleek design and wireless connectivity, the Ajax WallSwitch seamlessly integrates into your home or office environment. Easily automate and manage your lighting and electrical devices with the Ajax WallSwitch, enhancing both convenience and security in your space.

Power grid security

The device is directly connected to a source of 110 V or 230 V, and it can close or open a circuit at will. The relay has a 3 kW load capacity, which is sufficient to connect a device with a high power requirement. The device's ability to display power consumption in the Ajax app may now be seen thanks to WallSwitch.

Never miss a beat

The Jeweller radio protocol was created by Ajax to guarantee the continuous operation of all security system components. The radio protocol uses frames to synchronise device communication, authentication to prevent spoofing and encryption to prevent hacking.

Intelligent home and business security

Utilize automation scenes to enable your security system to actively defend against threats in addition to reporting them.

Installation with no added effort

Scanning a QR code with the Ajax app is all it takes to connect WallSwitch to the hub in under a minute. This tiny device (39x33x18 mm) makes it simple to insert into a junction box, electrical panel, or switching unit body. Additionally, the adaptable external antenna offers dependable connectivity.

Compatibility Hubs: Hub Hybrid (4G), Hub Hybrid (2G), Hub 2 Plus Jeweller, Hub 2 (4G) Jeweller, Hub 2 (2G) Jeweller, Hub Jeweller; range extenders: ReX 2, ReX

Classification Radio channel relay unit

Device type Wireless

Actuating element Relay

Relay service life 200,000 switch-ons

Voltage protection For 230 V mains: max — 264 V, min — 161 V For 110 V mains: max — 126 V, min — 77 V

Maximum load current 13 A

Maximum current protection Yes (13 A)

Maximum temperature protection >65°C in the wall plate

Permissible power Resistive load at 230 V — up to 3 kW; Resistive load at 110 V — up to 1.5 kW

Electric power meter function Available

Energy consumption parameter check Current, voltage, power consumption

Alarm signal delivery time 0.15 s

Power supply 110−230 V±10% 50/60 Hz

Operation modes ● Impulse (firmware version 5.54.1.0 or higher. Manufacture date from March 5, 2020) ● Bistable

Contact state (firmware version 5.54.1.0 or higher) ● Normally open ● Normally closed

Adjustable pulse duration (firmware version 5.54.1.0 or higher) 0.5 – 255 sec

Jeweller radio technology Communication range with central unit — up to 1,000 m in an open space; Two-way communication between devices Operating frequencies — 868.0 - 868.6 MHz Self-adjusting RF output power — up to 25 mW; Block encryption based on AES algorithm Detector scanning period — 12 - 300 s

Operating temperature range 0°С to +64°С

Permissible humidity Up to 75%

Protection class of body IP20

Anti-sabotage Protection against fraud; Jamming detection

Remote setting and testing +

Dimensions 39 × 33 × 18 mm

Warranty Replacement and repair within 24 months of the date of sale.

Service life 10 years

Complete set WallSwitch Installation set User’s guide

Compliance with standards Radio Equipment Directive (RED): EN 300 220-1 V3.1.1, EN 300 220-2 V3.2.1; Restriction of Hazardous Substances Directive (RoHS): EN IEC 63000:2018; Electromagnetic Compatibility Directive (EMC): EN 301 489-1 V2.2.3, EN 301 489-3 V2.1.1; Low Voltage Directive (LVD): EN 62479:2010, EN 60730-1:2016+A1:2019; FCC ID: 2AX5VWALLSW-NA, 2AX5VWLSWJ1; IC ID: 26860-WLSWJ1; PSTI UK: Schedule 2

Documentation & Support

Specifications Sheet — 28-08-2024 — [TDS] WallSwitch Jeweller — EN.pdf
