Wireless touch Keypad (white)

Brand : Ajax
PART #: Ajax Keypad (9NA) white

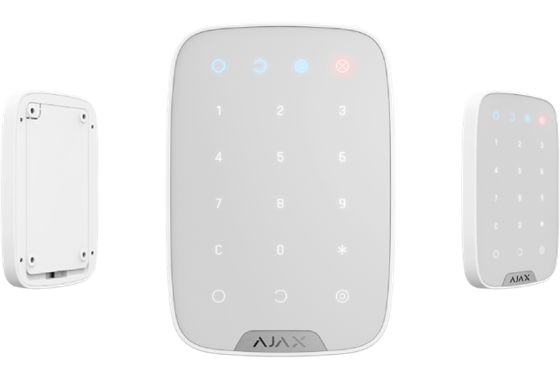

Introducing Ajax KeyPad: the wireless touch keypad designed for arming or disarming your Ajax security system with ease. Strategically placed near the entrance door, it ensures convenient access for users. Featuring a wall mount, the touch keypad seamlessly integrates into your home or office environment. In case of coercion, it activates a silent alarm when entering the code. With just a single click, it swiftly activates the armed mode, enhancing security at your fingertips.

Operational principles

When a digital code is input on the keypad, the device enters security modes. An alert notifies of the state of the security, any detector issues, or a breakdown with the hub communication.

Features

There is a button for the alarm. It notifies you of any password guessing attempts left and instantly blocks you if the maximum number of entries is reached.

Ready to use right away: There is no need to disassemble the detector because the battery is already in place. It can be linked to the hub on the mobile application with just one click. It takes only a few minutes to mount it on the SmartBracket.

Classification Radio channel touch keypad
Type of keypad Wireless, touch
Compatibility Operates only with Hub, Hub Plus and ReX
Number of buttons 15
Duress code Yes
Protection against password attack Yes
Protection against passcode guessing Yes
Arming/disarming indication Yes
Power supply Battery: ААA batteries; Power supply voltage: 3 V (batteries are installed in pairs); Battery life — up to 2 years
Jeweller radio technology Communication range with central unit — up to 1,700 m in an open space; Two-way communication between devices; Operating frequencies — 868.0−868.6 MHz; Self-adjusting RF output power — up to 20 mW; Block encryption based on AES algorithm; Keypad scanning period — 12−300 s
Temperature sensor Available
Operating temperature range -10°С to +40°С
Permissible humidity Up to 75%
Anti-sabotage Protection against fraud, Jamming detection, Tamper-resistant
Remote setting and testing +
Dimensions 150х103х14 mm
Weight 197 g
Certification Grade 2, CE
Warranty Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty.
Complete set KeyPad touch keyboard, SmartBracket mounting panel, 4 ААА batteries (pre-installed), Installation set, User’s guide
