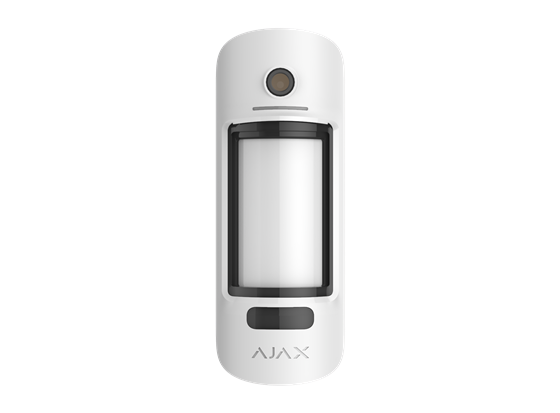

Wireless outdoor motion detector with photo camera (white)

Brand : Ajax
PART #: Ajax MotionCam Outdoor (9NA) white

Introducing Ajax MotionCam Outdoor: the cutting-edge wireless outdoor motion detector equipped with a photo camera to verify alarms. With alarm photo verification and a three-stage digital algorithm, false alarms are effectively prevented. Featuring an HDR photo camera and an anti-masking system, it ensures accurate detection even in challenging conditions. Operating for up to 3 years from battery power, it offers long-term reliability. Plus, with dust and splash resistance, it withstands harsh outdoor environments with ease.

Smart false alarm filter

MotionCam Outdoor has two separate PIR sensors, and a two-step LISA algorithm is used to analyse their data. When both sensors detect motion, LISA correlates and analyses the signals to quickly discern between genuine threats and interference. When MotionCam Outdoor senses motion, LISA instantly examines and contrasts the data patterns from two different sensors. The alarm is set off if the forms are similar. LISA examines frequency components in the signals of the two sensors when they both detect motion, but the correlational analysis fails to find enough similarities.

It is in the app.

Installation engineers can save the most time possible by connecting and setting MotionCam Outdoor. All you need to do to add a detector to the system is scan the QR code with the Ajax app and give it a name and room. Real-time device configuration, communication, and detection zone testing are all possible in the app. Without having to physically visit the site, the detector's system parameters can be remotely changed or disabled as needed.

Classification Electro-optical radio channel security detector
Type of detector Wireless
Installation method Outdoors / indoors
Recommended installation height 0.8 – 1.3 m
Compatibility Hub 2, Hub 2 Plus, Does not work with ReX radio signal range extender
Sensing element 2 × PIR sensor
Motion detection distance Adjustable, from 3 to 15 m
Pet immunity Animals up to 80 cm tall
Sensitivity Adjustable, 3 levels
Motion detector’s viewing angle Horizontal — 90°, Vertical — 80°
Camera’s angle Horizontal — 105°, Vertical — 50°
TV distortion (EBU standard) Barrel, –17%
Photo in case of alarm Photo resolution: 320 × 176 pixels (by default), 640 × 352 pixels (Shooting series up to 5 photos)
Infrared light for shooting in the dark Available
Power supply 4 × CR123A batteries
Supply voltage 6 V
Battery life Up to 3 years (up to 2.5 years if “Delay when entering” setting is activated)
Jeweller radio technology Communication range with a hub — up to 1,700 m in an open space; Two-way communication between hub and device; Radio frequency bands: 866.0 – 866.5 MHz, 868.0 – 868.6 MHz, 868.7 – 869.2 MHz, 905.0 – 926.5 MHz, 915.85 – 926.5 MHz, 921.0 – 922.0 MHz (depends on the region of sale); Self-adjusting RF output power — up to 20 mW; Block encryption with a dynamic key; Detector polling period — 12–300 s; Frequency hopping
Alarm delivery time 0.15 s
Wings radio technology Transmission of a series of photos Photo delivery time with a default settings: up to 9 seconds
Temperature sensor Available
Operating temperature range From –25°С to +60°С
Operating humidity Up to 95%
Protection class IP56
Anti-sabotage Anti-masking, Protection against forgery, Jamming detection, Tamper-resistant
Remote configuration and testing Available
CMS compatibility CMS connectivity: Contact ID, SIA (DC-09)
Dimensions 206 × 108 × 93 mm
Weight 470 g
Warranty 24 months from the date of sale
Complete set MotionCam Outdoor motion detector, SmartBracket mounting panel, Hood visor, 4 × CR123A batteries (pre-installed), Installation kit, User’s guide
