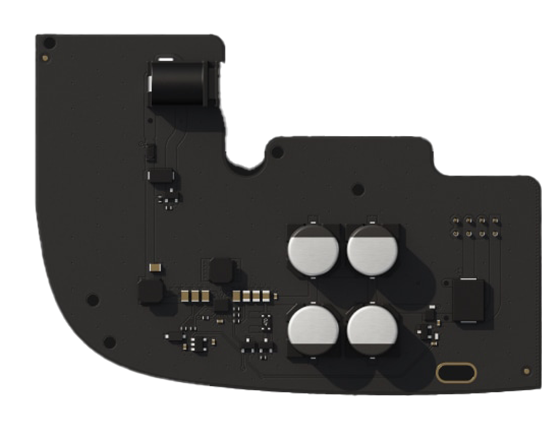

Ajax 6V PSU for Hub 2

Brand : Ajax
UPC : 850042389393
PART # : Ajax 6V PSU for Hub 2

Introducing the Ajax Systems 6V PSU: This power supply unit offers a reliable alternative for powering your Ajax hub without relying on the facility's power grid. With the capability to operate for extended periods from an external battery, it ensures continuous protection for crucial buildings, construction sites, or abandoned properties. Say goodbye to dependency on electricity and hello to uninterrupted security with the Ajax Systems 6V PSU.

Compatibility

Only the Hub 2 Plus control panels are compatible with the power supply unit. It comes with a terminal adapter and a standard power jack plug to connect the power cable.

Defending Facilities without Electricity

With an alternative 6V Power Supply unit, your hub can operate for years from an external battery - without being connected to the facility's power grid - and is ready to protect crucial buildings, construction sites, or abandoned properties from intruders, vandals, and unauthorized occupation.

INSTALLATION

6V PSU is installed into the device body, replacing the pre-installed 110/230 V power supply unit.

Compatibility Hub 2 (2G), Hub 2 (4G), Hub 2 Plus, ReX 2
Recommended batteries Zinc air and alkaline batteries with 4.2–16 V⎓ operating power
Input voltage 4.2–10 V⎓
Output voltage 4.8 V⎓ ± 5%
Switch-on voltage 4.2 V⎓ ± 2.5%
Switch-off voltage 3–3.4 V⎓ (depending on the load)
Maximum input current 2.2 A at 4.2 V⎓ 0.8 A at 10 V⎓
Maximum output current 1.5 A
Plugging in Plug socket: 6.5 x 2 mm Plug: 5.5 x 2.1 mm
Operating temperatures range From -10°С to +40°С
Operating humidity Up to 75%
Dimensions 98 × 70 × 17 mm
Weight Warranty service for 24 months from the date of sale
Complete set 6V PSU for Hub 2/Hub 2 Plus/ReX 2, Terminal adapter, Quick Start Guide
Compliance with standards Restriction of Hazardous Substances (RoHS): EN IEC 63000:2018; Electromagnetic Compatibility Directive (EMC): EN 55032:2015+A11:2020, EN 55035:2017+A11:2020; Low Voltage Directive (LVD): EN 62368-1:2014/A11:2017; NIST: FIPS 197; PSTI UK: Schedule 2
