Boosts the range of Ajax security systems devices (black)

Brand : Ajax
UPC : 850042389201
PART # : Ajax ReX (9NA) black

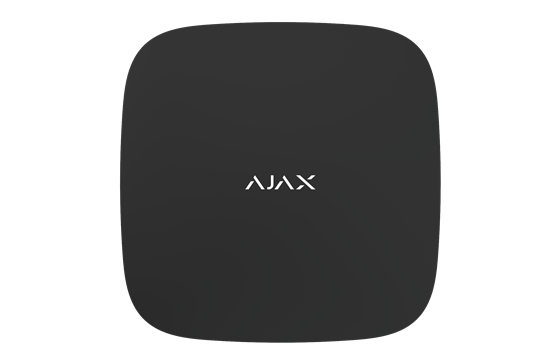

Introducing the Ajax Systems ReX: This innovative range extender enhances the coverage and reliability of your Ajax security system, ensuring seamless communication between devices even in large installations or challenging environments. With its robust design and advanced technology, the Ajax ReX extends the radio signal range of your Ajax hub, allowing for flexible placement and comprehensive protection. Say goodbye to connectivity issues and hello to enhanced security with the Ajax Systems ReX.

A smooth security system upgrading

We've included the option of automatic data transmission to make the process of updating installed hubs simpler. Engineers can transfer settings, connected devices, groups, scenes, and users from an existing hub to Hub 2 Plus using the import feature within 15 minutes or less.

Two hubs are better than one

ReX is just as powerful as the hub and runs OS Malevich. The intelligent extender quickly manages its connected devices and takes important decisions. With the free OS Malevich updates available to all users, ReX's capabilities and functionality inside the security system continue to add additional functionality.

Keeps intruders at bay

ReX is shielded from hardware and software attacks and is immune to viruses and vulnerabilities thanks to the OS Malevich's distinctive operation logic. Additionally, all ReX communications are encrypted, making it nearly impossible to intercept any signals. ReX will continue to protect your property utilising the built-in backup battery even if there is a power outage.

IMPROVES THE SECURITY SYSTEM

ReX combines the devices into a system-wide autonomous group. If the connection to the hub is lost for whatever reason, the extender assumes complete control of the situation. ReX may turn on the siren if one of its detectors delivers an alert signal in order to draw attention to the situation and deter the intruder.

Connecting and installing in an intuitive manner

Scan the QR code, give it a name, and turn ReX on to connect it to the network. Choose the devices from the list that should use the range extender afterward. Install ReX in a secure location and then continue. No disassembly is necessary. Use only the SmartBracket mount.

Classification Radio channel range extender
Device type Wireless
Installation method Indoors
Compatibility All Ajax hubs, * Doesn’t support MotionCam detectors
Alarm signal delivery time 0.3 seconds
Maximum connected devices (in a system with one range extender) Hub, Hub 2, Hub Hybrid — up to 99 Hub Plus — up to 149 Hub 2 Plus — up to 199
Max number of connected ReX per hub* Hub — 1, Hub Plus/Hub 2/Hub 2 Plus/Hub Hybrid — 5; *ReX can only be directly connected to the hub. ReX cannot be connected to another ReX
Operating system OS Malevich
Power supply 110-240 V from mains or 12 V when using 12V PSU for Hub/Hub Plus/ReX Built-in back-up battery: Li-Ion 2 А·h Up to 35 hours of offline operation
Jeweller radio technology / Communication range with detectors up to 1,800 m in an open space. Two-way communication between devices
Radio frequency bands 866.0–866.5 MHz; 868.0–868.6 MHz; 868.7–869.2 MHz; 905.0–926.5 MHz; 915.85–926.5 MHz; 921.0–922.0 MHz (depends on the region of sale)
Self-adjusting RF output power up to 20 mW
Detector polling period 12−300 s
Block encryption AES algorithm
Operating temperature range From −10°С to +40°С
Permissible humidity Up to 75%
Anti-sabotage Protection against fraud, Jamming detection, Tamper-resistant
Dimensions 163 × 163 × 36 mm
Weight 330 g
Warranty Within 24 months from the date of sale
Complete set Intelligent radio signal range extender ReX, SmartBracket mounting panel, Power cable, Installation kit, Quick Start Guide
Protection against jamming Frequency hopping
Compliance with standards EN 50131 (Grade 2), PD 6662:2017, UL1023, UL2610, ULC S304
