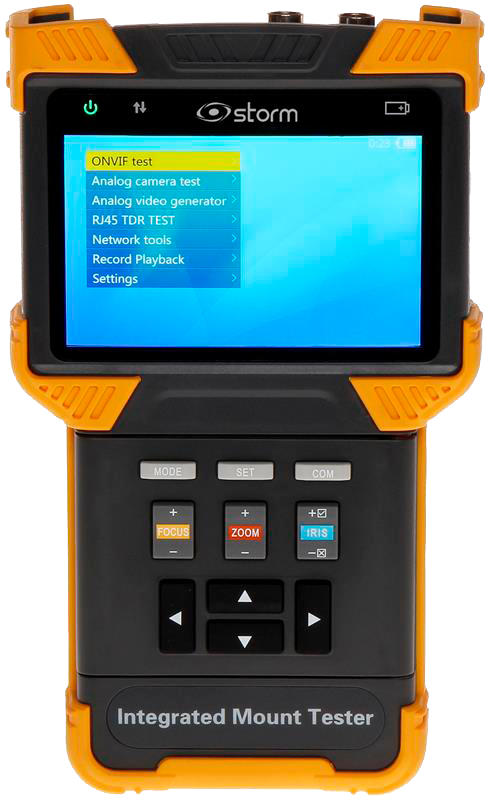

Camera tester

Brand : STORM

UPC: 685225607632

PART #: INSPFM900

Introducing the Camera Tester, an essential tool for security professionals seeking efficiency and versatility in their work. This advanced device boasts a 4" IPS screen, providing clear and vibrant visuals that enhance the user experience. The tester comes equipped with a QWERTY flip keyboard featuring 45 keys, facilitating easy and intuitive operation.

One of the standout features of the Camera Tester is its support for IP configuration via the Onvif protocol, ensuring compatibility with a wide range of IP cameras. Additionally, it supports HDCVI and analog self-adaptive access, making it a versatile choice for various camera types. The device also includes 8x digital zoom, allowing users to closely inspect video feeds for detailed analysis.

Audio support and RS485 control are further enhancements that make the Camera Tester a comprehensive tool for camera setup and maintenance. The ability to manage audio and control RS485-connected devices adds to its functionality, making it a must-have for professionals in the security industry.

With its robust feature set and user-friendly design, the Camera Tester streamlines the process of configuring and testing cameras, ensuring that security systems are installed and maintained with precision and ease.

Physical Port -

Network Port 2x10/100/1000M RJ45 port, support switch mode

Function Port 2xBNC port (Video IN and Video OUT), 1xRS485, 1xAudio In, 1xUSB, 1xReset

IPC Test -

Protocol ONVIF 2.4.1, RTSP, RTP

Network Test 10/100/1000/M Ethernet link test, loop detect, Ethernet traffic flow monitor, link quality test

IP Configuration Static IP/ DHCP client / DHCP server

IPC Test Discover camera real time video, camera configuration, PTZ control, audio test, full screen preview and 8x digital zoom, snapshot, record video(recording original data stream)

HDCVI & Analog Test -

Format NTSC, PAL

Resolution D1, 720P, 1080P

Signal Level 1Vpp

Camera Test Real time video, PTZ control, audio test, full screen preview and 8x digital zoom, snapshot, record video(H.264)

HDCVI OSD Camera configuration

PTZ Control -

Protocol More than 30 protocols including STORM, Samsung, Panasonic, etc.

Baud Rate 150, 300, 600, 1200, 2400, 4800, 9600, 19200bps

Detection -

TDR detection 0 ~ 150m net cable detection, resolution 2m

POE test PD test / PSE test

Network Analyze Sniff, list subnet, ping

Analog Video Generator Generate PAL/ NTSC video signal of various test pattern

Record Playback Support local playback

System Specification -

Screen 4.0 inch TFT 800xRGBx480(WVGA) resolution, 16.7M color, blacklight brightness adjustable

Operation Method Power key, 12 control keys, QWERTY flip keyboard with 45 keys

Auto Power Off Disable/ 5 ~60 minutes

Keyboard Tone Enable/ Disable

Upgrade Support online upgrade

Power Input POE port by POE midspan

POE Midspan Input AC100 ~230V 50 ~60Hz, output 48V/15w

Battery Dedicate battery, user replaceable, 7.4V lithium-ion polymer battery, capacity 22.2Wh

Power Output POE (802.3af, 802.3at) / DC12V 2A

Time Charging time 3 ~4 hours, working time 10 hours

Internal Storage 8GB flash

LED light 2x35lm LED light

Working Temperature -10℃~+55℃

Working Humidity 30%~90%

Dimensions 190xmmx113mmx37mm

Weight 0.5Kg

Specifications Sheet

18-08-2021 — INSPFM900 Camera Tester.pdf
