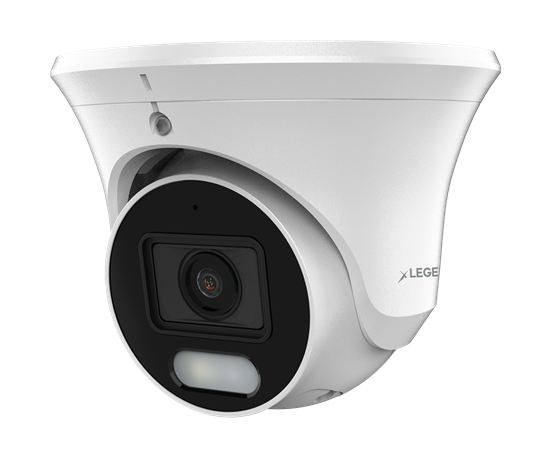

5.1 CHROMAVIEW HDTVI Universal Fixed Lens Turret Camera

Brand : LegendNX

UPC: 685225309093

PART #: LGNXTO5CVTF

This 5MP camera offers high-resolution imaging with 24/7 color images, featuring a 2.8mm fixed lens and up to 20m white light distance. Equipped with DWDR and 2D DNR for enhanced image clarity, it supports multiple video formats (TVI, AHD, CVI, CVBS), has IP67-rated water and dust resistance, and includes a built-in microphone for audio over coaxial cable.

5MP High-Resolution Imaging
Chromaview 24/7 night time color
2.8mm fixed lens
Up to 20m for white light distance
DWDR and 2D DNR for better image clarity
Supports: TVI, AHD, CVI, CVBS
Water and dust resistant (IP67)
Built-in microphone, audio over coaxial cable

NDAA Compliant Yes

Lens Type Fixed

Form Factor Turret

Audio In/Out Without Audio In/Out

Wide Dynamic Range WDR less than 120dB

Inputs/Outputs Without Inputs/Outputs

Megapixels 5 Megapixels

Image Sensor 1/2.7” CMOS Sensor

Signal System PAL/NTSC

Effective Pixels 2592 (H) × 1944 (V)

Electronic Shutter AUTO / 1/50 (1/60) ~ 1/50,000sec

Minimum Illumination 0.01Lux at (F1.2, AGC ON), 0 LUX with IR

Video Frame Rate 0.01Lux at (F1.2, AGC ON), 0 LUX with IR

Video Output AHD / TVI / CVI / CVBS

Microphone Only Supported in TVI mode

S/N Ratio ≥ 50dB

Noise Reduction 2D DNR

Day/Night Full Colour

White Balance MWB / ATW / GRAY WORLD

Wide Dynamic Range DWDR

IR LED 2

Warm Lights 2

Warm Light Range 20m / 65.62ft

Focal Length 2.8 mm fixed lens

Field of View 2.8 mm: Horizontal: 110°, Vertical: 60°, Diagonal: 126°

Lens Type Fixed Iris

Mount Type M12

Operating Conditions ﹣40°C ~ +60°C, RH 95% MAX

Power Supply DC12V (±10%)

Power Consumption Less than 8W

Protection Level IP67

Material Metal

Dimensions Φ 103.5 x 82.4 mm (Φ 4.07’’ x 3.24’’)

Gross Weight 0.81 lb / 370 g

Specifications Sheet

21-11-2024 — LGNXTO5CVTF - 5.1 CHROMAVIEW HDTVI UNIVERSAL FIXED LENS TURRET CAMERA.pdf
