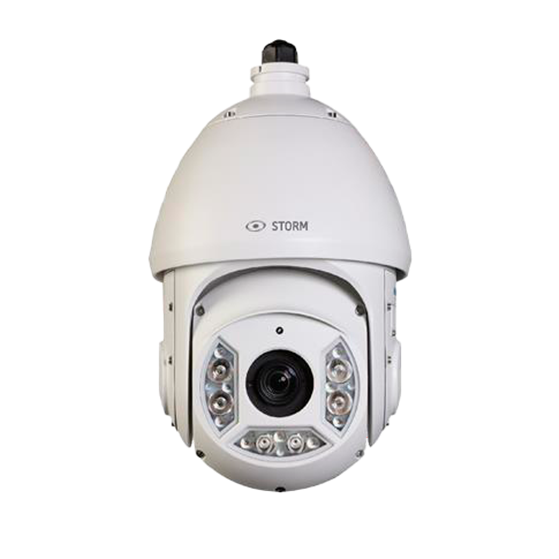

2.4MP 1080P HDCVI 25X PTZ

Brand : STORM

UPC: 685225607250

PART #: INSDO2IRCPTZ25X

The 2.4MP 1080P HD over Coax 25X PTZ Camera offers advanced surveillance capabilities with exceptional detail and flexibility. Equipped with a 2-megapixel STARVIS™ CMOS sensor, this camera provides stunning 1080P video at up to 50/60 fps, ensuring smooth and clear images in various lighting conditions.

With a powerful 25x optical zoom and Starlight Technology, it excels in low-light environments, delivering vibrant color and clarity even in darkness. The True Wide Dynamic Range (WDR) of 120dB enhances image quality in high-contrast scenes, while the impressive IR range of up to 150 meters allows for reliable nighttime monitoring. This PTZ camera is ideal for comprehensive surveillance in any setting.

Audio In/Out With Audio Inputs and/or Outputs

Inputs/Outputs With Inputs/Outputs

Wide Dynamic Range WDR 120dB or more

Megapixels 2 Megapixels

Lens Type Auto Focus

Form Factor PTZ

Image Sensor 1/2.8” progressive scan STARVIS™ CMOS 2 Megapixels

Effective Pixels 1920(H) x 1080(V)

Scanning System Progressive

DORI Distance PAL: 1/3s~1/30,000s; NTSC: 1/4s~1/30,000s

Minimum Illumination Color: 0.005 Lux at F1.6; B/W: 0.0005 Lux at F1.6; 0 Lux at F1.6 (IR on)

S/N Ratio More than 55 dB

IR Distance Distance up to 150m (492ft)

IR LEDs 6

Day/Night Auto(ICR) / Color / B/W

Backlight Compensation BLC / HLC / WDR(120dB)

White Balance Auto, ATW, Indoor, Outdoor, Manual

Gain Control Auto/Manual

Noise Reduction Ultra DNR (2D / 3D)

Digital Zoom 16x

Privacy Masking Up to 24 areas

Defog Supported

Flip 180°

Focal Length 4.8 mm – 120 mm

Max. Aperture F1.6 – F4.4

Viewing Angle H: 62.8° ~ 2.6°

Focus Control Auto / Manual

Pan/Tilt/Rotation Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°, auto flip 180°

Max. Aperture F1.6 – F4.4

Viewing Angle H: 62.8° ~ 2.6°

Optical Zoom 25x

DORI Distance Detect: 1613m (5292ft); Observe: 646m (2119ft); Recognize: 323m (1060ft); Identify: 161m (528ft)

Video Resolution 1080P(1920×1080) / 720P(1280×720)

Frame Rate 25/30fps at 1080P; 25/30/50/60fps at720P

Video out 1-channel BNC high definition video output / CVBS standard definition video output (switchable)

Manual Control Speed Pan: 0.1° ~160° /s; Tilt: 0.1° ~120° /s

Preset Speed Pan: 240° /s; Tilt: 200° /s

Presets 300

PTZ Mode 5 Pattern, 8 Tour, Auto Pan, Auto Scan

Speed Setup Human-oriented focal Length / speed adaptation

Power up Action Auto restore to previous PTZ and lens status after power failure

Idle Motion Activate Preset / Scan / Tour / Pattern if there is no command

Video Interface 1

Audio Interface 1

Alarm In/Out 2/1

Power Supply AC24V/3A(±10%)

Power Consumption Less than 23W

Working Environment -40°C ~ 60°C (-40°F ~ +140°F) / Less than 95% RH

Vandal Resistance & IP IP66

Weight 18.3 lbs (8.3kg)

Dimensions Φ205(mm) x 336(mm)

INSX300 - Ceiling Mount Bracket

PART #: INSX300 View more

INSX150 - Pole mount Bracket

PART #: INSX150 View more

INSX151 - Corner Mount Bracket

PART #: INSX151 View more

INSX140 - Waterproof Junction box

PART #: INSX140 View more

INSX120 - Waterproof Junction Box

PART #: INSX120 View more

Parapet Mount

PART #: INSPARA View more

INSX114 - Mount adaptor ring

PART #: INSX114 View more

INSX303 - Wall mount support

PART #: INSX303 View more

Specifications Sheet

18-08-2021 — INSDO2IRCPTZ25X 2.4MP 1080P HD over coax 25X PTZ 2021.pdf
