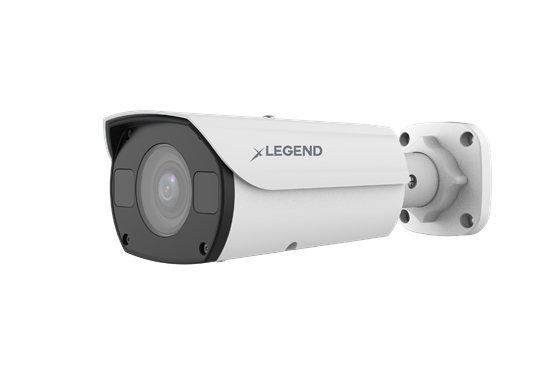

5.1MP Intelligent IR VF Bullet Camera, 2.7 - 13.5mm

Brand : LEGEND
UPC : 685225103615
PART # : INLGBO5IRWA

Introducing our AI Motorized Bullet Network Camera with IR, a state-of-the-art surveillance solution engineered to provide unparalleled performance and advanced capabilities. Featuring a high-quality 5MP resolution and a 1/2.7’’ CMOS sensor, this camera ensures sharp and detailed images for comprehensive monitoring.

With True WDR (120 dB) technology, our camera delivers optimal image clarity in challenging lighting conditions, minimizing glare and shadows for superior visibility. Supporting H.265+ & H.264 encoding, it efficiently compresses video data while maintaining excellent image quality, optimizing storage efficiency and bandwidth usage.

Equipped with advanced AI features such as People Flow Counting and Crowd Density Monitoring, our camera offers enhanced capabilities for crowd management and safety applications. Additionally, it features Smart IR technology, providing clear night vision up to 50 meters (164 feet), ensuring reliable surveillance day and night.

With alarm inputs and outputs, as well as audio inputs and outputs, our camera enables seamless integration with security systems, enhancing overall surveillance effectiveness. Whether it's for monitoring large outdoor areas, parking lots, or industrial facilities, our AI Motorized Bullet Network Camera with IR offers advanced surveillance capabilities to meet your security needs.

Image Sensor 1/2.7”, 5.0 megapixel, progressive scan, CMOS
Minimum Illumination Colour: 0.002 Lux (F1.2, AGC ON); 0 Lux with IR
Features HLC; BLC; 120db WDR
Lens Type Autofocus
Focal Length 2.7mm to 13.5mm
DORI Distance Wide (2.7mm): Detect 60.8m; Observe 24.3m; Recognize 12.2m; Identify 6.1m / Telemetry (13.5mm): Detect 303.8m; Observe 121.5m; Recognize 60.8m; Identify 30.4m
Compression H.265+ / H.265 / H.264 / MJPEG
Storage Micro SD slot, up to 256 GB
Power Supply DC 12V±25%, PoE (IEEE 802.3af )
Compliance NDAA
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1 ~ 1/100 000s
Minimum Illumination Colour: 0.002 Lux (F1.2, AGC ON); 0 Lux with IR
S/N Ratio More than 56dB
DORI Distance Wide (2.7mm): Detect 60.8m; Observe 24.3m; Recognize 12.2m; Identify 6.1m / Telemetry (13.5mm): Detect 303.8m; Observe 121.5m; Recognize 60.8m; Identify 30.4m
IR Distance Distance up to 50M (164ft)
Wavelength 850nm
IR On/Off Control Auto/Manual
Compliance NDAA
Backlight Compensation Supported
White Balance Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2
Noise Reduction 2D/3D DNR
HLC Supported
Defog Digital Defog
Privacy Masking Up to 4 areas
OSD Up to 8 OSDs
Smart IR Supported
ROI Up to 8 areas
Lens Type Autofocus
Focal Length 2.7 ~ 13.5mm, AF automatic focusing and motorized zoom lens
Viewing Angle H: 106.25°~ 30.42°; V: 56.36°~ 17.22°; O: 110.34°~34.18°
Pan/Tilt/Rotate Pan: 0° ~ 360°; Tilt: 0 ~ 90°; Rotate: 0° ~ 360°
Compression H.265+ / H.265 / H.264 / MJPEG
H.264 code profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 2880 x 1620, Max 30fps; 2560 x 1440, Max 30fps; 1920 x 1080, Max 30fps; Sub Stream: 1280 x 720, Max 30fps; 720 x 576, Max 30fps; 640 x 360,Max 30fps; 704 x 288, Max 30fps; 352 x 288, Max 30fps; Third Stream: 720 x 576, Max 30fps; 640 x 360,Max 30fps; 704 x 288, Max 30fps; 352 x 288, Max 30fps;
Bit Rate 128 Kbps ~ 16 Mbps
Alarm I/O 1/1
Ethernet 1 x RJ45 10M/100M Base-TX Ethernet
Protocols IPv4, IPv6,IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS, SSH
Compatibility ONVIF (Profile S, Profile G, Profile T), API,SDK
User/Host Up to 32 users. 2 user levels: administrator and common user
Security Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above // Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Management Software LEGEND VMS, Arkiv
Audio I/O 1 x Input: impedance 35kΩ; amplitude 2V [p-p]; 1x Output: impedance 600Ω; amplitude 2V [p-p]
Audio Compression G.711U, G.711A
Audio Bitrate 64 Kbps
Suppression Supported
Sampling Rate 8KHZ
Two-way Audio Supported
Edge Storage Micro SD slot, up to 256 GB
Network Storage ANR, NAS(NFS)
Smart Intrusion Prevention Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
Statistical Analysis People counting, support people flow counting and crowd density monitoring
Basic Detection Motion detection, Tampering alarm, Audio detection
General Function Watermark, IP address filtering, tampering alarm, access policy, ARP protection, RTSP authentication, user authentication
EMC CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019, EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020), FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Safety CE LVD (EN 62368-1:2014+A11:2017); CB (IEC 62368-1:2014); UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Power Supply DC 12V±25%, PoE (IEEE 802.3af)
Power Consumption Less than 8W
Working Environment -30° C to +60° (-22°F ~ 140°F) / Less than 95% RH (non-condensing)
Protection / Material IP67; IK10 / Metal
Weight 2.0lbs (0.92kg)
Dimensions 245 × 86 × 72mm (9.6” × 3.4” × 2.8”)
