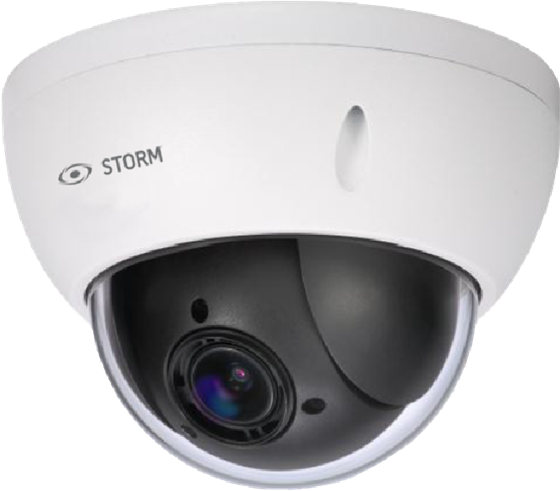

4.1MP PTZ 4X Dome Camera

Brand : STORM
UPC: 685225108788
PART #: INSDO4PTZ4X

The 4MP WDR 4x PTZ Network Camera represents a pinnacle of modern surveillance technology, designed to meet the stringent demands of professional security environments. Equipped with a 1/3” 4MP Progressive scan CMOS sensor, this camera excels in capturing clear and detailed video footage. This advanced sensor ensures that even the smallest details are captured with precision, making it suitable for applications where visual clarity is paramount, such as monitoring large outdoor areas, parking lots, or sensitive indoor spaces.

One of its standout features is the powerful 4x optical zoom, which enables operators to zoom in on specific areas without sacrificing image quality. This capability is essential for effective monitoring across various distances, allowing for close scrutiny of both individuals and objects of interest. Coupled with pan, tilt, and zoom functionalities, the camera offers comprehensive coverage and flexibility in surveillance operations, ensuring that security personnel can monitor expansive areas with ease.

To maximize efficiency in data transmission and storage, the camera supports triple-stream encoding. This feature allows simultaneous streaming of video at different resolutions and frame rates, catering to different monitoring needs. It ensures that users can access real-time, high-definition video for live monitoring while simultaneously recording lower-resolution streams for archival purposes, optimizing network bandwidth and storage resources.

In addition to its technical prowess, the camera is built to withstand challenging environmental conditions. With an IP66 weatherproof rating, it is resistant to dust, water, and extreme weather conditions, making it suitable for both indoor and outdoor deployment. Its IK10 vandal-proof rating further enhances its durability against physical tampering, ensuring reliable performance in high-risk environments. Combined with smart features like face detection, which enhances situational awareness by identifying and tracking individuals, the 4MP WDR 4x PTZ Network Camera sets a benchmark in modern surveillance technology for comprehensive security solutions.

Wide Dynamic Range WDR 120dB or more
Audio In/Out Without Audio In/Out
Inputs/Outputs Without Inputs/Outputs
Megapixels 4 Megapixels
Form Factor PTZ
Image Sensor 1/3” 4 Megapixel CMOS
Effective Pixels 2592(H) x 1520(V)
RAM/ROM 256M/128M
Scanning System Progressive
Electronic Shutter Speed 1/1s~1/30,000s
Minimum Illumination Color: 0.05Lux at F1.6; B/W: 0.005 Lux at F1.6
S/N Ratio More than 50dB
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / WDR (120dB)
White Balance Auto / ATW / Indoor / Outdoor / Manual
Gain Control Auto/Manual
Noise Reduction Ultra DNR (2D/3D)
Digital Zoom 16x
Motion Detetion Supported
Region of Interest Supported
Privacy Masking Up to 24 areas
Max. Aperture F1.6 - F2.8
Focal Length 2.7mm~11mm
Max. Aperture F1.6 - F2.8
Viewing Angle H: 112.5° ~ 30°
Optical Zoom 4x
Focus Control Auto/Manual
Pan/Tilt/Rotation Pan: 0° ~ 355°; Tilt: 0° ~ 90°
DORI Distance Detect: 180m; Observe: 72m; Recognize: 36m; Identify: 18m
Compression H.265 / H.264 / MJPEG(Sub Stream)
Resolution 4MP (2592×1520) / 3MP (2304×1296) / 1080P(1920×1080) 720P (1280×720) / D1 (704×576 / 704×480) / CIF (352×288/352×240)
Frame Rate Main stream: 4MP / 3MP / 1080P / 1.3MP / 720P (1 to 25/30fps); Sub Stream: D1/CIF (1 to 25/30fps); Third Stream: 720P / D1 / CIF (1 to 25/30fps)
Bit Rate 448K ~ 8192Kbps
Manual Control Speed Pan: 0.1° ~100° /s; Tilt: 0.1° ~60° /s
Preset Speed Pan: 100° /s; Tilt: 60° /s
Presets 300
PTZ Mode 8 Tours (up to 32 preset per tour)
Speed Setup Human-oriented focal Length / speed adaptation
Power up Action Auto restore to previous PTZ and lens status after power failure
Idle Motion Activate Preset/Tour if there is no command in the specified period
Smart Features Tripwire, Intrusion,Abandoned/Missing, Face Detection
Event Trigger Motion detection, Video tampering, Network disconnection, IP address conflict, Illegal access, Storage anomaly
Ethernet RJ-45 (10XBase-T/100Base-TX)
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
Compatibility ONVIF (Profile S/ Profile G); API
Video Management Software STORM; STORM+; ARKIV
Storage NAS; Local PC; Micro SD card up to 256GB
Maximum User Access 20 Users
Smart Phone iOS, Android
Power Supply DC 12V/1.5A, PoE(802.3af)
Power Consumption Less than 10W
Working Environment -30°C to 60°C (-22°F ~ +140°F) / Less than 95% RH
Ingress Protection IP66
Vandal Protection IK10
Dimensions Φ122 mm x 89 mm
Weight 1.46 lbs (0.66 kg)
