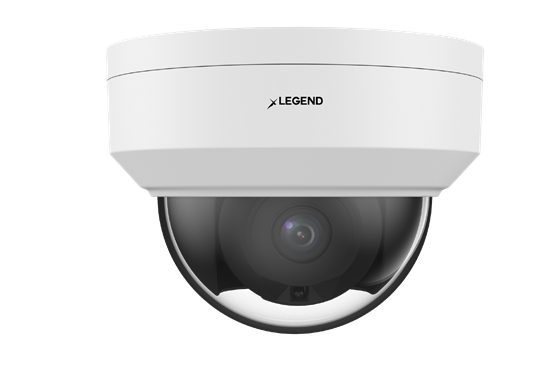

2.1 MP Vandal Proof Fixed Dome Network Camera w/IR, Audio IN/OUT, 2.8mm

Brand : LEGEND

UPC : 685225603733

PART # : INLGDO2IRWF

Introducing the Vandal Proof Fixed Dome Network Camera with IR and SD Slot, designed for high-performance surveillance. This camera features a high-quality 2MP image sensor with a 1/2.8’’ CMOS sensor, delivering exceptional clarity. True WDR (120 dB) ensures optimal image quality in the most challenging lighting conditions, while H.265+ and H.264 encoding provides efficient video compression.

Equipped with AI features like People Flow Counting and Crowd Density Monitoring, this camera enhances security with advanced analytics. Smart IR technology offers clear night vision up to 30 meters (98 feet). It supports Micro SD cards up to 256GB for extensive local storage and is NDAA compliant, ensuring adherence to strict security standards.

Multiple Features

This vandal-resistant camera offers surge protection up to 2KV and IP67 ingress protection, making it ideal for outdoor installations in harsh weather conditions. Additionally, it has an IK10 rating, which indicates high resistance to impact and vandalism.

Wide Dynamic Range

This camera offers excellent image quality in challenging lighting conditions with its 120dB true WDR technology.

2D/3D DNR Technology

Uses an anti-reflective window for enhanced infrared transmittance and utilizes advanced 2D/3D DNR technology for superior digital noise reduction.

Advanced Compression Standards

Supports advanced video compression standards including Ultra 265, H.265, H.264, and MJPEG, enabling more efficient video storage and streaming.

Image Sensor 1/2.8”, 2 Megapixel, progressive scan, CMOS

Minimum Illumination Color: 0.01 Lux (F2.0, AGC On); 0 Lux with IR on

IR Distance Distance up to 30m (98ft)

Day/Night IR-cut filter with auto switch (ICR)

Smart IR Support

White Balance Auto / Outdoor / Fine Tune / Sodium Lamp / Locked

Advanced Detection Tools Human Body Detection

Backlight Compensation Supported

Noise Reduction 2D/3D DNR

Features HLC; BLC; WDR 120dB

Scanning System Progressive

Electronic Shutter Speed Auto/Manual, 1~1/100,000 s

S/N Ratio More than 52dB

Flip Normal / Vertical / Horizontal / 180° / 90°Clockwise / 90°Anti-clockwise

Privacy Masking Up to 4 areas

OSD Up to 8 OSDs

Region of Interest Up to 8 areas

Defog Digital Defog

Lens Type Fixed Lens

Focal Length 2.8mm

Max. Aperture N/A

Viewing Angle H: 112.7°; V: 60.1°; O: 146.5°

Iris Type N/A

Pan/Tilt/Rotate Pan: 0° ~ 360°; Tilt: 0 ~ 75°; Rotate: 0 ~ 360°

DORI Distance Detect: 42.0m; Observe: 16.8m; Recognize: 8.4m; Identify: 4.2m

Compression H.265+, H.265, H.264, MJPEG

H.264 code profile Baseline profile, Main profile, High profile

Frame Rate Main Stream: 2MP (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps;CIF(352*288), Max 30fps;

Edge Storage Micro SD, up to 256GB

Network Storage ANR, NAS(NFS)

Ethernet 1 RJ45 10M/100M Base-TX Ethernet

Protocol IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/ TLS, SSH

Compatibility ONVIF (Profile S, Profile G, Profile T), API, SDK

Management Software LEGEND VMS / ARKIV

Web Browser Live view with plug-in required: Firefox 52 and below, Chrome 41 and below, IE9+ // Live view without plug-in: Firefox 58.0+, Chrome 57.0+, Edge 16+, Safari 11+

Audio Compression G.711

Two-way audio Supported

Suppression Supported

Sampling Rate 8KHZ

Intrusion Line Crossing detection, Intrusion detection, Exiting an Area detection, Enter Area detection, false alarm filtering

Statistical Analysis Support people flow counting and crowd density monitoring

Detection Motion detection, Tampering alarm, Audio detection

General Function Watermark, IP address filtering, Tampering alarm, Alarm input, Alarm output, Access Policy, ARP protection, RTSP authentication, User authentication

Audio In/Out Input: impedance 35kΩ; amplitude 2V [p-p] / Output: impedance 600Ω; amplitude 2V [p-p]

Alarm In/Out 1/1

EMC CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)

Safety CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)

Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Power Supply DC 12V±25%, PoE (IEEE 802.3af)

Working Environment -35°C to 60°C (-31°F to 140°F) / Less than 95% RH

Material Metal + Plastic

Vandal & Ingress & Surge Protection IK10; IP67; 2KV

Weight 0.99 lb (0.45kg)

Dimensions Φ108.5 x 81mm (Ø4.28” x 3.2”)
