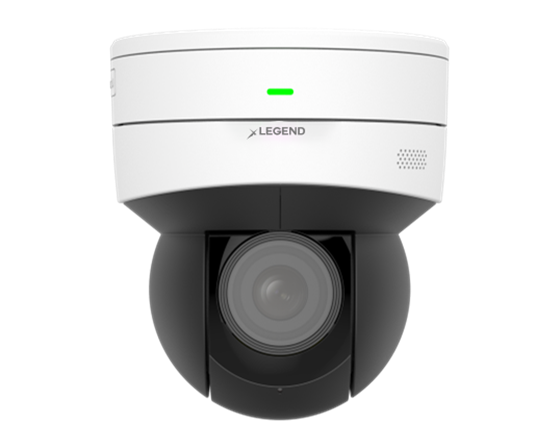

2.1 MP INTERIOR 5X PTZ IP CAMERA

Brand : LEGEND

UPC : 685225506492

PART # : INLGDI2IRWPTZ5X

We are introducing our Interior 5x PTZ IP Camera, designed to deliver exceptional performance and flexibility for indoor surveillance. With a high-quality 2MP resolution and a 1/2.7’’ CMOS sensor, this camera provides ultra-clear images, even in low-light environments.

Supporting H.265+ and H.264 encoding, it ensures efficient video compression, optimizing storage and bandwidth without compromising image quality. The camera features a Wi-Fi connection for easy installation and setup, making it a convenient choice for various indoor applications.

Advanced features include face capture with automatic selection of the best snapshots, enhancing identification accuracy. The smart intrusion prevention system supports false alarm filtering, including line crossing, intrusion, and enter/leave area detection, ensuring reliable and precise security monitoring.

Our Interior 5x PTZ IP Camera combines high image quality with intelligent features to provide comprehensive and reliable indoor surveillance, ideal for residential, commercial, and institutional settings.

Advanced Compression Standards

Supports advanced video compression standards including Ultra 265, H.265, H.264, and MJPEG, enabling more efficient video storage and streaming.

Smart IR

Provides 24-hour monitoring with day/night functionality, featuring Smart IR technology for up to 30 meters of IR distance and an optical glass window with increased light transmittance for enhanced image clarity.

Wide Dynamic Range

This camera offers excellent image quality in challenging lighting conditions with its 120dB true WDR technology.

Smart Intrusion

Smart intrusion prevention technology uses target classification to greatly reduce false alarms caused by environmental factors such as leaves, birds, and lights. This allows the system to accurately focus on detecting human and motor vehicle targets.

Image Sensor 1/2.7”, 2 megapixel, progressive scan, CMOS

IR On/Off Control Auto/Manual

Lens Type Auto aperture

DORI Detect W: 70.9 (232.5ft) / T: 247.5 (812.0ft)

DORI Observe W: 28.4 (93.0ft) / T:99.0 (324.8ft)

DORI Recognize W: 14.2 (46.5ft) / T: 49.5 (162.4ft)

DORI Identify W: 7.1 (23.3ft) / T: 24.8 (81.2ft)

Smart IR Supported

Built-in Mic Supported

Built-in Speaker Supported

WiFi Supported (IEEE802.11b/g/n)

Power Supply DC12V(±25%), PoE(IEEE 802.3at)

Focal Length 2.7 ~ 13.5mm, AF automatic focusing and motorized zoom lens

H.264 code profile Baseline profile, Main profile, High profile

Video Stream Triple

White Balance Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2

DORI Recognize W: 14.2 (46.5ft) / T: 49.5 (162.4ft)

DORI Identify W: 7.1 (23.3ft) / T: 24.8 (81.2ft)

Detection Motion detection, Audio detection, Tampering alarm

Built-in Mic Supported

Built-in Speaker Supported

WiFi Supported (IEEE802.11b/g/n)

Power Supply DC12V(±25%), PoE(IEEE 802.3at)

Scanning System Progressive

Electronic Shutter Speed Auto/Manual, 1 ~ 1/100,000s

Minimum Illumination Colour: 0.003 Lux (F1.2, AGC ON); 0 Lux with IR

S/N Ratio More than 52 dB

IR Distance Up to 30m (98 ft) IR range

Day/Night IR-cut filter with auto switch (ICR)

Features BLC / HLC / WDR(120dB)

On-Screen Display (OSD) Up to 8 OSDs

Noise Reduction 2D/3D DNR

Optical Zoom 5x

Privacy Masking Up to 24 areas

Region of Interest Supported

Defog Digital Defog

Flip Normal / Flip Vertical / Flip Horizontal / 180°

Viewing Angle H : 106.9°~30.6°; V : 56.0°~17.7°; D : 131.5°~39.8°

Wavelength 850nm

Compression H.265+ / H.265 / H.264+ / H.264 / MJPEG

Frame Rate Main Stream: 2MP (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; Third Stream: D1 (720*576), Max 30fps

Video Bit Rate 128 Kbps ~ 16 Mbps

Audio Compression G.711A / G.711U

Audio Bitrate 64 Kbps

Two-way Audio Supported

Suppression Supported

Sampling Rate 8KHZ

Smart Intrusion Prevention Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection

Basic Detection Motion detection, Ultra motion detection, Tampering alarm, Audio detection

Number of Presets 1024

General Function Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication

Patrol Preset patrol, route patrol, recorded patrol

Home Position Supported

Ethernet RJ45 10M/100M Base-TX Ethernet

Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS

Compatibility ONVIF (Profile S, Profile G, Profile T), API,SDK

Video Software Management Legend VMS, Arkiv

Storage ANR; NAS; Micro SD card up to 256GB

Security Password protection, HTTPS encryption, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF

User/Host Up to 32 users. 3 user levels: administrator, operator and common user

RS485 1

Audio In/Out 1/1

Alarm In/Out 2/1

Power Consumption Less than 15W

Working Environment -10°C to 50°C (-14°F ~ +122°F); Less than 95% RH

Material Metal

Weight 1.67 lbs (0.76kg)

Dimensions Φ129 x 143.6mm (Φ 5.1’’ x 5.7’’)

Pan Range 350°

Pan Speed 0.1°/s ~ 200°/s; Preset speed: 240°/s

Tilt Range 15° ~ 90°

Tilt Speed 0.1°/s ~ 120°/s; Preset speed: 200°/s

Preset Patrol 16 patrols, up to 64 presets for each patrol

Route Patrol 16 patrols, up to 32 actions for each patrol

Recorded Patrol 16 patrols, up to 128 actions for each patrol

Patrol Stay Time 15s~1800s

Preset Image Freeze Supported

Home Position Supported

Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above

EMC CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)

Safety CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)

RF FCC ID (FCC CFR 47 part15 C) CE RED (EN 62311: 2008, EN 300 328 V2.2.2(2019-07), EN 301489-1 V2.2.3(2019-11), ETSI EN 301 489-17 V3.2.4(2020-09))

Environnemnt CE-RoHS (2011/65/EU;(EU)2015/863);

Protection 4KV (Protection contre les surtensions)

Reset Button Supported
