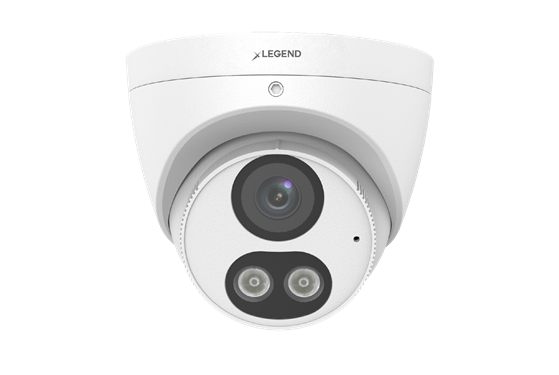

Image Sensor
1/2.8’’, 8 megapixel, progressive scan, CMOS
IR Distance
Distance up to 30M (98ft)
Lens Type
ChromaView Fixed Lens
Focal Length
2.8mm
DORI Distance
Detect: 86.9m; Observe: 34.8m; Recognize: 17.4m; Identify: 8.7m
Compression
H.265+ / H.265 / H.264 / MJPEG
Day/Night
IR-cut filter with auto switch (ICR)
Blacklight Compensation (BLC)
Support
Audio Bit Rate
64 Kbps
Sampling Rate
8KHZ
Edge Storage
Micro SD, up to 256GB
Network Storage
ANR, NAS(NFS)
Built-in Mic
Yes
LED On & Off Control
Auto/Manual
Ethernet
1 RJ45 10M/100M Base-TX Ethernet
Protocols
IPv4, IPv6,IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/ TLS, SSH
User/Host
Up to 32 users. 2 user levels: administrator and common user
Management software
LEGEND VMS, ARKIV
Frame Rate
Main Stream: 8MP (3840 x 2160) Max 20fps; 5MP (3072 x 1728) Max 30fps; 4MP (2560 x 1440) Max 30fps; 1080P (1920 x 1080) Max 30fps // Sub Stream: 1080P (1920 x 1080) Max 30fps; 720P (1280 x 720) Max 30fps; D1 (720 x 576) Max 30fps; 640 x 360, Max 30fps; 2CIF (704 x 288) Max 30fps; CIF(352 x 288) Max 30fps // Third Stream: D1 (720 x 576), Max 30fps; 640 x 360, Max 30fps; 2CIF(704 x 288), Max 30fps; CIF(352 x 288), Max 30fps
Edge Storage
Micro SD slot, up to 256 GB
Power Supply
DC 12V ± 25%, PoE (IEEE 802.3af )
Power Consumption
Less than 8W
Material
Metal + Plastic
Weight
0.44kg (0.97lb)
Dimensions
111 x 95mm (4.4” x 3.7”)
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual, 1 ~ 1/100 000s
Minimum Illumination
Colour: 0.0005 lux (F1.0, AGC ON) / 0 Lux with IR on
S/N Ratio
More than 56dB
Hightlight Compensation (HLC)
Support
Wide Dynamic Range
120dB
Suppression
Support
White Balance
Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2
Digital Noise Reduction
2D/3D DNR
Flip
Normal / Vertical / Horizontal / 180° / 90° Clockwise / 90° Anti-clockwise
Defog
Digital Defog
Privacy Masking
Up to 4 areas
On-Screen Display (OSD)
Up to 8 OSDs
Smart IR
Supported
Dewarping
Support
ROI
Up to 8 areas
Viewing Angle
H: 106.7°; V: 57.1°; O: 115.7°
Pan/Tilt/Rotate
Pan: 3° ~ 360°; Tilt: 0 ~ 80°; Rotate: 3° ~ 360°
H.264 code profile
Baseline profile, Main profile, High profile
Bit Rate
128 Kbps ~ 16 Mbps
Ethernet
1 x RJ45 10M/100M Base-TX Ethernet
Protocol
IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/ TLS, SSH
User/Host
Up to 32 users. 2 user levels: administrator and common user
Security
Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Compatibility
ONVIF (Profile S, Profile G, Profile T), API,SDK
Management Software
LEGEND VMS, Arkiv
Web Browser
Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above // Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Audio Compression
G.711
Suppression
Supported
Audio Bitrate
64 Kbps
Sampling Rate
8KHZ
Microphone
Built-in Mic
Network Storage
ANR, NAS(NFS)
Smart intrusion prevention
Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
General Function
Watermark, IP address filtering, Tampering alarm, Access policy, ARP protection, RTSP authentication, User authentication
Basic Detection
Motion detection, Ultra motion detection, Tampering alarm, Audio detection
Statistical Analysis

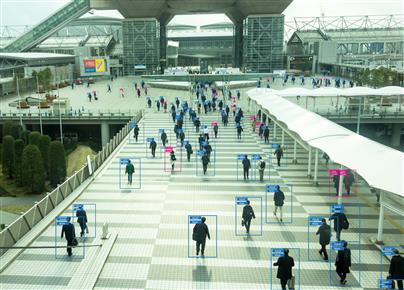

People counting, support people flow counting and crowd density monitoring
Certifications
EMC: CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014); Safety: CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01); Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006); Protection: IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
Working Environment
-30° C to +60° (-22°F ~ 140°F) / Less than 95% RH (non-condensing)
