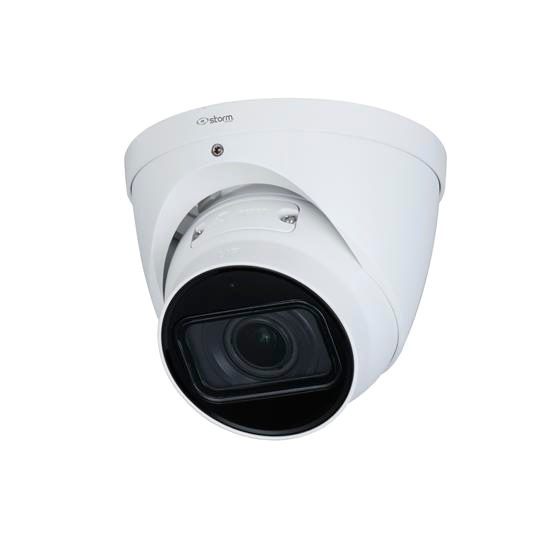

4.1 MP Auto Focus WDR 120DB Smart Network TURRET CAMERA

Brand : STORM

UPC: 685225607991

PART #: INSTO4IRWA

The 4.1 MP Auto Focus WDR Smart H.265 Turret Camera combines advanced imaging with intelligent monitoring capabilities to deliver high-quality, detailed surveillance. Featuring a 4MP, 1/3” CMOS sensor and low-light sensitivity, it captures clear footage even in challenging lighting. With H.265 codec support, the camera efficiently compresses video while maintaining exceptional image quality, streaming up to 4MP (2688 × 1520) at 30 fps.

Equipped with powerful IR LEDs, it provides up to 40 meters of infrared night vision, ensuring reliable security coverage around the clock. Intelligent detection features like intrusion and tripwire settings enhance security, with precise classification for vehicles and humans, making this turret camera ideal for modern surveillance needs.

Audio In/Out With Audio Inputs and/or Outputs

Wide Dynamic Range WDR 120dB or more

Form Factor Turret

Lens Type Auto Focus

Inputs/Outputs Without Inputs/Outputs

Megapixels 4 Megapixels

Image Sensor 1/3” 4Megapixel progressive CMOS

Effective Pixels 2688 (H) ×1520 (V)

RAM/ROM 512MB/128MB

Scanning System Progressive

Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s

Minimum Illumination 0.005 Lux at F1.5 (Color, 30IRE); 0.0005 Lux at F1.5 (B/W, 30IRE) 0 Lux (Illuminator on)

S/N Ratio More than 56 dB

IR Distance 40 m (131.2 ft)

IR LEDs 2

Day/Night Auto(ICR) / Color / B/W

Backlight Compensation BLC / HLC / WDR(120dB)

White Balance Auto / natural / street lamp / outdoor / manual / regional custom

Gain Control Auto/Manual

Noise Reduction 3D DNR

Motion Detection OFF/ON (4 areas, rectangular)

Region of Interest Yes (4 areas)

Smart Illumination Yes

Privacy Masking 4 Areas

Lens Type Motorized vari-focal

Mount Type φ14

Focal Length 2.7 mm–13.5 mm

Max. Aperture F1.5

Viewing Angle Horizontal: 104°–27° Vertical: 55° –15° Diagonal: 124° –31°

Pan / Tilt / Rotation Pan: 0°–360°; Inclinable: 0°–78°; Rotation: 0°–360°

DORI Distance Wide (2.7mm): Detect 64.0 m (210.0 ft); Observe 25.6 m (84.0 ft); Recognize 12.8 m (42.0 ft); Identify 6.4 m (21.0 ft) / Telemetry (13.5mm): Detect 222.0 m (728.3 ft); Observe 88.8 m (291.3 ft); Recognize 44.4 m (145.7 ft); Identify 22.2 m (72.8 ft)

Video Compression H.265+; H.264+; MJPEG (only supported on the sub stream)

Resolution 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Frame Rate Main Stream: 2688 × 1520 at 1 to 25/30 fps Sub stream: 704 × 576 (1 fps to 25 fps) 704 × 480 (1 fps to 30 fps) Third stream: 1280 × 720 at 1 to 25/30 fps

Bit Rate H.264: 3 Kbps–8192 Kbps H.265: 3 Kbps–8192 Kbps

Area Protector Tripwire; intrusion (Recognition of human and vehicle)

Intelligent Search Work together with the STORM Smart NVR to perform refined intelligent search, event extraction, and merging to event videos

Alarm Event No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection; scene changing; intensity change; tripwire; intrusion; Smart Motion Detection

Built-in Microphone Yes

Audio Compression G.711a; G.711Mu; G726

Network Ethernet RJ-45 (10/100 Base-T)

SDK & API Yes

Cyber Security Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP / MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade

Storage FTP; SFTP; NAS; Micro SD Card up to 256 GB

Management Software STORM, STORM+, ARKIV

Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP

Compatibility CGI; P2P; Milestone; Genetec

Smart Phone iOS, Android

Power Supply 12V DC/PoE (802.3af)

Power Consumption Less than 8.3W

Working Environment -30°C to +60°C (-22°F to +140°F); Less than 95% RH

Protection IP67

Dimensions 108.3 mm × Φ122 mm (4.3” × Φ4.8”)

Weight 1.8 lbs (0.83 kg)

INSX152 - Mini Pole Mount Bracket

PART #: INSX152 View more

INSX203 - Water proof wall mount Bracket

PART #: INSX203 View more

INSX130 - Junction box

PART #: INSX130 View more

INSX106 - Mount Adapter

PART #: INSX106 View more

Ceiling Mount Bracket of Mini Dome & Eyeball Camera

PART #: INSX220C View more

Specifications Sheet

18-08-2021 — INSTO4IRWA 4.1MP Auto Focus WDR H.265 Turret Camera 2021.pdf
