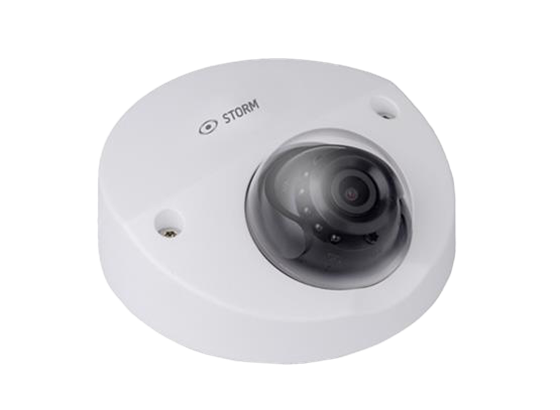

4.1 MP Smart WEDGE Network Camera W/IR, 120DB, w/Audio, Fixed 2.8mm

Brand : STORM

UPC: 685225606574

PART #: INSWDO4IRWF

The 4.1MP Smart H.265 Wedge Camera combines high-quality imaging and advanced detection in a compact, durable design. With a 4MP CMOS sensor, this camera captures clear video at 2688 × 1520 resolution and 30 fps, even in low-light settings. Enhanced with H.265 compression, it achieves efficient data usage while preserving video quality.

Featuring built-in IR LEDs with a 30-meter range, this camera provides nighttime visibility and supports intelligent detection capabilities such as intrusion and tripwire, allowing precise classification of vehicles and people. Equipped with audio and an SD slot for onboard storage, it offers a complete solution for security monitoring.

Wide Dynamic Range WDR 120dB or more

Audio In/Out With Audio Inputs and/or Outputs

Lens Type Fixed

Form Factor Dome

Inputs/Outputs Without Inputs/Outputs

Megapixels 4 Megapixels

Image Sensor 1/3” 4Megapixel progressive scan CMOS

Effective Pixels 2688 (H) × 1520 (V)

RAM/ROM 512MB/128MB

Scanning System Progressive

Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s

Minimum Illumination 0.005 Lux at F1.6 (Color, 30IRE); 0.0005 Lux at F1.6 (B/W, 30IRE) 0 Lux (Illuminator on)

S/N Ratio More than 56 dB

IR Distance 30 m (98.4 ft)

IR LEDs 8

Day/Night Auto(ICR) / Color / B/W

Backlight Compensation BLC / HLC / WDR 120dB

White Balance Auto / natural / street lamp / outdoor / manual / regional custom

Gain Control Auto/Manual

Noise Reduction 3D DNR

Motion Detection OFF/ON (4 areas, rectangular)

Region of Interest Yes (4 areas)

Smart Illumination Yes

Privacy Masking 4 Areas

Lens Type Fixed

Mount Type M12

Focal Length 2.8mm

Max. Aperture F1.6

Viewing Angle Horizontal: 103.0° Vertical: 55.0° Diagonal: 122.0°

Pan / Tilt / Rotation Pan: 0°–355°; Tilt: 0°–65°; D: 0°–355°

DORI Distance Detect: 56.0 m (183.7 ft); Observe: 22.4 m (73.5 ft); Recognize: 11.2 m (36.8 ft); Identify: 5.6 m (18.4 ft)

Video Compression H.265+; H.264+; MJPEG (pris en charge uniquement sur le flux secondaire)

Resolution 4M P(2688 × 1520); 3MP (2304 × 1296); 1080p (1920 × 1080); 1.3MP (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Frame Rate Main Stream: 2688 × 1520 at 1 to 25/30 fps Sub stream: 704 × 576 (1 fps to 25 fps) 704 × 480 (1 fps to 30 fps) Third stream: 1280 × 720 at 1 to 25/30 fps

Bit Rate H.264: 3 Kbps–8192 Kbps H.265: 3 Kbps–8192 Kbps

Area Protector Tripwire; intrusion (Recognition of human and vehicle)

Intelligent Search Work together with the STORM Smart NVR to perform refined intelligent search, event extraction, and merging to event videos

Built-in Mic Yes

Audio Compression G.711a; G.711Mu; G726

Alarm Event No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection; scene changing; intensity change; tripwire; intrusion; Smart Motion Detection

Ethernet RJ-45 (10/100 Base-T)

SDK & API Yes

Cyber Security Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP / MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade

Storage FTP; SFTP; NAS; Micro SD Card up to 256 GB

Management Software STORM, STORM+, ARKIV

Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP

Compatibility CGI; P2P; Milestone; Genetec

Maximum User Access 20

Smart Phone iOS, Android

Power Supply 12V DC/PoE (802.3af)

Power Consumption Less than 5.7W

Working Environment -40°C to +60°C (-40°F to +140°F); Less than 95% RH

Protection IP67, IK10

Dimensions 55 mm × Φ108.9 mm (2.2” × Φ4.3”)

Weight 1.1 lbs (0.52 kg)
