2.1 MP RECESSED 32X PTZ

Brand : STORM

UPC: 685225604877

PART #: INSDR2PTZ32X

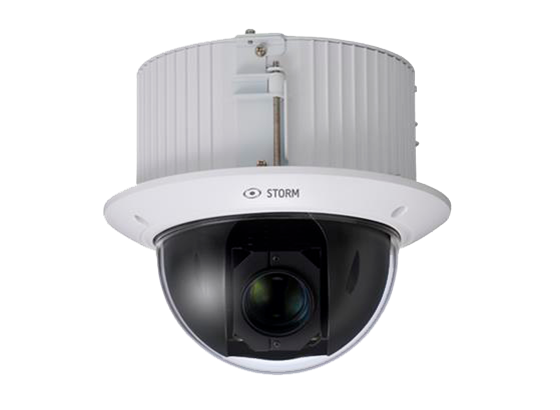

The 2.1MP Recessed PTZ 32x with SD slot is a cutting-edge surveillance camera designed for high-performance security applications. Featuring a 1/2.8" 2Megapixel STARVIS™ CMOS sensor, this camera delivers exceptional image quality, even in low-light conditions. Its powerful 32x optical zoom allows for detailed close-ups without compromising on clarity, making it ideal for extensive coverage areas.

With a maximum frame rate of 50/60 fps at 1080P, this camera ensures smooth and clear video capture, crucial for real-time monitoring. The integration of deep-learning-based auto tracking and area protector enhances its ability to intelligently track and monitor specific areas, improving overall security management. Additionally, Smart Motion Detection provides accurate detection of movement, minimizing false alarms and ensuring reliable surveillance.

Designed for robust and versatile use, the camera supports PoE+ for simplified installation and power management. Its IK10 rating ensures high resistance to vandalism, making it suitable for high-risk environments. The inclusion of an SD slot offers convenient local storage options, further enhancing its functionality and reliability in demanding security applications.

Inputs/Outputs With Inputs/Outputs

Wide Dynamic Range WDR 120dB or more

Audio In/Out With Audio Inputs and/or Outputs

Megapixels 2 Megapixels

Form Factor PTZ

Image Sensor 1/2.8” 2 Megapixel progressive scan STARVIS™ CMOS

Effective Pixels 1920(H) x 1080(V)

RAM/ROM 1GB / 4GB

Scanning System Progressive

Electronic Shutter Speed 1/1s~1/300,000s

Minimum Illumination Color: 0.005 Lux at F1.35; B/W: 0.0005 Lux at F1.35

S/N Ratio More than 55dB

Day/Night Auto(ICR) / Color / B/W

Blacklight Compensation BLC / HLC / WDR 120dB

White Balance Auto / Indoor / Outdoor / Tracking / Manual / Natural light / Street lamp

Gain Control Auto/Manual

Noise Reduction 2D/3D

Digital Zoom 16x

Motion Detection Supported

Region of Interest Supported

Privacy Masking Up to 24 areas

Defog Electronic

Focal Length 4.9 mm to 156 mm

Max. Aperture F1.35 – F4.4

Viewing Angle H: 62.8°–2.2°; V: 36.7°–1.3°; D: 69.2°–2.6°

Optical Zoom 32x

Focus Control Auto / Semi-Auto / Manual

DORI Distance Detect 2152 m (7060.37 ft); Observe 850 m (2788.71 ft); Recognize 430 m (1410.76 ft); Identify 215 m (705.38 ft)

Compression H.265+; H.265; H.264+; H.264; H.264B; H.264M; H.264H; MJPEG (Sub Stream)

Resolution 1080P (1920 × 1080); 1.3M (1280 × 960); 720P (1280 × 720); D1 (704 × 576); CIF (352×288)

Frame Rate Main stream: 1080P / 1.3MP / 720P (1–50/60 fps); Sub Stream 1: D1/CIF (1–25/30 fps); Sub Stream 2: 720P (1–25/30 fps)

Bit Rate H.264: 3 Kbps–20480 Kbps; H.265: 3 Kbps–20480 Kbps

Audio Compression G.711a; G.711Mu; G.726; AAC; MPEG2-Layer2; G722.1; G729; G723

Audio In/Out 1/1 (Line Out; bare wire)

Two-way Audio Supported

Alarm In/Out 2/1

Pan/Tilt Range Pan: 0°–360° endless; Tilt: 0°+90°, autoflip 180

Manual Control Speed Pan: 0.1°/s–350°/s; Tilt: 0.1°/s–250°/s

Preset Speed Pan: 500° /s; Tilt: 500° /s

Presets 300

PTZ Mode 5 Patterns, 8 Tours, 5 Scans

Speed Setup Human-oriented focal Length / speed adaptation

Idle Motion Preset / Tour / Pattern / Scanning

Event Triggers Motion detection, video tampering, scene changing, Network disconnection, IP address conflict, illegal access, and storage anomaly

Smart Capture Supports human, motor vehicle and non-motor vehicle image capture.

Area Protector Tripwire and intrusion. Supports alarm triggering by target types. Supports filtering false alarms caused by animals, bright lights, etc

Face Detection Supported

Auto Tracking Supported

Smart Motion Detection Supported

Ethernet RJ-45 (10/100Base-T)

Protocol IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3 (MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP

Storage FTP; NAS; Micro SD card up to 256GB

Video Management Software STORM, STORM+, ARKIV

Compatibility CGI

Maximum User Access 20 Users

Smart Phone iOS, Android

Power Supply DC24V/2.5A; PoE+ (802.3at)

Power Consumption Basic: 10W; Max: 16W

Working Environment –30°C to +60°C (–22°F to +140°F); Less than 95% RH

Protection IK10; 6000V lightning proof; surge protection; voltage transient protection

Dimensions 186 mm x 253 mm (7.32” x 9.96”)

Weight 8.16 lbs (3.7kg)

Specifications Sheet

21-02-2022 — INSDR2PTZ32X 2.1MP Recessed PTZ 32x with SD slot.pdf
