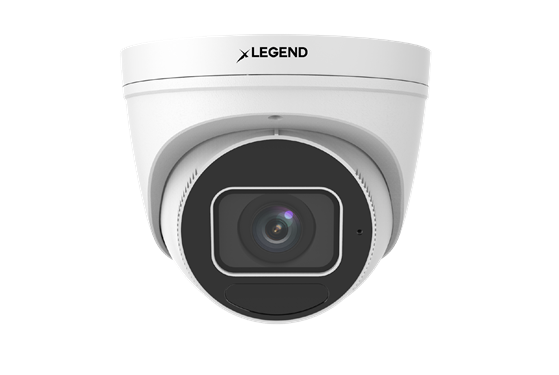

8.1 MP Vandal Proof Motorized Lens Turret Network Camera w/IR,

Brand : LEGEND

UPC : 685225601074

PART # : INLGTO4KIRWA

Introducing our AI 8MP Vandal Proof Motorized Turret Network Camera with IR and SD Slot, engineered for superior performance and durability in any environment. This camera features a high-resolution 8MP image sensor with a 1/2.8’’ CMOS sensor, delivering exceptional image clarity.

Equipped with Starlight technology, the camera provides ultra-high image quality in low-light conditions, ensuring clear and detailed surveillance at all times. Supporting H.265+ and H.264 encoding, it optimizes data compression for efficient storage and bandwidth usage.

With 120dB true WDR technology, the camera excels in diverse lighting conditions, offering clear images even in challenging environments. Smart IR technology extends night vision up to 40 meters (131 feet), providing reliable monitoring around the clock.

Advanced AI features include People Flow Counting and Crowd Density Monitoring, enhancing security through intelligent analytics. The camera supports Micro SD cards up to 256GB, providing ample local storage options.

Designed to withstand vandalism, this robust camera ensures long-lasting durability and reliability, making it an ideal choice for comprehensive and intelligent surveillance solutions.

Smart IR

This advanced security camera is equipped with smart IR, featuring an impressive 40m (131ft) IR distance and automatic focusing motorized zoom lens.

Advanced Algorithms

Our People Flow Counting and Crowd Density Measurement system is designed to accurately count and monitor crowds, providing real-time data to enhance safety and security measures. The technology uses advanced algorithms to analyze and interpret video footage, making it an invaluable tool for crowd management in various settings.

Smart Intrusion

Smart intrusion prevention technology uses target classification to greatly reduce false alarms caused by environmental factors such as leaves, birds, and lights. This allows the system to accurately focus on detecting human and motor vehicle targets.

Form Factor Turret

Megapixels 8 Megapixels

Image Sensor 1/2.8”, 8.0 megapixel, progressive scan, CMOS

Minimum Illumination Colour: 0.0025 lux (F1.6, AGC ON), 0 lux with IR on

Wavelength 850nm

DORI Distance Detect: 86.9m(W), 372.4(T); Observe: 34.8m(W), 149(T); Recognize: 17.4m(W), 74.5(T); Identify: 8.7m(W), 37.2(T)

Compression H.265+ / H.265 / H.264 / MJPEG

Frame Rate Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps. Sub Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps. Third Stream: D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps.

Defog Digital Defog

Video Stream Triple

Flip Normal / Flip Vertical / Flip Horizontal / 180°/ 90°Clockwise / 90°Anti-clockwise

User/Host Up to 32 users. 3 user levels: administrator, common user and operator

IR On/Off Control Auto/Manual

Focal Length 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens

Safety CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)

Environnemnt CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Protection IP67 (IEC 60529:1989 + AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) 6KV (Surge Protection)

H.264 code profile Baseline profile, Main Profile, High Profile

Statistical Analysis People counting, support people flow counting and crowd density monitoring

Basic Detection Motion detection, Ultra motion detection, Tampering alarm, Audio detection

General Function Watermark, IP address filtering, alarm input, alarm output, access Policy, ARP protection, RTSP authentication, user authentication

Scanning System Progressive

Electronic Shutter Speed Auto/Manual, 1 ~ 1/100,000s

S/N Ratio More than 56dB

IR Range Up to 40m/131ft

Wide Dynamic Range 120dB

Day/Night IR-cut filter with auto switch (ICR)

Audio Bit Rate 64 Kbps

White Balance Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto 2

Noise Reduction 2D/3D DNR

Features HLC; BLC; Dewarping

Privacy Mask Up to 4 areas

On-Screen Display (OSD) Up to 8 OSDs

Region of Interest Up to 8 areas

Smart IR Supported

EMC CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)

Lens Type Automatic Focusing and Motorized Zoom lens

Viewing Angle H: 107.4°~ 29.2°; 54.2°~ 16.3°; D: 111.0°~33.1°

Pan/Tilt/Rotate Pan: 0° ~ 360°; Tilt: 0 ~ 75°; Rotate: 0° ~ 360°

Video Bit Rate 128 Kbps~16 Mbps

Smart Intrusion Prevention Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection

Ethernet 1 RJ45 10M/100M Base-TX Ethernet

Security Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF

Management Software LEGEND VMS, Arkiv

Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above; Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above

Protocols IPv4, IPv6,IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/ TLS, SSH

Compatibility ONVIF (Profile S, Profile G, Profile T), API, SDK

Audio Compression G.711

Suppression Supported

Sampling Rate 8KHZ

Built-in Mic Yes

Edge Storage Micro SD slot, up to 256 GB

Network Storage ANR, NAS(NFS)

Power Supply DC 12V ± 25%, PoE (IEEE 802.3af)

Power Consumption Less than 9W

Working Environment -30° C to +60° C / Less than 95% RH

Power Interface Ø 5.5mm coaxial power plug

Weight 0.69kg (1.52lb)
