TSEC COMBO 13.56MHz / 125KHz Card Reader - Mini Size - Black

Brand : ICT

UPC: 685225105633

PART #: PRX-TSEC-MINI-B

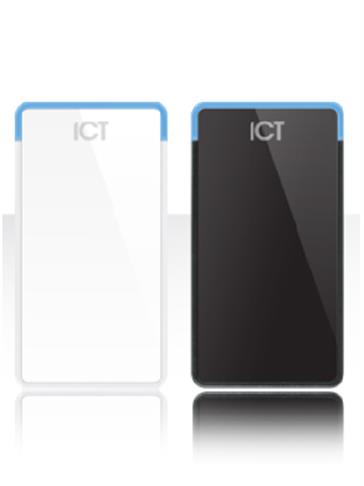

The tSec Mini Reader offers a versatile and compact RFID solution, designed to meet the needs of modern access control systems. Compatible with all Wiegand-capable control systems and incorporating RS-485 communication, this reader supports rapid deployment in a variety of environments. It features multi-technology capabilities, allowing for the use of 13.56MHz DESFire, MIFARE, and 125kHz cards, all from a single device. Available in black or white, the tSec Mini Reader can be tailored to suit your installation needs and aesthetic preferences.

With encrypted RS-485 or standard Wiegand connections, the reader ensures secure and reliable communication. It also supports Bluetooth® and NFC credential reading, adding flexibility and convenience to your access control options. The reader's configurable LED strip offers two-color control (blue and green) via external wiring and 16 selectable colors for Protege function codes when connected via RS-485.

Designed for both indoor and outdoor use, the tSec Mini Reader features a fully encapsulated design with an IP65 environmental rating, ensuring durability and protection against the elements. Despite its powerful capabilities, the reader maintains a small, discreet size, making it an unobtrusive yet effective addition to any security system.

Operating Voltage 12VDC (9.5 to 14VDC)

Operating Current 203mA (peak, reading)

Card Read Range Mifare 60mm (2.36")*; 125kHz Clamshell 40mm (1.57”)^; DESFire EV1 ISO 15mm (0.6")*

Tag Read Range MIFARE 30mm (1.2")*; DESFire EV1/EV2 ISO 6mm (0.23")*; 125kHz 25mm (0.98")^

Wiegand Interface Multiple format 26 or 34 Bit data 0 and data 1, card defined.

Frequency 13.56 MHz ISO/IEC 14443 Type A*; 125kHz pulse width modulated^

Multi Conductor Cable Wiegand: 22Awg alpha 5196, 5198, 18Awg alpha 5386, 5388. Max Distance 150m (492ft); Module comms/RS485: Belden 9842 or equivalent. Max distance 900m (3000ft)

OSDP Communication OSDP standard 2.1.5 with Secure Channel Protocol ** / ***

NFC Read Range Up to 60mm***

NFC (Near-field communication) Electronic credential transmission technology Android 4.4 or above, with phones which support ISO7816-4; Proprietary Secured DESFire credential; Credential is AES-256 (NIST certified AES algorithm); Reader App Version: 1.04.175 and above; Credentials can be distinguished by unique site code and card number

NFC Wireless Device Protege Mobile 1.0.x

Environment IP Rating IP65

Operating Temperature UL/ULC -35° to 66°C (-31° to 151°F) : EU EN -40° to 70°C (-40° to 158°F)

Storage Temperature -10° to 85°C (14° to 185°F)

Mean Time Between Failures (MTBF) 520,834 hours (calculated using RFD 2000 (UTE C 80-810) Standard)

Reader Dimensions (H x W x D) 85 x 46 x 17mm (3.35 x 1.81 x 0.67”)

tSec Mini Reader Net Weight: 80g (2.8oz); Gross Weight: 100g (3.5oz)

Explanatory Footnotes *Applies to MIFARE/DESFire and Multi-Technology models only; ^Applies to 125kHz and Multi-Technology models only; **Applies to 125kHz and Multi-Technology models only; ***Applies to 125kHz and Multi-Technology models only
