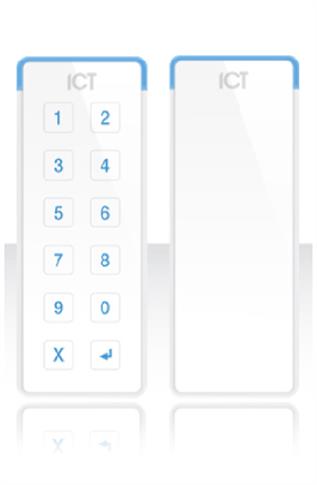

TSEC STD COMBO 13.56MHz / 125KHz Card Reader - Mullion Mount Size - White

Brand : ICT

UPC: 685225106586

PART #: PRX-TSEC-STD-W

The tSec Standard Reader offers a versatile and secure multi-technology RFID solution, compatible with all Wiegand-capable control systems and featuring RS-485 communication. Supporting both 13.56MHz (DESFire and MIFARE) and 125kHz card technologies, this reader is ideal for diverse environments. It is available in black or white, to suit any installation's needs and decor.

Key features include encrypted RS-485 communication with OSDP secure channel, NFC credential reading, and a configurable LED strip. The reader provides a read range of up to 60mm (2.36") with proximity ISO cards and is fully encapsulated with an IP65 rating, ensuring reliable performance in both indoor and outdoor settings.

Readers Readers

Operating Voltage 12VDC (9.5 to 14VDC)

Operating Current 254mA (peak, reading)

Card Read Range Mifare 60mm (2.36")*; 125kHz Clamshell 40mm (1.57”)^; DESFire EV1 ISO 15mm (0.6")*

Tag Read Range Mifare 35mm (1.18")*; 125kHz 25mm (0.98”)^; DESFire EV1 ISO 6mm (0.23")*

Wiegand Interface Multiple format 26 or 34 Bit data 0 and data 1, card defined.

Frequency 13.56 MHz ISO/IEC 14443 Type A*; 125kHz pulse width modulated^

Multi Conductor Cable Wiegand: 22Awg alpha 5196, 5198, 18Awg alpha 5386, 5388. Max Distance 150m (492ft); Module comms/RS485: Belden 9842 or equivalent. Max distance 900m (3000ft)

OSDP Communication OSDP standard 2.1.5 with Secure Channel Protocol ** / ***

NFC Read Range Up to 60mm***

NFC (Near-field communication) Electronic credential transmission technology Android 4.4 or above, with phones which support ISO7816-4; Proprietary Secured DESFire credential; Credential is AES-256 (NIST certified AES algorithm); Reader App Version: 1.04.175 and above; Credentials can be distinguished by unique site code and card number

NFC Wireless Device Protege Mobile 1.0.x

Environment IP Rating IP65

Operating Temperature UL/ULC -35° to 66°C (-31° to 151°F) : EU EN -40° to 70°C (-40° to 158°F)

Storage Temperature -10° to 85°C (14° to 185°F)

Mean Time Between Failures (MTBF) 520,834 hours (calculated using RFD 2000 (UTE C 80-810) Standard)

Reader Dimensions (H x W x D) 117 x 46 x 18mm (4.61 x 1.81 x 0.71")

Reader with Surface Mount Box (H x W x D) 117 x 46 x 51mm (4,61 x 1,81 x 2,00")

tSec Standard Reader Net Weight: 110g (3.89oz); Gross Weight: 130g (6.7oz)

tSec Standard Reader Surface Mount Box Net Weight: 40g (1.4oz); Gross Weight: 60g (2.1oz)

Explanatory Footnotes *Applies to MIFARE/DESFire and Multi-Technology models only; ^Applies to 125kHz and Multi-Technology models only; **Applies to 125kHz and Multi-Technology models only; ***Applies to 125kHz and Multi-Technology models only
