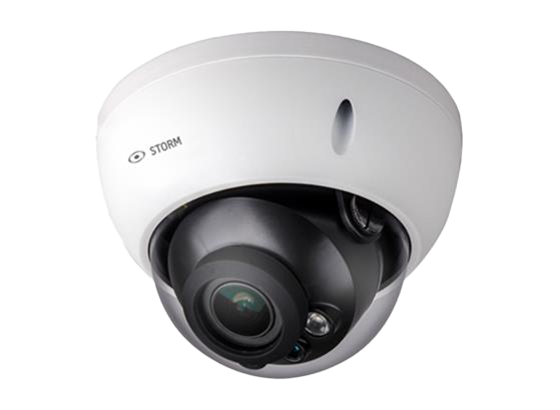

5MP UNIVERSAL AUTO-FOCUS DOME

Brand : STORM

UPC: 685225609827

PART #: INSDO5IRWUA

The 5MP Universal Auto-Focus Dome Camera is a versatile surveillance solution featuring a 2.7-13.5mm motorized lens and a maximum frame rate of 25 fps at 5MP resolution in a 16:9 video output format. This camera supports multiple video formats, including CVI, CVBS, AHD, and TVI, ensuring compatibility with various systems.

Equipped with Starlight technology, 120 dB true WDR (Wide Dynamic Range), and 3D NR (Noise Reduction), the camera delivers clear, detailed images even in challenging lighting conditions. Its Smart IR technology provides optimal night vision with an IR illumination distance of up to 30 meters.

Built for durability, the camera is rated IP67 for weather resistance and IK10 for impact protection, making it suitable for both indoor and outdoor use. Operating on a 12V DC power supply with a ±30% tolerance, it ensures stable and reliable performance. Its universal format and robust features make it an ideal choice for various security applications.

Form Factor Dome

Wide Dynamic Range WDR 120dB or more

Audio In/Out Without Audio In/Out

Lens Type Auto Focus

Inputs/Outputs Without Inputs/Outputs

Megapixels 5 Megapixels

Image Sensor 1/2.7” 5 Megapixel progressive CMOS

Effective Pixels 2880 (H) × 1620 (V)

Scanning System Progressive

Electronic Shutter Speed PAL: 1/3 s–1/100,000 s; NTSC: 1/4 s–1/100,000 s

Minimum Illumination 0.001 Lux / F1.6; 30IRE; 0 Lux IR on

S/N Ratio More than 65 dB

IR Distance Up to 30 m (98.4 ft)

IR LEDs 2

Day/Night Auto switch by ICR

Backlight Compensation BLC / HLC / HLC-Pro / WDR 120dB

White Balance Auto/Manual

Gain Control Auto/Manual

Noise Reduction 3D NR

Smart IR Yes

Digital Zoom 4x

Defog Electronic defog

Lens Type Motorized Lens

Focal Length 2.7 mm–13.5 mm

Max. Aperture F1.6

Viewing Angle Horizontal: 31.4°–113°; Vertical: 17.6°–58°; Diagonal: 36°–138°

Pan/Tilt/Rotation Pan: 0° ~ 355°; Tilt: 0° ~ 75°; Rotation: 0° ~ 355°

DORI Distance Detect: 64.0 m (210.0 ft); Observe: 25.6 m (84.0 ft); Recognize: 12.8 m (42.0 ft); Identify: 6.4 m (21.0 ft)

Frame Rate PAL: 5M at 25 fps; 4M at 25 fps; 1080p at 25 fps; NTSC: 5M at 25 fps; 4M at 30 fps; 1080p at 30 fps; PAL: 4M at 25 fps; NTSC: 4M at 30 fps; PAL: 4M at 25 fps; NTSC: 4M at 30 fps; PAL: 960H; NTSC: 960H

Resolution 5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 × 1080); 960H (960 × 576/960 × 480)

Video Output Video output choices of CVI / TVI / AHD / CVBS by one BNC port

Power Supply 12V ±30% DC

Power Consumption Less than 6.6W

Working Environment –30°C to +60°C (–22°F to +140°F); Less than 95% (non-condensation)

Protection IP67; IK10

Dimensions φ122 mm × 88.9 mm (φ4.8” × 3.5”)

Weight 1.40 lbs (0.64 kg)

INSX203 - Water proof wall mount Bracket

PART #: INSX203 View more

INSX137 - Junction box

PART #: INSX137 View more

INSX152 - Mini Pole Mount Bracket

PART #: INSX152 View more

INS200W - Camera Rain cover

PART #: INSX200W View more

HDCVI BALUN 1 PAIR

PART #: INSXBALUN View more

Ceiling Mount Bracket of Mini Dome & Eyeball Camera

PART #: INSX220C View more

Specifications Sheet

01-03-2023 — INSDO5IRWUA 5MP Universal Auto-Focus Dome 2021.pdf
