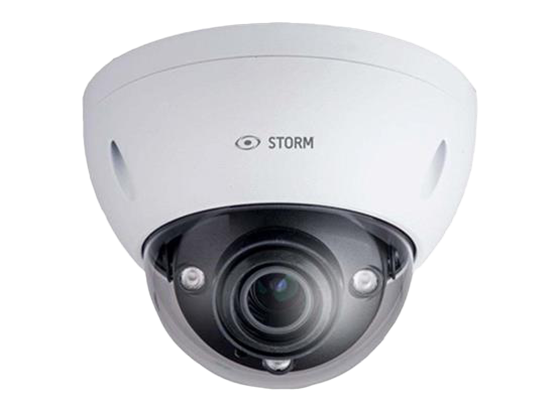

2.1MP 1080P HDCVI Auto-Focus Dome W/IR

Brand : STORM

UPC: 685225603481

PART #: INSDO2IRUA

The 2.1MP Universal Motorized Dome Camera with IR is a versatile surveillance solution designed for flexibility and durability. It features a 2.7 mm to 12 mm motorized varifocal lens, allowing for adjustable focus and zoom to suit various monitoring needs. The camera supports multiple video formats, including CVI, CVBS, AHD, and TVI, making it universally compatible with different systems.

Equipped with Smart IR technology, the camera provides clear night vision with a maximum IR length of 30 meters, ensuring reliable performance in low-light conditions. It boasts an IP67 rating for water and dust resistance and an IK10 rating for impact protection, making it suitable for both indoor and outdoor use. Powered by DC12V, this robust and adaptable camera is ideal for diverse security applications.

Form Factor Dome

Inputs/Outputs Without Inputs/Outputs

Audio In/Out Without Audio In/Out

Megapixels 2 Megapixels

Wide Dynamic Range WDR less than 120dB

Image Sensor 1/2.7” 2 Megapixels progressive scan CMOS

Effective Pixels 1920(H) × 1080(V)

Scanning System Progressive

Electronic Shutter Speed PAL: 1/25~1/100,000s; NTSC: 1/30~1/100,000s

Minimum Illumination 0.02 Lux / F1.7, 30IRE, 0 Lux IR on

S/N Ratio More than 65 dB

IR Distance Up to 30m (98feet)

Viewing Angle H: 105.9°~33.4°

IR LEDs 2

Day/Night Auto switch by ICR

Backlight Compensation BLC / HLC / DWDR

White Balance Auto/Manual

Gain Control Auto/Manual

Noise Reduction 2D NR

Electronic Defog Yes

Mirror image Yes

Privacy masking 8 area, rectangle

Smart IR Yes

Lens Type Motorized varifocal lens

Mount Type Board-in

Focal Length 2.7mm - 12mm

Max. Aperture F1.7

Viewing Angle Diagonal: 38°– 125°; Horizontal: 33°–102°; Vertical: 19°– 53°

Pan/Tilt/Rotation Pan: 0° ~ 355°; Tilt: 0° ~ 75°; Rotation: 0° ~ 355°

DORI Distance Wide (2.7mm): Detect 49.7 m (163.1 ft); Observe 19.9 m (65.3 ft); Recognize 9.9 m (32.5 ft); Identify 5 m (16.4 ft) / Telemetry (12mm): Detect 82.8 m (271.7 ft); Observe 33.1 m (108.6 ft); Recognize 16.6 m (54.5 ft); Identify 8.3 m (27.2 ft)

Frame Rate CVI: 1080P at 25/30fps; 720P at 25/30fps; 720P at 50/60fps; AHD: 1080P at 25/30fps; 720P at 25/30fps; TVI: 1080P at 25/30fps; 720P at 25/30fps; 720P at 50/60fps; CVBS: 960H

Resolution 1080P (1920×1080); 720P (1280×720); 960H (960× 576/960×480)

Video Output Video output choices of CVI / TVI / AHD / CVBS by one BNC port

Power Supply 12V ±30% DC

Power Consumption Less than 6.3W

Working Environment -30°C to +60°C (-22°F to +140°F) / Less than 95% RH

Protection IP67; IK10

Dimensions Φ122mm × 88.9mm (Φ4.8” × 3.5”)

Weight 1.54 lbs (0.7kg)

INSX137 - Junction box

PART #: INSX137 View more

INSX203 - Water proof wall mount Bracket

PART #: INSX203 View more

INSX152 - Mini Pole Mount Bracket

PART #: INSX152 View more

HDCVI BALUN 1 PAIR

PART #: INSXBALUN View more

UNIVERSAL CAMERA FORMAT CONVERTOR

PART #: INSXUFC View more

INS200W - Camera Rain cover

PART #: INSX200W View more

INSX106 - Mount Adapter

PART #: INSX106 View more

Ceiling Mount Bracket of Mini Dome & Eyeball Camera

PART #: INSX220C View more

Specifications Sheet

03-03-2022 — INSDO2IRUA 2MP Universal Motorized Lens Dome Camera with IR 2021.pdf
