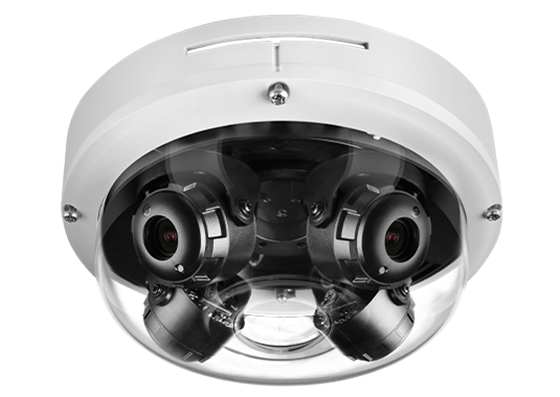

NDAA-compliant 360-degree Multi-Sensor Vandal-Proof Camera with 4 x 5MP AutoFocus Lenses

Brand : INAXSYS
UPC: 685225103530
PART #: INXDO20360IRWA

Introducing our NDAA-compliant 360-degree MultiLens Vandal-Proof Camera, equipped with four 5MP AutoFocus lenses (2.8-8mm, Flexible sensor positioning with magnets). This advanced surveillance solution boasts a true Wide Dynamic Range (WDR) at 120dB, ensuring crystal-clear image quality in various lighting conditions.

With an IK10 vandal resistance rating and IP67 weatherproofing, this camera is designed to withstand harsh environments. Additionally, it supports Power over Ethernet Plus (PoE+) for simplified installation and efficient power management.

Please note that this camera operates exclusively using ONVIF standards for seamless integration with your existing security infrastructure. Trust in this cutting-edge technology to enhance your surveillance capabilities with reliability and precision.

Image Sensor 1/2.8” 5.69MP CMOS; Flexible sensor positioning with magnets
Channels 4
Total Pixel 2704(H) x 2104(V)
Max Resolution 2592(H) x 1944(V)
Min. Illumination Color: 0.1 Lux; BW: 0.05 Lux
Only installer Video Output 1 [CVBS 1.0V p-p (75Ohms)]
S/N (signal/noise) Ratio 50dB
Scanning Mode Progressive Scan
Focal Length 2.8mm - 8mm
Aperture F1.6
Lens Type Motorized Lens
IRIS Type Auto Exposure
Horizontal Angle D: 64 - 119 / H:51 - 93 / V: 39 - 68
Pan / Tilt / Zoom Optical Zoom: 2.8x
Shutter Speed Auto / Manual (1/15 - 1/32,000); Anti-Flicker; Slow Shutter
Auto Gain Control Auto
Day & Night TDN (True Day & Night)
Digital Noise Reduction Reduction 3D DNR
Wide Dynamic Range 120dB or above (2x)
LEDs Non-IR
LED Distance No
Privacy Zone Yes
Function Motion Detection; Mirror & Flip
Video Compression H.265; H.264; MJPEG
Resolution H.265: 2592x1944 / 2560x1440 / 1920x1080 / 704x576 / 640x480 (4ch) H.264: 2592x1944 / 2560x1440 / 1920x1080 / 704x576 / 640x480 (4ch) MJPEG: 1920x1080 / 1280x720 / 800x600 / 768x432 / 704x576 (4ch)
Intelligent Codec Yes
Multiple Profile Streaming Performance 4 Triple Streaming (3rd only MJPEG)
Video BitRate 100Kbps-10Mbps
BitRate Control Multi Streaming CBR/VBR at H.265 (Controllable Frame Rate and Bandwidth)
Video BitRate extra comment Multi-Rate for preview and Recording
Special Feature Dynamic Region of Interest
Audio Compression G.711 ulaw
Audio In/Out 1 Line [1.0Vms, 3K ohm] / 1 Line
Alarm In/Out 1 Line/1 Line
Microphone No
Event Trigger Motion Alarm, Network Disconnection, Temperature Critical, Illegal Login, Schedule, Sensor Detection
Event Notification FTP; E-mail; Alarm Out; SD Card
Ethernet RJ45 (1000Base-T(1Gbps))
Protocol TCP/IP; UDP; AutoIP; TRP(UDP/TCP); RTSP; NTP; HTTP; HTTPS; SSL; DNS; DDNS; DHCP; FTP; SMTP; ICMP; SNMPv1/v2/v3(MIB-2); ONVIF
Security HTTPS(SSL); IP Filtering; 802.1x; Digest Authentication
Application Programming CGI; API; ONVIF
Web Viewer MS Edge; Google Chrome
VMS Arkiv
Edge Storage MicroSD; MicroSDHC; MicroSDXC
SD Card Socket 4
Power Supply Adaptor is not included; DC12V; PoE IEEE 802.3 bt Class5 // DC Max: 28W; PoE Max: 31W
Operating Temperature -20°C to 50°C / 10-90% RH (Non-Condensing)
Certification FCC; CE; ROHS; UL
Material Aluminum-Die Casting
IP & IK IP67, IK10
Color White
Dimensions 210mm x 92mm
Weight 1.9kg

XLGBC15NP - Ceiling Bracket for INLGDO20360IRWA

PART #: XLGBC15NP View more

XLGBR03 - In Ceiling Bracket for INLGDO20360IRWA

PART #: XLGBR03 View more

XLGBW15 - Wall Mount Bracket for INLGDO20360IRWA

PART #: XLGBW15 View more

XLGBW16 - Wall Junction Bracket for INLGDO20360IRWA

PART #: XLGBW16 View more
