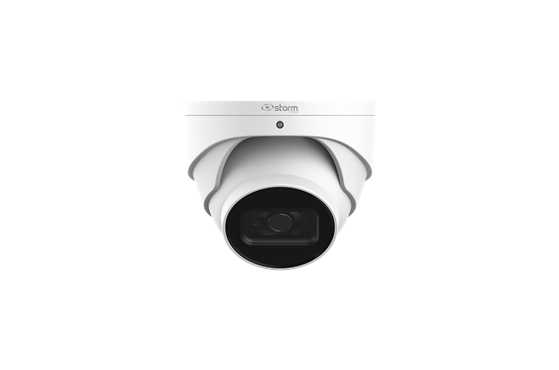

4K ULTRA-HD Network TURRET Camera, IN/OUT, Fixed 2.8mm

Brand : STORM

UPC: 685225108771

PART #: INSTO4KIRF

The 4K ULTRA-HD H265 Fixed Turret Network WDR 120DB Camera is an advanced security solution designed to deliver exceptional image clarity and performance. Equipped with an 8MP, 1/2.7” CMOS image sensor, this camera captures detailed and vivid images, even in low-light conditions. Its ability to output a maximum resolution of 8MP (3840 × 2160) at 15 fps ensures that every detail is recorded in ultra-high definition, making it ideal for critical surveillance applications.

One of the key features of this camera is its utilization of the H.265 codec, which provides a high compression rate and ultra-low bit rate. This advanced compression technology significantly reduces storage requirements without compromising on image quality, allowing for longer recording times and more efficient use of storage space. Additionally, the built-in IR LED extends the camera's night vision capabilities with a maximum IR distance of 30 meters, ensuring clear and reliable footage even in complete darkness.

The 4K ULTRA-HD H265 Fixed Turret Network Camera also boasts intelligent detection features that enhance its security monitoring capabilities. These include intrusion detection and tripwire detection, which can identify and alert to specific activities or breaches within a designated area. The camera's wide dynamic range (WDR) of 120dB ensures that it can handle challenging lighting conditions, providing balanced and clear images whether in bright sunlight or shadows.

Overall, the 4K ULTRA-HD H265 Fixed Turret Network WDR 120DB Camera combines high-resolution imaging, efficient compression technology, robust night vision, and intelligent detection features to deliver a comprehensive and reliable security solution for a wide range of environments.

Audio In/Out With Audio Inputs and/or Outputs

Lens Type Fixed

Wide Dynamic Range WDR 120dB or more

Inputs/Outputs Without Inputs/Outputs

Form Factor Turret

Megapixels 8 Megapixels

Image Sensor 1/2.7” 8Megapixel progressive CMOS

Effective Pixels 2880 (H) × 1620 (V)

Scanning System Progressive

Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s

Minimum Illumination 0.009 Lux at F2.0

S/N Ratio More than 56 dB

IR Distance 30 m (98.4 ft)

IR LEDs 2

Day/Night Auto (ICR)/Color/B/W

Backlight Compensation BLC / HLC / WDR 120 dB

White Balance Auto / natural / street lamp / outdoor / manual / regional custom

Gain Control Auto; manual

Noise Reduction 3D DNR

Motion Detection OFF/ON (4 areas, rectangular)

Region of Interest(RoI) 4 areas

Smart Illumination / Mirror Yes

Image Rotation 0° / 90° / 180° / 270° (Supports 90° / 270° with 4MP resolution and lower.)

Privacy Masking 4 areas

Lens Type Fixed-focal

Focal Length 2.8 mm

Mount Type M12

Max. Aperture F2.0

Close Focus Distance 1.0 m (3.3 ft)

Viewing Angle Horizontal: 105° Vertical: 56° Diagonal: 125°

Pan/Tilt/Rotation Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360°

DORI Distance Detect: 74.7m / Observe: 29.9m / Recognize: 14.9m / Identify: 7.5m

Main Stream 3840 × 2160 (1 fps–15 fps); 2688 × 1520 (1 fps–25/30 fps)

Smart Functions Tripwire; intrusion

Built-in Microphone Yes

Audio Compression G.711A; G.711Mu; G.726

Storage FTP; SFTP; NAS; Micro SD Card up to 256 GB

Power Supply 12V DC/PoE (802.3af )

Compression H.265+; H.264+; MJPEG (only supported on the sub stream)

Resolution 3840 × 2160 (3840 × 2160); 3072 × 2048 (3072 × 2048); 3072 ×1728 (3072 × 1728); 2592 × 1944 (2592 × 1944); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Dimensions 99.1 mm × 121.9 mm (3.9” × 4.8”)

Frame Rate Main Stream: 3840 × 2160 (1 fps–15 fps); 2688 × 1520 (1 fps–25/30 fps) // Sub stream: 704 × 576 (1 fps to 25 fps); 704 × 480 (1 fps to 30 fps)

Bit Rate H.264: 3 Kbps–8192 Kbps; H.265: 3 Kbps–8192 Kbps

Alarm Event NO SD card; SD card full; SD card error; network disconnection; IP conflict; motion detection; video tampering; tripwire; intrusion; illegal access; voltage detection; audio detection; safety exception

Built-in Microphone Yes

Smart Functions Tripwire; intrusion

Audio Compression G.711A; G.711Mu; G.726

Certifications CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL60950-1 CAN/ CSA C22.2 No.60950-1-07

Ethernet RJ-45 (10/100 Base-T)

SDK & API Yes

Cyber Security Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and im- porting of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Storage FTP; SFTP; NAS; Micro SD Card up to 256 GB

Management Software STORM, STORM+, ARKIV

Protocol DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP

Compatibility CGI; P2P; Milestone; Genetec; ONVIF (Profile S&G&T)

Maximum User Access 20

Browser Chrome; Firefox; IE

Smart Phone iOS, Android

Power Supply 12V DC/PoE (802.3af)

Power Consumption Less than 7.2W

Working Environment -40°C to +55°C (-40°F to +131°F); Less than 95% RH

Protection IP67

Material Metal

Dimensions 99.1 mm × Φ121.9 mm (3.9” × Φ4.8”)

Weight 1.40 lbs (0.65 kg)
