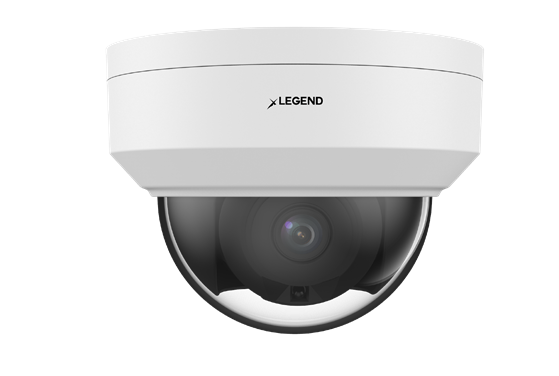

8 MP AI Fixed Dome Network Camera with IR

Brand : LEGEND
PART #: INLGDO4KIRWFAI

Introducing our AI Fixed Dome Network Camera with IR, a state-of-the-art surveillance solution engineered to provide superior image quality and advanced features. With a high-resolution 8MP output and a 1/2.7’’ CMOS sensor, this camera delivers sharp and detailed visuals for comprehensive monitoring.

Equipped with True WDR (120 dB) technology, our camera ensures optimal image clarity in varying lighting conditions, minimizing glare and shadows for superior visibility. Supporting both H.265+ & H.264 encoding, it efficiently compresses video data while maintaining excellent image quality, optimizing storage efficiency and bandwidth usage.

Featuring advanced AI capabilities such as People Flow Counting, Crowd Density Monitoring, Human and Vehicle Detection, our camera offers enhanced functionalities for crowd management and security analysis. Additionally, it boasts Smart IR technology, providing clear night vision up to 30 meters (98 feet), ensuring reliable surveillance day and night.

With a built-in microphone and speaker, our camera facilitates two-way audio communication, allowing for real-time interaction with individuals on-site. This feature enhances the camera's role in active deterrence, making it a comprehensive security solution for those seeking to protect their premises with the latest in surveillance technology.

Image Sensor 1/2.7”, 8.0 megapixel, progressive scan, CMOS
Minimum Illumination Colour: 0.0025 Lux (F1.6, AGC ON); 0 Lux with IR
Features HLC; BLC; WDR 120dB
Lens Type Fixed Lens
Focal Length 2.8mm ~ 4.0mm
Compression H.265, H.264, MJPEG
Power Supply DC12V±25%, PoE (IEEE802.3 af )
Minimum Illumination Colour: 0.0025 Lux (F1.6, AGC ON); 0 Lux with IR
Features HLC; BLC; WDR 120dB
Lens Type Fixed Lens
Focal Length 2.8mm ~ 4.0mm
Compression H.265+ / H.265 / H.264 / MJPEG
H.264 code profile Baseline profile, Main profile, High profile
Scanning System Progressive
S/N Ratio More than 56dB
Electronic Shutter Speed Auto/Manual, 1 ~ 1/100 000s
IR Distance Distance up to 30M (98ft)
Wavelength 850nm
IR On/Off Control Auto/Manual
White Balance Auto / Outdoor / Fine Tune / Sodium Lamp / Locked
Noise Reduction 2D/3D DNR
Defog Digital Defog
Dewarping Supported
Privacy Masking Up to 4 areas
OSD Up to 8 OSDs
Smart IR Supported
ROI Up to 8 areas
Viewing Angle H: 86.5°; V: 44.1°; O: 112.5°
Pan/Tilt/Rotate Pan: 3° ~ 360°; Tilt: 0 ~ 68°; Rotate: 3° ~ 360°
DORI Distance Detect: 120m / Observe: 48m / Recognize: 24m / Identify: 12m
Frame Rate Main Stream: 3840 x 2160, Max 20fps; 3072 x 1728, Max 30fps; 2560 x 1440, Max 30fps; 1920 x 1080, Max 30fps; Sub Stream: 1920 x 1080, Max 30fps; 1280 x 720, Max 30fps; 720 x 576, Max 30fps; 640 x 360,Max 30fps; 704 x 288, Max 30fps; 352 x 288, Max 30fps; Third Stream: 720 x 576, Max 30fps; 640 x 360,Max 30fps; 704 x 288, Max 30fps; 352 x 288, Max 30fps;
Bit Rate 128 Kbps ~ 16 Mbps
Alarm I/O 1/1
Network 1 x RJ45 10M/100M Base-TX Ethernet
Protocol IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS, SSH
Compatibility ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host Up to 32 users. 2 user levels: administrator and common user
Security Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above // Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Management Software LEGEND VMS, Arkiv
Audio I/O Input: impedance 35kΩ; amplitude 2V [p-p] / Output: impedance 600Ω; amplitude 2V [p-p]
Audio Compression G.711
Audio Bitrate 64 Kbps
Suppression Supported
Sampling Rate 8KHZ
Two-way Audio Supported
Built-in Microphone Yes
Edge Storage Micro SD slot, up to 256 GB
Network Storage ANR, NAS(NFS)
Smart Detection Support false alarm filtering, Line crossing detection, Intrusion detection, Entering/Leaving Area Detection
Statistical Analysis People counting, support people flow counting, and crowd density monitoring
Basic Detection Motion detection, Tampering alarm, Audio detection
General Function Watermark, IP address filtering, Tampering alarm, Alarm input, Alarm output, Access policy, ARP protection, RTSP authentication, User authentication
EMC CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019, EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020), FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Safety CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Power Supply DC 12V±25%, PoE (IEEE 802.3af)
Power Consumption Less than 6W
Working Environment -30° C to +60° (-22°F ~ 140°F) / Less than 95% RH (non-condensing)
Protection IP67 & IK10
Weight 0.95lb (0.43kg)
Dimensions 109 x 83mm (4.3” × 3.3” )
