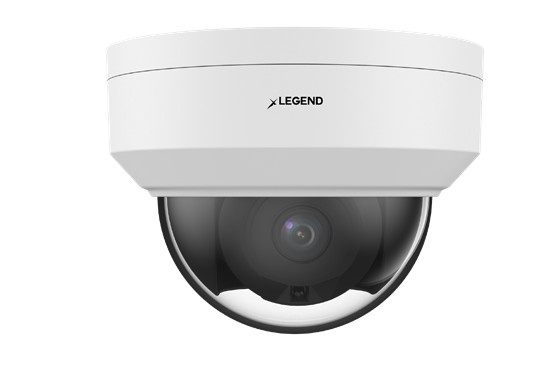

8.1 MP Vandal Proof Fixed Lens Dome Network Camera w/IR, 2.8mm

Brand : LEGEND

UPC : 685225603795

PART # : INLGDO4KIRWF

Introducing the Vandal Proof Fixed Dome Network Camera, a robust and high-performance surveillance solution. Equipped with an 8MP, 1/2.7’’ CMOS sensor, this camera delivers stunning 4K resolution for unparalleled picture clarity.

Featuring True WDR (120 dB), it ensures optimal image quality in the most challenging lighting conditions. The camera supports H.265+ and H.264 encoding, providing efficient video compression and storage.

With Smart IR technology, the camera offers clear night vision up to 30 meters (98 feet). The built-in microphone enhances audio surveillance capabilities, capturing sound with high clarity.

This camera is also NDAA compliant, meeting strict security standards. Designed for both durability and exceptional performance, the Vandal Proof Fixed Dome Network Camera is the ideal choice for reliable and high-quality surveillance.

Advanced Compression Standards

Supports advanced video compression standards including Ultra 265, H.265, H.264, and MJPEG, enabling more efficient video storage and streaming.

Smart IR

Provides 24-hour monitoring with day/night functionality, featuring Smart IR technology for up to 30 meters of IR distance and an optical glass window with increased light transmittance for enhanced image clarity.

2D/3D DNR Technology

Uses an anti-reflective window for enhanced infrared transmittance and utilizes advanced 2D/3D DNR technology for superior digital noise reduction.

Multiple Features

This security camera is designed to withstand extreme temperatures ranging from -35°C to 60°C and offers excellent surge protection of 2KV. With an Ingress Protection rating of IP67, it is highly resistant to environmental factors, and its IK10 vandal-resistant rating ensures durability against physical damage.

Image Sensor 1/2.7”, 8 Megapixel, progressive scan, CMOS

Scanning System Progressive

Electronic Shutter Speed Auto/Manual, 1~1/100,000 s

Minimum Illumination Colour: 0.05 lux (F1.6, AGC ON); 0 Lux with IR

S/N Ratio More than 56dB

IR Distance Distance up to 30m (98ft)

Advanced Detection Tools Human Body Detection

Wavelength 850nm

IR On/Off Control Auto/Manual

Day/Night IR-cut filter with auto switch (ICR)

Smart IR Supported

White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked

Backlight Compensation Supported

Noise Reduction 2D/3D DNR

Features Dewarping; HLC; BLC; WDR 120dB

Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise

Privacy Masking Up to 4 areas

OSD Up to 4 OSDs

Region of Interest Up to 8 areas

Defog Digital Defog

Lens Type Fixed Lens

Focal Length 2.8mm

Viewing Angle H: 112.9°; V: 59.1°; O: 121.2°

Iris Type N/A

Pan/Tilt/Rotate Pan: 8° ~ 360°; Tilt: 0 ~ 68°; Rotate: 10 ~ 360°

DORI Distance Detect: 84.0m; Observe: 33.6m; Recognize: 16.8m; Identify: 8.4m

Compression H.265+, H.265, H.264, MJPEG

H.264 code profile Baseline profile, Main profile, High profile

Frame Rate Main Stream: 3840 x 2160, Max 20fps; 3072 x 1728 Max 30fps; 2560 x 1440, Max 30fps; 1920 x 1080, Max 30fps // Sub Stream: 1920 x 1080, Max 30fps; 1280 x 720, Max 30fps; 720 x 576, Max 30fps; 640 x 360, Max 30fps

Video Bit Rate 128 Kbps~16 Mbps

Edge Storage Micro SD, up to 256GB

Network Storage ANR, NAS(NFS)

Ethernet 1 RJ45 10M/100M Base-TX Ethernet

Protocol IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP

Compatibility ONVIF (Profile S, Profile G, Profile T), API, SDK

Security Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF

Management Software LEGEND VMS / ARKIV

User/Host Up to 32 users. 2 user levels: administrator and common user

Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above // Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above

Audio Compression G.711U, G.711A

Audio Bitrate 64 Kbps

Suppression Supported

Sampling Rate 8KHZ

Built-in Microphone Supported

Detection Cross line, intrusion(based on human body detection), motion detection, Ultra motion detection (Humand and Vehicle), tampering alarm, audio detection

General Function Watermark, IP address filtering, Tampering alarm, Alarm input, Alarm output, Access Policy, ARP protection, RTSP authentication, User authentication

EMC CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)

Safety CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)

Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Power Supply DC 12V±25%, PoE (IEEE 802.3af)

Power Consumption Less than 4.5W

Working Environment -30°C to 60°C (-22°F to 140°F) / Less than 95% RH

Material Metal + Plastic

Vandal & Ingress & Surge Protection IK10; IP67; 4KV

Weight 0.37kg (0.82lb)

Dimensions Φ109 x 83mm (Ø4.3” x 3.3”)
