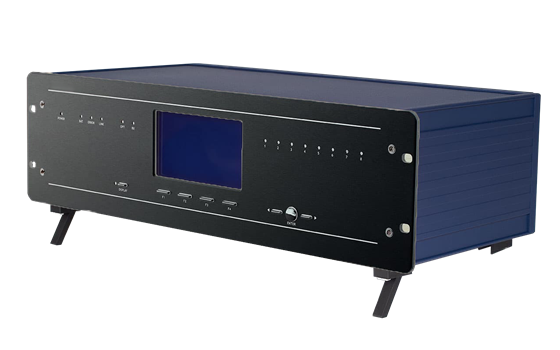

Inaxsys Incomlink 3U Rackmount IP receiver- 2756 IP accounts

Brand : IncomLink

UPC: 685225207924

PART #: INC-3URX-2756

Incomlink represents the state of art in receivers.

INC-3URX-2756 monitoring receiver provides a robust, complete and reliable solution to help build a modern monitoring station. This device can receive all standard and most nonstandard signals from alarm control panels and communicators.

Hardware receiver for both IP and PSTN line cards
Functions seamlessly with your automation platform
Massive 19” rack housing
LCD display with 240x128 pixels
Power supply with backup (18Vdc main power / 12Vdc battery)
Built in IP card in base configuration (expandable with IP or PSTN cards)
2 serial ports / USB connectors for PC connection
8 additional line card connectors for IP or PSTN expansion (optional)
Up to 20,256 total accounts can be monitored per INC-3URX-256 receiver
Receiving 4/2, Contact ID and SIA format messages (valid for phone line)
IP test code monitoring up to 2756 accounts (expandable)
Continuous checking of Internet connection
Client phone number and IP address display
Remote programming (through IP network)
Event list monitoring from web browser
Encrypted communication (AES-128)
Firmware update function
CE declaration, ISO 9001:2009 certificate

Power Supply 18Vdc at 2A (main) / 12Vdc at 7Ah (battery)

Maximum current consumption about 500mA

Event buffer up to 2.000 events

Operating temperature +10 °C to +30 °C / 40% relative humidity

Dimension 485 mm x 220 mm x 135 mm

Weight 12.5 lbs

Specifications Sheet

18-08-2021 — INC-3URX-2756 Inaxsys Incomlink 3U Rackmount IP receiver - 2756 IP accountsc.pdf

Want to know more about IncomLink ?

Once again Inaxsys offers you a unique solution: IncomLink

IncomLink brings together our line of radio alarm communicators and receivers. Using advanced communication technology, you can not only remotely monitor your sites without risk of interruption thanks to LTE and WIFI networks, but you will also be able to manage your alarm systems, your gate openers, all your home automation apps and several other I / O devices using the IncomLink application (available for iOS and Android).

IncomLink represents the state of art in communicators.

Easy to install with a simple user interface, our device can interpret Contact-ID protocol and forward the message in SIA DC 09 format to the monitoring station IP receiver through the TCP/IP network. WIFI communication allows access to the Incomlink.com app and software for complete supervision and management of your communicators.
