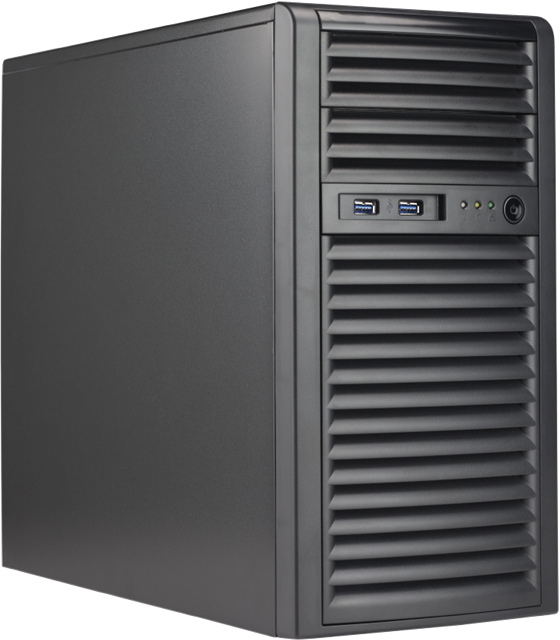

High Performance Desktop IP Server - 6000 GB Hard drive

Brand : INAXSYS
UPC: 0
PART #: DT-IPS-H-6T

The Desktop Case IP Server is a high-performance solution designed for robust video management and storage. Powered by the latest generation Intel® Core i7 Processor, this server offers exceptional processing capabilities. It features a 1TB M.2 NVMe boot drive and an additional 1TB NVMe SSD for swift data access and storage.

Equipped with 16GB of DDR-5/4800 memory (2 x 8GB), the server ensures smooth multitasking and efficient operation. With a storage capacity of up to 64TB, it is well-suited for extensive data retention needs. The server supports a range of video management software, including Arkiv, STORM, LEGEND, and third-party applications like ExacqVision™, Genetec™, Milestone™, and Avigilon™.

Ideal for comprehensive IP surveillance solutions, this server combines power, flexibility, and extensive compatibility to meet diverse security and monitoring requirements.

Network Servers Desktop
Server Type IP Server
Raid N/A
Hot swap N/A
Dual supply N/A
Disk space 6 TB
Maximum IP Cameras Data rate dependent; VMS Application dependent
Server OS Arkiv, IVTVision, STORM or a 3rd party software
Video Management Software Arkiv, STORM, LEGEND or 3rd party software such as ExacqVision™, Genetec™, Milestone™, Avigilon™, and more
Server OS Windows 11 Pro 64 bit (standard)
Maximum storage 64 TB
Drive Bays 4 x 3.5” SAS/SATA Backplane for Hot-Swappable Drives
DVD / CD-ROM Optional
Keyboard & Mouse Included
Compatible OS Windows 7, Windows Vista, Windows 8.1, Windows 10, Windows Server 2012/2016 or Mac OS X
Network Controllers Dual LAN with Intel® Ethernet i225LM
LAN PCIE Network Card (Startech ST1000SPEX2L GbE, TP-Link TG-3468, or equivalent)
SATA Intel Q670E controller for 8 SATA3 (6 Gbps) ports;
PCI-E Add on Card Up to 2 NVMe SSDs
Graphics Adapter NVIDIA A2000
CPU Latest Generation Intel®Core i7, 30M Cache, up to 5.20 GHz
Core Up to 24 cores
Compatible OS Windows 11 Pro, Server 2022 32-bit or 64-bit
Solid-State Drive 2 x 1TB NVMe M.2
*Maximum Video Storage Rate 600 to 800 Mbps (Windows)
RAM 2 x Memory 8GB DDR-5/4800 (or faster)
Memory Type 4400/4000/3600 MT/s
DIMM Sizes 4GB, 8GB, 16GB, 32GB
Memory Voltage 1.1V
USB Ports 6 x USB 2.0 & 6 x USB 3.1
Display Outputs 1 VGA port, 1 HDMI port, 1 DP (DisplayPort) port, 1 DVI - D port
SATA 8 SATA3 (6Gbps) port(s)
Input Voltage 668W with Input 100 - 240Vac
Power supply PS2 668W Multi-output power supply 80PLUS Platinum
Heatsink/Fan Speed Control: 4-pin PWM; Rated Voltage: 12.0 VDC; Rated Speed: 3,800 RPM
Dimensions 426 mm x 178 mm x 531 mm (H x W x D)
Weight 40 lbs
Regulatory BSMI; CCC; CE/EMC; FCC class B; TUV/CB; UL/CUL
