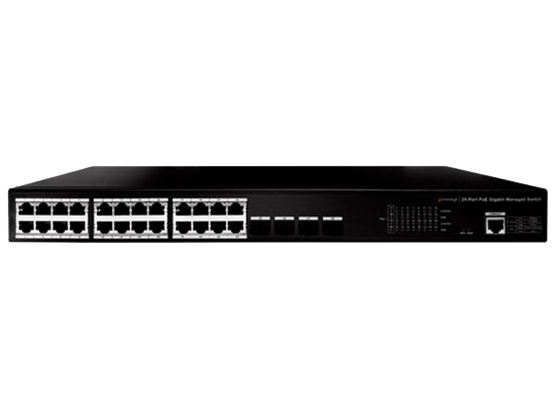

24-Port PoE Gigabit Managed Switch + 4 x BASE-X PORTS

Brand : INAXSYS

UPC: 685225400240

PART #: INS244POEGWM

• Two-layer network management PoE switch

• MAC auto study and aging, MAC address list capacity is 8K

• Support IEEE802.3af, IEEE802.3at standard

• Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards

• Support command-line interface

PoE Switches PoE Switches

Type Managed Switches

Ports 24 Ports

Ethernet Port 24*10/100/1000 Base-T(PoE power supply); 4*1000 Base-X

PoE Power consumption Each power ≤30W; Total≤370W

PoE Protocol IEEE802.3af; IEEE802.3at

Switching Capacity 56Gbps

Packet Forwarding Rate 41.66Mpps

Packet Buffer Memory 41.66Mpps

Packet Buffer Memory 8Mb

Lightning Protection Common Mode 4KV

Power AC100-240V, 50/60Hz

Working Temperature -10°C~55°C

Application Humidity 5%~95%

Dimensions 440mm x300mm x44mm

Service Characteristics -

System Username / password: admin/admin IP Address :192.168.1.110/24

PoE Budget Total≤370W

MAC Table 8K

SNTP Supported

DHCP Support DHCP client/server

VLAN 802.1Q Standard VLAN

Spanning tree Support STP/RSTP/MSTP

Port Aggregation Manual aggregation/LACP

LLDP Supported

Mirroring Many-to-one port mirroring

MAC Table Support MAC address table configuration

Flow Control Half-duplex based on back pressure type control; Full duplex based on PAUSE frame

QoS WRR (Weighted Round Robin); Port based QoS; IEEE 802.1p Class of Service; DSCP-based QoS; QoS basic mode; QoS advanced mode (Policy based)

Multicast IGMP Snooping v1/v2/v3

System Maintenance Support the configuration file upload / download, Support the updated packet upload, System log

Security Features Broadcast/ Uncast/ Multicast Storm Control, IEEE802.1x, DHCP Snooping(IP, MAC, Port)

Network Management WEB(http protocol), serial, SNMP

Specifications Sheet

07-11-2023 — INS244POEGWM 24-port PoE G Switch.pdf
