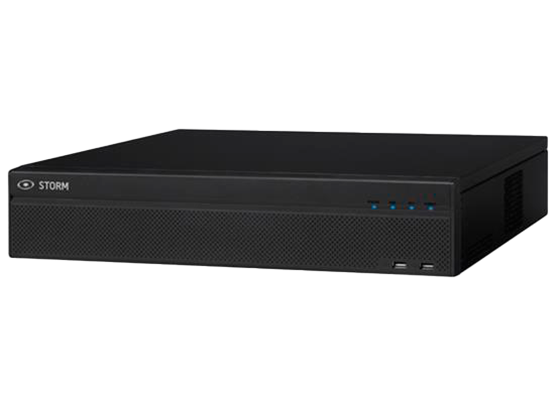

STORM Network Video Recorder
Channels
32 Channels
Raid
N/A
Disk space
N/A
Main Processor
Intel Dual-core Processor
Operating System
Embedded LINUX
Operation Interface
Web; local GUI
Area Protector Performance (Channels)
24 channels (by recorder), 10 IVS rules for each channel; 32 channels (by camera)
Area Protector AI Search
Search for pictures by channel, time and event type
Smart Motion Detection Performance (Channels)
32 channels (by camera), 32 channels (by recorder)
Smart Motion Detection AI Search
Search by target classification (Human, vehicles). Minimizing false alerts triggered by foliage, precipitation, and shifts in lighting conditions
Face Detection Performance (Channels)
32 channels (by camera), 4 channels (by recorder)
Face Attributes
Mask; beard; gender; age; glasses; expression
AI Search Rate
Up to12 face images/s (by recorder); up to 20 face images/s (by rec+cam)
Facial Recognition Performance (Channels)
32 ch-s (by camera); 20 ch-s (by camera + recorder); 4 ch-s (by recorder)
Capacity for Facial Databases
Support for 40 facial databases comprising 300,000 images, with a combined storage capacity of 48 GB. Each facial image can include details such as name, gender, birthdate, address, credential type, credential number, country/region, and state
Facial Recognition AI Search
Search for pictures by channel, time and face attributes
Video Metadata Performance (Channels)
32 channels (by camera); 8 channels (by recorder)
Human Attributes
Color, type, bottom color, bottom type, hat, bag, age, gender, umbrella
Motor Vehicle / Non-motor Vehicle Attributes
License plate, plate color, vehicle body, vehicle model, vehicle logo, calling, seatbelt, vehicle interior, vehicle registration location / Vehicle model, vehicle color, number of persons, helmet
Video Metadata AI Search
Supports searching for target video by metadata
Advanced smart functions AI by Camera
People counting; stereo analysis; crowd distribution; vehicle density; object monitoring; ANPR, create up to 20,000 plate numbers; blocklist and allowlist (32 channels)
Video Channels
32 channels
Network Bandwidth
AI disabled: Entry, retention at 1024Mbps, transmission at 800Mbps AI enabled: Entry, retention at 512Mbps, transmission at 400Mbps
Resolution
32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 5 MP; 4 MP; 1080p; 720p; D1
Decoding Capability
AI disabled: 2-channel 32MP at 20fps; 2-channel 24MP at 20fps; 4-channel 16MP at 30fps; 5-channel 12MP at 30fps; 8-channel 8MP at 30fps; 12-ch 5MP at 30fps; 16-ch 4MP at 30fps; 32-ch 2MP at 30fps AI enabled: 1-channel 32MP at 20fps; 1-channel 24MP at 20fps; 2-channel 16MP at 30fps; 4-channel 12MP at 30fps;4-channel 8MP at 30fps; 8-channel 5MP at 30fps; 12-ch 4MP at 30fps; 24-ch 2MP at 30fps
Video Output
2-channel VGA, 4-channel HDMI video output
Multi-screen Display
Main screen: 1/4/8/9/16/25/36; Sub screen: 1/4/8/9/16/25/36
Third Party Camera Access
Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, Canon and more
Video Compression
Vidéo H.265+; H.264+; H.265; H.264; MJPEG
Audio Compression
G.711A; G.711U; PCM; G726
Multi-channel Playback
Up to 16 channels
Record Mode
Manual; alarm; motion detection; scheduled
Backup
Portable hard drive, eSATA disk, burner, USB device and network
Playback Mode
1. Play, pause, stop, fast forward, fast backward, rewind, play by frame 2. Full screen; backup (cut/file); partially enlarge; audio on/off
Network Mobile Phone Access
Android; iOS
Network Protocol
HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration; ISCSI
Interoperability
ONVIF (profile T/S/G); CGI; SDK
Network Mode
Multi-address mode, load balance, fault tolerance and other network port binding modes
Alarm General
Motion detection; video tampering; video loss; scene changing, PIR alarm, IPC external alarm
Anomaly
Offline cameras; storage error; full storage; IP conflict; MAC conflict; login locked; network security anomaly; abnormal behavior of fan
Smart Alarm
Area Protector; face detection & recognition; SMD; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map
Alarm Linkage
Record; snapshot; IPC external alarm output; buzzer; log, preset; email
Disk Group
Supported
Hot Swapping
Supported
RAID
0/1/5/6/10
Audio Input
1 channel, RCA connector
Audio Output
2 channel, RCA connector
HDD
8 SATA port, up to 16 TB. The maximum HDD capacity varies with environment temperature
USB
2 front USB 2.0 ports, 2 rear USB 3.0 ports
Alarm In/Out
16/8
HDMI/VGA
4/2
eSATA
1
RS-232
1
RS-485
1 × A/B
Network
2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet port
Certification
FCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032:2020, Class A; EN IEC 61000-3-2:2019; EN 61000-33:2013+A1:2019; EN 55024:2010+A1:2015; EN 55035:2020; EN 501304:2011+A1:2014; CE-LVD: EN 62368-1:2014+A11:2017
Installation
Rack or desktop
Power Supply
100–240 VCA, 50/60 Hz
Power Consumption
Less than 18W (without HDD)
Unladen/Laden Weight
14.11 lbs (6.4kg)/22.82 lbs (10.35kg)
Dimensions
444.0 mm × 456.6 mm x 95.0 mm (17.48” × 17.98” × 3.74”) (W × D × H)
Operating Temperature
10°C to +55°C (+14°F to +131°F); 10%–93% (RH)
Installation
Desktop or rack
