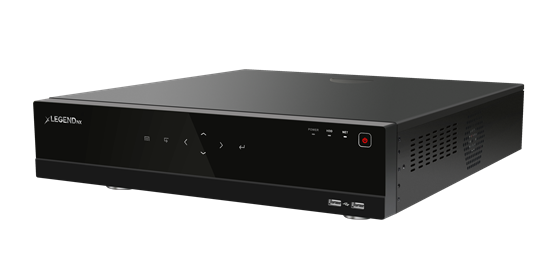

64-Channel 4K Network Video Recorder

Brand : LegendNX

UPC: 685225308843

PART #: LGNX644KN

This 64-channel NVR recorder supports IP video input up to 12MP and includes AI features such as SMD, perimeter protection, and face detection. It offers an input bandwidth of 1024 Mbps and output bandwidth of 800 Mbps, with support for ONVIF and RTSP protocols, and video compression in H.265+/H.265.

64-Channels IP Video input, up to 12MP
AI Camera : SMD, perimeter protection, face detection
Incoming & Outgoing bandwidth : 1024 & 800 Mbps
Supports ONVIF & RTSP protocols
Asynchronous HDMI 1/ HDMI 2 outputs up to 4K
H.265+/H.265

Ordering Information		Storage Capacity
LGNX644KN16T		16 TB
LGNX644KN20T		20 TB
LGNX644KN24T		24 TB
LGNX644KN28T		28 TB
LGNX644KN32T		32 TB
LGNX644KN36T		36 TB
LGNX644KN40T		40 TB
LGNX644KN44T		44 TB
LGNX644KN48T		48 TB
LGNX644KN52T		52 TB
LGNX644KN56T		56 TB
LGNX644KN60T		60 TB
LGNX644KN70T		70 TB
LGNX644KN80T		80 TB

IP Video Input 64-Channels

Audio Input 1-Channel, RCA

HDMI 1 7680 × 4320/30Hz,3840 × 2160/30Hz,1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

HDMI 2 3840 × 2160/30Hz,1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

HDMI 3 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

HDMI 4 3840 × 2160/30Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

VGA VGA 1 & 2: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

udio Output 2-Channels, RCA

Video Output 2-Canaux VGA, 4-Canaux HDMI

Max resolution HDMI1: 8K; HDMI 2 & 4: 4K; VGA 1 & 2 & HDMI3: 1080P

Screen Split Main Screen: 1, 4, 8, 9,16, 25, 36, 64 screen split

Compression H.265+/ H.265/ H.264+/ H.264

Resolution 12MP / 8MP / 5MP / 4MP / 3MP / 1080P / 720P / D1 / CIF / QCIF

Playback Resolution 12MP / 8MP / 5MP / 4MP / 3MP / 1080P / 720P / D1 / CIF / QCIF

Decoding H.265 32-Channels @ 1080P 30fps; 16-Channels @ 4MP 30fps; 8-Channels @ 8MP 30fps; 4-Channels @ 16MP 30fps; 2-Channels @ 32MP 30fps

Synchronous Playback 16-ch 1080P @ 30fps; 16-ch 4Mp @ 30fps; 8-ch 8Mp @ 30fps; 5-ch 12Mp @ 30fps

Backup Mode USB Device / Network / eSATA

Smart Playback Mode Enhanced playback with advanced search features, such as motion or object detection for faster review

Normal Playback Standard, continuous playback of recorded footage

Segmented Playback Splits recorded footage into time segments for easier navigation

Tagged Playback Allows playback of video segments that have been labeled or tagged for easy access

Event Playback Focuses playback on recorded events like motion detection or alarms

Picture Playback View recorded footage in still image format for detailed inspection

USB Interface Front panel: 2 × USB 2.0, Rear panel: 2 × USB 3.0

eSATA 1 x eSATA

RS485, RS232, 12V Out 1-Channel each

Alarm In 16-Channels

Alarm Out 8-Channels

Smart Detection Advanced detection capabilities include Area Intrusion, Line Crossing, Region Entry/Exit, etc.

Cloud Storage Supported

Cloud Upgrade Supported

Incoming Bandwidth 1024Mbps (without RAID) /512Mbps (RAID)

Outgoing Bandwidth 800Mbps (without RAID) /400Mbps (RAID)

Ethernet 2 x 2.5GE self-adaptive Ethernet interface

Network Compatibility HTTPs, HTTP, TCP/IP, IPv4, UPnP, RTSP, UDP, SMTP, SNMP, NTP, DHCP, DNS, Filtre IP, DDNS, FTP, P2P, ONVIF

Smart Phone IOS (iPhone, iPad), Android (Phone, Pad)

SATA 8 SATA Interfaces

Capacity Up to 22TB capacity for each HDD

Power Supply AC 100 ~ 240V

Power Consumption ≤20W (without HDD and POE)

Working Environment -10°C ~ +55°C (14°F ~ 131°F)/10% ~ 90%RH

Dimension (W×D×H) 440 × 452 × 90 mm (17.32" × 17.79" × 3.54")

Weight 17.63 lb / 8 Kg

Specifications Sheet

27-03-2025 — LGNX644KN - 64 CHANNEL 4K NVR.pdf
