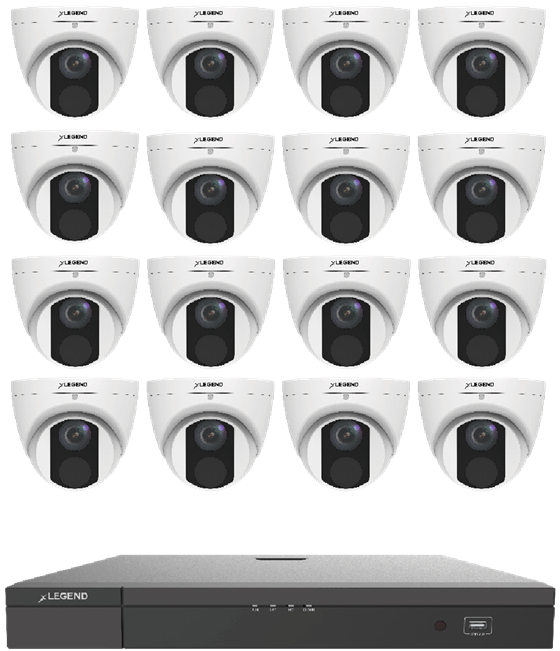

LEGEND 16 Channel 4 TB 4K NVR Bundle with 16 x 4.1MP Turret Cameras

Brand : LEGEND
PART #: INLG16164KN4TT

Introducing our comprehensive surveillance solution, combining advanced camera and NVR features to deliver unmatched performance and reliability. Our camera boasts state-of-the-art LiteAI Edge Analytics, providing intelligent detection and analysis for enhanced security. With a high-quality 4MP image resolution and a 1/3’’ CMOS sensor, it ensures crystal-clear visuals. Even in low-light environments, our camera excels with Starlight ultra-high image quality, capturing every detail with precision. It utilizes efficient encoding technologies like H.265+ & H.264, maximizing storage space without compromising on quality. Plus, with 120dB true WDR technology, it guarantees optimal image clarity in varying lighting conditions. The camera's Smart IR extends visibility up to 30 meters (98 feet), ensuring reliable surveillance day and night. It also features advanced perimeter protection functions, including cross-line detection and intrusion detection, for enhanced security monitoring.




Complementing our camera is our feature-rich NVR, offering seamless integration and comprehensive recording capabilities. Supporting H.265+ / H.265 / H.264 compression, it efficiently stores high-resolution footage without overwhelming storage capacity. With 16-channel input and support for up to 8 Megapixels resolution recording, it accommodates diverse surveillance setups. HDMI and VGA simultaneous output enable flexible viewing options, while 2 SATA HDDs, up to 10TB per HDD, ensure ample storage space for extended recording periods. Cloud upgrade support ensures effortless system updates, while plug & play with easy 16-port PoE simplifies installation. Additionally, Advanced Network Redundancy (ANR) improves storage reliability during outages, guaranteeing continuous surveillance coverage. Experience the pinnacle of surveillance technology with our integrated camera and NVR solution.

Plug & Play Video Recorders NDAA Legend Network Video Recorder
Channels 16 Channels
Disk Space 4 TB
Camera Features -
Image Sensor 1/3”, 4.0 megapixel, progressive scan, CMOS
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1 ~ 1/100 000s
Minimum Illumination Color: 0.002Lux (F1.6, AGC ON) / 0 Lux with IR on
S/N Ratio More than 56dB
IR Distance Distance up to 30M (98ft)
IR On/Off Control Auto/Manual
Wide Dynamic Range 120dB
Day / Night IR-cut filter with auto switch (ICR)
White Balance Auto / Outdoor / Fine Tune / Sodium Lamp / Locked
Noise Reduction 2D/3D DNR
Features HLC; BLC; Corridor Mode
Defog Digital Defog
Privacy Masking Up to 4 areas
OSD Up to 8 OSDs
Smart IR Supported
Motion Detection Up to 4 areas
Lens Type Fixed
Focal Length 2.8mm
Viewing Angle H: 101.1°; V: 55.3°; O: 111.1°
Pan/Tilt/Rotate Pan: 0° ~ 360°; Tilt: 0 ~ 80°; Rotate: 0° ~ 360°
DORI Distance Detect: 63m / Observer: 25.2m / Recognize: 12.6m / Identify: 6.3m
Compression H.265+ / H.265 / H.264 / MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile
Frame Rate Main Stream: 4MP (2688 x 1520) Max 30fps; 4MP (2560 x 1440) Max 30fps; 3MP (2304 x 1296) Max 30fps; 1080P (1920 x 1080) Max 30fps // Sub Stream: 720P (1280 x 720) Max 30fps; D1 (720 x 576) Max 30fps; 640x360 Max 30fps; 2CIF (704 x 288) Max 30fps; CIF (352 x 288) Max 30fps // Third Stream: D1 (720 x 576) Max 30fps; 640 x 360 Max 30fps; 2CIF (704 x 288) Max 30fps; CIF (352 x 288) Max 30fps
Bit Rate 128 Kbps ~ 16 Mbps
Ethernet 1 RJ45 10M/100M Base-TX Ethernet
Protocol IPv4, IPv6,IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH
Compatibility ONVIF (Profile S, Profile G, Profile T), API,SDK
Security Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF, Password protection, Strong password, HTTPS encryption
Management Software LEGEND VMS / ARKIV
Audio Compression G.711
Suppression Supported
Sampling Rate 8KHZ
Microphone Built-in Mic
Edge Storage Micro SD slot, up to 256 GB
Network Storage ANR, NAS(NFS)
Intrusion Line Crossing detection, Intrusion detection, Exiting an Area detection, Enter Area detection, false alarm filtering
Detection Motion detection, tampering alarm, audio detection
General Functions Watermark, IP Address Filtering, Tampering Alarm ,Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Certifications CE LVD (EN 62368-1:2014+A11:2017); UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01); FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Power Supply DC 12V ± 25%, PoE (IEEE 802.3af )
Power Consumption Less than 4W
Working Environment -30° C ~ +60° C / Less than 95% RH
Ingress Protection IP67
Surge Protection 4KV
Material Metal
Weight 0.42kg (0.93lb)
Dimensions 110.5 x 94.1mm (4.4” x 3.7”)
NVR Features -
IP Video Input 16-Channel
Two-way Audio Input 1-Channel, RCA
Incoming Bandwidth 160Mbps
Outgoing Bandwidth 64Mbps
Remote Users 128
Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP
HDMI/VGA Output HDMI: 3840 x 2160 at 30fps; 1920 x 1080 at 60fps; 1920 x 1080 at 50fps; 1600 x 1200 at 60fps; 1280 x 1024 at 60fps; 1280 x 720 at 60fps; 1024 x 768 at 60fps; VGA: 1920 x 1080 at 60fps, 1920 x 1080 at 50fps, 1280 x 1024 at 60fps, 1280 x 720 at 60fps, 1024 x 768 at 60fps
Recording Resolution 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF
Audio Output 1-Channel, RCA
Audio Compression G.711A, G.711U
Synchronous Playback 16-Channel
Liveview Display 1 / 4 / 6 / 8 / 9 / 16
Corridor Mode Screen 3 / 4 / 5 / 7 / 9 / 10 / 12 / 16
Decoding Format H.265+ / H.265 / H.264
Liveview/Playback 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF
Capability 2 x 4K at 30fps, 4 x 4MP at 30fps, 5 x 3MP at 30fps, 8 x 1080P at 30fps, 16 x 720P at 30fps
SATA HDD Up to 2 SATA HDDs
Storage Up to 10TB for each disk
Camera Smart Detection Auto Tracking, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed
Smart Search Behavior Search
People Counting People Flow Counting, Crowd Density Monitoring
Smart Intrusion Prevention 8-Channel
Trigger Events Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection, IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
Network Interface 1 RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface Front panel: 1 x USB2.0, Rear panel: 1 x USB 3.0
Alarm In/Out 4-Channel / 1-Channel
Interface 16 RJ-45 10M/100M self-adaptive Ethernet Interface
Maximum Capacity Max: 30W for single port Max: 240W in total
Supported Standard IEEE 802.3af/at
Certification Certification: CE CE, FCC, UL, RoHS, WEEE; CE: EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017; FCC: Part15 Subpart B, ANSI C63.4
Power Supply 100 ~ 240 V AC / Power Consumption: Less than 10W (without HDD)
Working Envrionment -10°C to +55°C; Less than 90% RH (non-condensing)
Dimensions (WxDxH) 380mm × 315mm × 53mm (14.9” × 12.4” ×2.1”)
Weight (without HDD) 5.73 lbs (Up to 2.6kg)

XLGJB07WM03-G - Fixed Dome Outdoor Wall Mount

PART #: XLGJB07WM03-G View more

XLGWM03-D - Fixed Dome Wall Mount

PART #: XLGWM03-D View more

XLGJB03-G - Junction Box

PART #: XLGJB03-G View more

XLGCM24 - Fixed Dome Indoor Pendant Mount

PART #: XLGCM24 View more

Want to know more about LEGEND ?

You asked, we listened. Tailored to your requirements, Legend is our NDAA compliant brand. It offers the latest in cutting edge video technologies, enhanced features and a robust build.

Not all choices have to be hard choices, that’s why Legend offers a variety of unique models. If you are installing your first or hundredth project, you won’t have to spend hours trying decide which device fits your needs.

Legend allows you to protect your home like a multinational enterprise would, and protect your multinational as if it was your home. All the features you need are in Legend.

Amazing 4K (8MP) resolution for perfect picture clarity

True WDR (120 dB) to offer you the best image in the most demanding lighting conditions

H.265+ Compression helps reduce your storage by up to 90%

Record up to 256GB of footage directly on your camera

Legend CLOUD Application for Android and iOS

Fully NDAA Compliant
