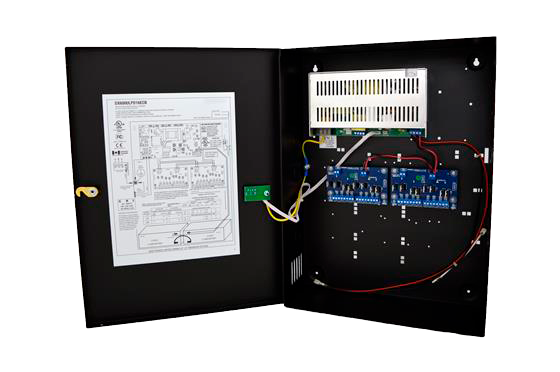

6A 12/24VDC ULC Listed Power Supply with 16 ECB OUT

Brand : INAXSYS

UPC: 685225400622

PART #: DX600ULPD16ECB

Provides independently protected channels with the maximum possible current flow. These are distribution boards used for Fire Alarms, Burglary Alarms, Access Control, and other general-purpose power applications. Each channel has overcurrent protection set at 2.5 Amps. Total combined power across all channels is limited by the power supply’s capacity.

Power Supplies ULC/UL Listed Power Supplies

Electric Current 6 Amps

Battery Capacity Up to 17Ah

Battery Charger 1.5Amp

Number of ouput Two boards of 8 ouput rated at max 2.0Amp

Input 120/240vac

Output 12/24vdc total of 7.5Amp

Specifications Sheet

18-08-2021 — DX600ULPD16ECB_6 Amp Power Distribution Board with Electronic Current Break_EN.pdf

User Manual

18-08-2021 — DX600UL by Inaxsys.pdf
