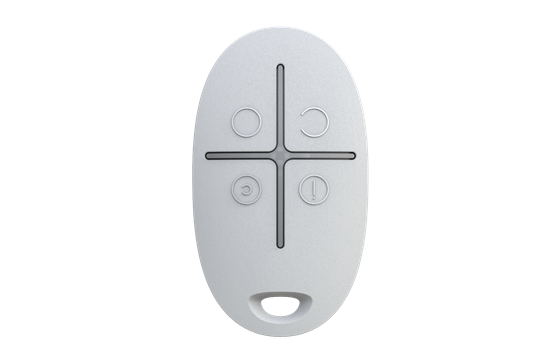

Security modes key fob (white)

Brand : Ajax
UPC : 850042389256
PART # : Ajax SpaceControl (9NA) white

Introducing Ajax SpaceControl: the key fob designed for convenient management of security settings. Featuring a panic button for emergency situations, it promptly alerts your inner circle and the monitoring station when activated. With authentication features to prevent forgery and advanced jamming detection, it ensures secure communication. In case of emergency, it calls for help and can activate full or partial alarm modes as needed. Additionally, it indicates command execution with color blinking for user reassurance.

Operational principles

When the key fob panic button is pressed, the device controls the security modes and transmits an alert signal to the Central Monitoring Station.

Features

Authentication protects the device from being forged and false alarm signals.

Installation and set up

Ready to use right away: There is no need to disassemble the detector because the battery is already in place. It can be linked to the hub on the mobile application with just one click. It takes only a few minutes to mount it on the SmartBracket.

Classification Four-button key fob with command delivery indication
Compatibility Operates with all Ajax hubs, and range extenders, ocBridge Plus, uartBridge
Number of buttons 4
False alarm prevention Yes, long press or double press (firmware version 5.54.1.0 or higher. Manufacture date from March 19, 2020)
Deactivation of the panic button Available
Power supply Battery: CR2032 battery; Power supply voltage: 3 V; Battery life — up to 5 years
Jeweller radio technology Communication range with central unit — up to 1,300 m in an open space; Two-way communication between devices; Operating frequencies — 868.0-868.6 MHz; Self-adjusting RF output power — up to 20 mW; Block encryption based on AES algorithm; Device polling period — 12−300 s
Operating temperature range -25°С to +50°С
Permissible humidity Up to 95%
Dimensions 65 × 37 × 10 mm
Weight 13 g
Certification Grade 2, CE
Warranty Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty.
Complete set SpaceControl keyfob, CR2032 battery (pre-installed), User’s guide
