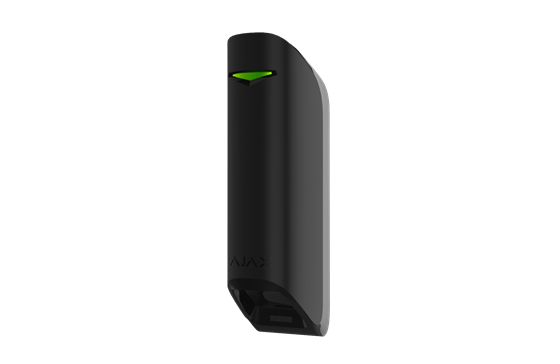

Wireless indoor curtain motion detector (black)

Brand : Ajax

UPC : 850042389065

PART # : Ajax MotionProtect Curtain (9NA) black

Introducing Ajax MotionProtect Curtain: a highly efficient motion detector with a detection range of up to 15 meters. Operating on a pre-installed battery, it ensures continuous functionality for up to 3 years. With an impressive transmission range of up to 1,700 meters from the hub, it offers extensive coverage for your security needs. Simplifying installation, it features a QR code for straightforward connection and a SmartBracket mount for quick setup. Plus, with the accompanying mobile app, configuring and testing becomes effortlessly convenient.

Narrow beam indoor motion detector.

Protects windows, doors, and valuables

At home

You can secure the exterior of your home and walk around the inside with ease thanks to the MotionProtect Curtain detectors. The technology will trigger an alert and contact the security firm if an unwanted person enters.

In a garage

When the MotionProtect Curtain is activated, burglars will not be able to sneak past the garage door. Even in a -10°C environment, the curtain detector will still function.

In a museum

Visitors are free to wander the exhibits as they choose. But if they step over the line and touch an artwork, an alarm will ring.

In a pet-friendly apartment

MotionProtect Curtain, when properly installed, protects your private property and ignores animals.

SPECIALIZED OPTICAL TECHNOLOGY

The MotionProtect Curtain was designed with an optical system consisting of two infrared sensors and a multifunctional mirror. The detector can now receive twice as much information about what's happening in the protected area thanks to this approach, allowing it to respond quickly to human presence.

QUICK RESPONSE TO THREATS

No matter how the invader enters, MotionProtect Curtain is always on guard. The detector analyses signals from both PIR sensors and provides an alert as soon as they enter its field of view.

Easy to set up

MotionProtect Curtain connects to the security system via the Ajax app: scan the QR code, add the detector to the room, and proceed with installation.

Classification Radio-interlinked photoelectric security detector

Type of detector Wireless

Motion detection distance Adjustable (from 6 to 15 meters)

Installation method Indoors only

Compatibility Operates with all Ajax hubs and range extenders

Sensing element Two PIR sensors

False alarm reduction Available, Correlation Signal Processing

Alarm signal delivery time 0.15 seconds

Detection angles Horizontally — 6°, Vertically — 90°

Time for motion detection From 0.3 to 2 m/s

Sensitivity Adjustable, 3 levels

Recommended installation height 2.4 meters

Power supply Battery: CR123A, 3 V

Battery life Up to 3 years

Jeweller radio technology Communication range with detectors — up to 1,700 m in an open space; Two-way communication between devices; Radio frequency bands: 866.0 – 866.5 MHz, 868.0 – 868.6 MHz, 868.7 – 869.2 MHz, 905.0 – 926.5 MHz, 915.85 – 926.5 MHz, 921.0 – 922.0 MHz (depends on the region of sale) Self-adjusting RF output power — up to 20 mW; Block encryption based on AES algorithm; Detector polling period — 12−300 s; Frequency hopping

Temperature sensor Available

Operating temperature range From −10°С to +40°С

Operating humidity Up to 95%

Anti-sabotage Fraud protection, Jamming notification, Tamper-resistant

Remote configuration and testing +

Protection class IP54

Dimensions 134 × 44 × 34 mm

Weight 118 g

Warranty Replacement and repair for a period of 24 months from the date of sale. The warranty does not cover batteries.

Complete Set MotionProtect Curtain motion detector, SmartBracket mounting panel, CR123A batteries (pre-installed), Bracket, Installation kit, User’s guide

Documentation & Support

Specifications Sheet — 28-08-2024 — [TDS] MotionProtect Curtain — EN.pdf
