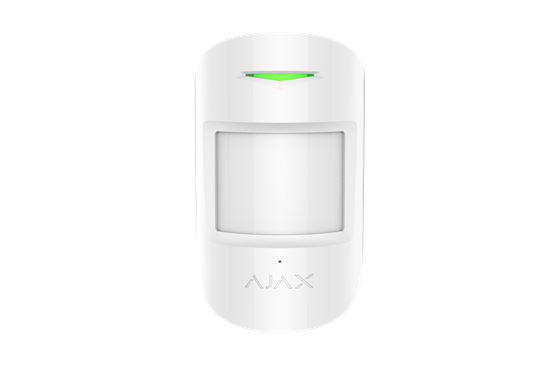

Wireless IR motion and glass break detector (white)

Brand : Ajax
PART #: Ajax CombiProtect (9NA) white

Introducing Ajax CombiProtect: the versatile wireless motion and glass break detector designed to ensure comprehensive security for your space. This device not only monitors the condition of glass but also effectively secures windows and entrances against potential intruders. With advanced features including authentication to prevent forgery, a dedicated glass break detector, pet immunity, and smart motion detection capabilities, Ajax CombiProtect offers unparalleled protection and peace of mind.

Operational principles

Motion and glass break detectors are combined into one unit in this device. Up to 12 metres away from the window, it can detect activity in the room and up to 9 metres away from the window, it can identify shattered glass.

Features

The device uses temperature adjustment to detect motion even in hot environments. It filters out erroneous warnings brought on by thunder, howling dogs, or passing trucks.

Installation and set up

Ready to use right away: There is no need to disassemble the detector because the battery is already in place. It can be linked to the hub on the mobile application with just one click. It takes only a few minutes to mount it on the SmartBracket.

Classification Electro-optical combined radio channel security detector
Type of detector Wireless
Installation method Indoors
Compatibility Operates only with Hub, Hub Plus, ReX, ocBridge Plus, uartBridge
Sensing element PIR sensor, electret microphone
Alarm signal delivery time 0.15 s
Motion detection distance Up to 12 m
Detection angles Horizontal — 88.5°, Vertical — 80°
Recommended installation height 2.4 m
Pet immunity Weight — up to 20 kg, Height — up to 50 cm
Break detection distance Up to 9 m
Detection angle 180°
Sensitivity Adjustable, 3 levels
Power supply Battery: CR123A battery; Power supply voltage: 3 V; Battery life — up to 5 years
Jeweller radio technology Communication range with central unit — up to 1,200 m in an open space; Two-way communication between devices; Operating frequencies — 868.0-868.6 MHz; Self-adjusting RF output power — up to 20 mW; Block encryption based on AES algorithm; Detector polling period — 12−300 s
Temperature sensor Available
Operating temperature range From -10°С to +40°С
Permissible humidity Up to 75%
Anti-sabotage Protection against fraud, Jamming detection, Tamper-resistant
Remote setting and testing +
Dimensions 110х65×50 mm
Weight 92 g
Certification Grade 2, CE
Warranty Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty.
Complete set CombiProtect combined motion and glass break detector, SmartBracket mounting panel, CR123A battery (pre-installed), Installation set, User’s guide
