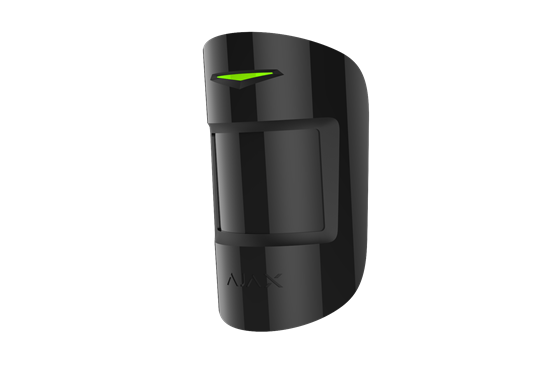

Wireless IR motion detector with microwave sensor (black)

Brand : Ajax
UPC : 850042389096
PART # : Ajax MotionProtect Plus (9NA) black

Introducing Ajax wireless motion detector, a crucial component in safeguarding your home or place of business from potential intrusions. Strategically placed on walls facing doors and other entry points, this detector utilizes smart motion detection technology to alert owners of any suspicious activity. With features such as jamming detection, encrypted communication channels, and tampering alarms, you can rest assured knowing your security system is robust and reliable. Operating for up to 5 years without needing a battery replacement, and equipped with pet immunity and temperature compensation, this detector offers both longevity and adaptability to various environments.

Operational Principles

A wireless motion detector with a microwave sensor alerts the owner to the first indicators of an entry in their house or place of business. designed for spaces with fireplaces, air conditioners, and other features that could cause light flickering, glare, or reflections.

Features

Designed for use in spaces with air conditioners and fireplaces. MotionProtect Plus detects and disregards draughts, curtains, and blinds, flickering lights, glare, and reflections.

INSTALLATION AND SET UP

Ready to use right away: There is no need to disassemble the detector because the battery is already in place. It can be linked to the hub on the mobile application with just one click. It takes only a few minutes to mount it on the SmartBracket.

Classification Electro-optical combined radio channel security detector
Type of detector Wireless
Installation method Indoors
Compatibility Operates only with Hub, Hub Plus, ReX, ocBridge Plus, uartBridge
Sensing element PIR sensor, microwave sensor (24 GHz)
Alarm signal delivery time 0.15 s
Motion detection distance Up to 12 m
Detection angles Horizontal — 88.5°, Vertical — 80°
Sensitivity Adjustable, 3 levels
Pet immunity Weight — up to 20 kg, Height — up to 50 cm
Power supply Battery: CR123A battery; Power supply voltage: 3 V; Battery life — up to 5 years
Jeweller radio technology Communication range with central unit — up to 1,200 m in an open space; Two-way communication between devices; Operating frequencies — 868.0-868.6 MHz; Self-adjusting RF output power — up to 20 mW; Block encryption based on AES algorithm; Detector polling period — 12−300 s
Temperature sensor Available
Operating temperature range From -10°С to +40°С
Permissible humidity Up to 75%
Anti-sabotage Protection against fraud, Jamming detection, Tamper-resistant
Remote setting and testing +
Dimensions 110х65×50 mm
Weight 96 g
Certification Grade 2, CE
Warranty Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty.
Complete set MotionProtect Plus motion detector, SmartBracket mounting panel, CR123A battery (pre-installed), Installation set, User’s guide
