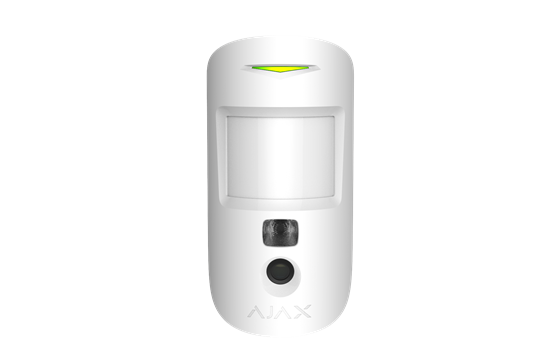

Wireless IR motion detector with photo camera (white)

Brand : Ajax
UPC : 850042389027
PART # : Ajax MotionCam (9NA) white

This wireless motion detector goes beyond traditional detection by capturing photos in response to alarms and upon request. With rapid photo delivery in just 9 seconds, it ensures swift and accurate visual verification of events. Equipped with an IR backlight, it captures clear photos even in low-light conditions. Advanced filtering capabilities reduce false alarms caused by motion, providing reliable detection. Additionally, temperature compensation ensures consistent performance in varying environments. With a battery life of up to 4 years, MotionCam PhOD offers long-lasting security and peace of mind.

PROTECT YOURSELF FROM FALSE ALARMS

To prevent motion detector false alarms, we have paired advanced optics with a software filter. It offers great detection accuracy when combined with expert installation.

NOT JUST A PICTURE

With MotionCam, you'll be aware of the situation at home even before the intruders known that they have been seen. The instant motion alarm is followed by a succession of images for a precise situational assessment.

SIMPLE INSTALLATION AND CONNECTION

A few touches will add the MotionCam detector to an Ajax security system. Assign the detector to the room in the Ajax app by opening it and scanning the QR code. The detector enclosure doesn't need to be taken apart. You can safely attach the detector on a flat surface or in a corner using the SmartBracket mounting plate.

Classification Electro-optical combined radio channel security detector with a photo camera
Detector type Wireless
Installation Indoors
Motion detection distance Up to 12 m
Pet immunity Weight: up to 20 kg, Height: up to 50 cm
Compatibility Only with Hub 2, Hub 2 Plus
Sensing element PIR-sensor
Alarm signal delivery time 0.15 sec
Detection angles Horizontal — 88.5°, Vertical — 80°
Camera view angle 90°
Photo verification Time to deliver a photograph with default settings: up to 9 sec; Photo quality: up to 640 × 480; Pictures in a series: 1-5 pcs
IR-backlight for night mode pictures Available
Sensitivity Adjustable, 3 levels
Recommended installation height 2.4 m
Power supply Batteries: CR123A (x2) Power supply voltage: 3 V Battery life: up to 4 years (up to 2.5 years if “Delay when entering” setting is activated)
Jeweller radio technology Communication range with detectors: up to 1,700 m in the line of sight; Two-way communication between devices; Operating frequencies: 868.0-868.6 MHz; Self-adjusting RF output power: up to 20 mW; Block encryption based on AES algorithm; Detector polling period: 12−300 s; Frequency hopping
Wings radio technology Transmission of visual alarm verifications
Temperature sensor Available
Operating temperature range From 0°C to +40°C (manufacture date up to June 1, 2020); From -10°C to +40°C (manufacture date from June 1, 2020)
Operating humidity Up to 75%
Anti-sabotage Fraud protection, Jamming notification, Tamper-resistant
CMS compatibility Motion alarms are transmitted to CMSs that support SIA (DC-09) and Contact ID protocols. Visual alarm verifications are transmitted to the Manitou, ABsistemDC(NG),WBB, Horus, V1/F1, Kronos, eLipse, Sentinel, MASterMind, Stages and SBN CMS, and Ajax PRO Desktop app
Remote configuration and testing +
Protection class IP50
Dimensions 135 х 70 x 60 mm
Weight 167 g
Warranty Replacement and repair for a period of 24 months from the date of sale. The warranty does not cover batteries.
Complete Set MotionCam motion detector, SmartBracket mounting panel, x2 CR123A batteries (pre-installed), Installation kit Quick, Start Guide
Certification Security Grade 2, Environmental Class II in conformity with the requirements of EN 50131
