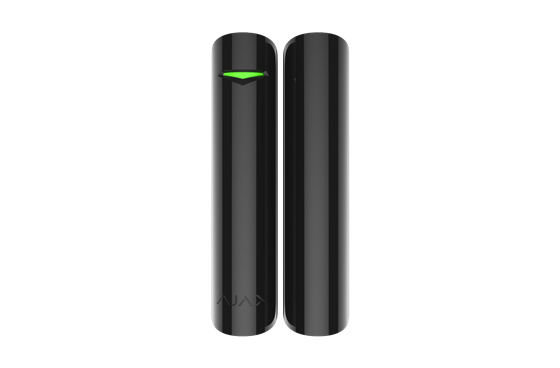

Wireless opening detector with shock and tilt sensors (black)

Brand : Ajax
UPC : 850042389485
PART # : Ajax DoorProtect Plus (9NA) black

Introducing Ajax DoorProtect Plus: the advanced wireless magnetic detector that provides early alerts for potential intrusions through doors or windows. With authentication features to prevent forgery and the ability to detect changes in inclination angle, shocks, and vibrations, it offers comprehensive security. Equipped with jamming detection and communication channel encryption, it ensures reliable communication and protection against tampering. External contacts are also available for seamless integration with third-party detectors. With up to 5 years of battery life, it offers long-lasting peace of mind for your security needs.

Operational principles

Using high-end reed switches built in Britain that are affected by the magnetic field, the device can detect when a door or window is being opened. It has a transmitter mode that enables it to communicate with the hub by sending a signal from the connected sensor.

Features

Even windows left open for ventilation are protected by the device. An alarm is sent to the hub when the accelerometer detects changes in the vertical slope angle, bangs, or vibrations.

Installation and set up

Ready to use right away: There is no need to disassemble the detector because the battery is already in place. It can be linked to the hub on the mobile application with just one click. It takes only a few minutes to mount it on the SmartBracket.

Compatibility Hubs: All Ajax hubs and Radio signal range extenders: All Ajax range extenders
Jeweller communication technology Proprietary wireless technology to transmit alarms and events; Features: Two-way communication. Advanced anti-sabotage. Block encryption featuring a dynamic key. Instant notifications. Remote configuration via the Ajax apps; Radio frequency bands 866.0 – 866.5 MHz, 868.0 – 868.6 MHz, 868.7 – 869.2 MHz, 905.0 – 926.5 MHz, 915.85 – 926.5 MHz, 921.0 – 922.0 MHz (Depends on the sales region); Maximum effective radiated power (ERP) up to 20 mW; Radio signal modulation GFSK; Radio communication range up to 1,200 m, between the detector and a hub (or radio signal range extender) in an open space; Encrypted communication: All the data stored and transmitted are protected by block encryption with a dynamic key; Frequency hopping: To prevent radio interference and radio signal interception.
Detection / Sensitive elements 1 × accelerometer, 1 × reed switch. The magnet should be installed to the right of the detector.
Additional detector connection Third-party wired detector with the NC (normally closed) contact type.
Shock sensitivity 3 levels. Adjusted by a PRO or user with admin rights in the Ajax app.
Tilt sensor activation threshold from 5° to 25°. Adjusted by a PRO or user with admin rights in the Ajax app.
Recommendations The magnet is mounted to the right of the detector. It can be placed horizontally. Do not install the detector with the LED indicator facing down, as this may cause it to fall and fail due to damage. Device is designed for indoor use only.
Anti-sabotage protection Tamper alarm: Notifications of attempts to tear off the detector from the surface or remove it from the mounting panel; Protection against spoofing: Device authentication
Power supply 1 × CR123A battery. Up to 5 years of battery life.
Dimensions Ø 20 × 90 mm
Weight 29 g
Operating temperature range from −10 °C to +40 °C
Operating humidity up to 75%
Protection class IP50
Colours Black / White
Complete set DoorProtect Plus Jeweller, SmartBracket mounting panel, CR123A battery (pre-installed), Big magnet, Small magnet, Terminal to connect a third-party detector, Installation kit, Quick start guide
Warranty 24 months
Compliance with standards Compliance with the security alarm standards: EN 50131-1:2006/A1:2009/А2:2017/A3:2020, EN 50131-2-6:2008, EN 50131-2-8:2016, PD 6662:2017; Security Grade (SG): 2; Restriction of Hazardous Substances (RoHS): EN IEC 63000:2018; Electromagnetic Compatibility Directive (EMC): EN 55032:2015+A11:2020, EN 55035:2017+A11:2020; Environmental class according to EN 50131: ||; INCERT: T 031:2017+A1:2018+A2:2022; PSTI UK: Schedule 2
