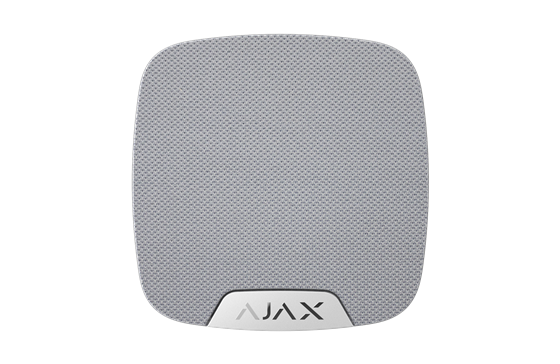

Wireless siren with a LED connector (white)

Brand : Ajax
UPC : 856963007804
PART # : Ajax HomeSiren (9NA) white

Introducing Ajax HomeSiren: the wireless indoor siren designed to generate an alarm when a detector is activated. Installed indoors, it serves to raise alerts in the event of potential dangers or to deter burglars. Featuring a built-in LED, it indicates the armed/disarmed state, while an external LED can be connected to the siren if needed. With customizable sound levels and alarm lengths during detector activation, Ajax HomeSiren offers tailored security solutions for your home.

Operational principles

The device emits an audible alarm when a detector is activated. The mobile application allows you to adjust the alarm's volume and duration.

Features

There is a connector for an external LED. To check on the status of your security system, mount it outside your home or place of business.

Installation and set up

Ready to use right away: There is no need to disassemble the detector because the battery is already in place. It can be linked to the hub on the mobile application with just one click. It takes only a few minutes to mount it on the SmartBracket.

Classification Radio channel security sounder
Type of detector Wireless
Installation method Indoors
Compatibility Operates only with Hub, Hub Plus and ReX
Type of notification Sound
Connector for external LED Available
Sound volume level Adjustable, 81−105 dB at a distance of 1 m
Alarm length Adjustable, 3−180 s
Indication of armed/disarmed status Yes
Alarm signal delivery time 0.15 s
Power supply Battery: Two CR123A batteries; Power supply voltage: 3 V; Battery life — up to 5 years
Jeweller radio technology Communication range with central unit — up to 2,000 m in an open space; Two-way communication between devices; Operating frequencies — 868.0−868.6 MHz; Self-adjusting RF output power — up to 20 mW; Block encryption based on AES algorithm; Device polling period — 12−300 s
Temperature sensor Available
Operating temperature range -10°С to +40°С
Permissible humidity Up to 75%
Protection class of body IP50
Anti-sabotage Protection against fraud, Jamming detection, Tamper-resistant
Remote setting and testing +
Dimensions 75х76х27 mm
Weight 97 g
Certification Grade 2, CE
Warranty Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty
Complete set HomeSiren siren, SmartBracket mounting panel, Connector for LED indicator, Two CR123A batteries (pre-installed), Installation set, User’s guide
