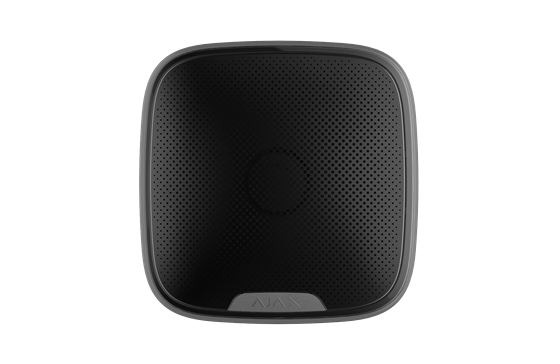

Wireless siren with LED frame (black)

Brand : Ajax
UPC : 850042389263
PART # : Ajax StreetSiren (9NA) black

Introducing Ajax StreetSiren: the versatile LED-framed, piezoelectric buzzer, wireless siren. This device can be installed indoors or outdoors, offering flexible security solutions. Equipped with tamper protection against enclosure opening and an accelerometer to detect detachment, it ensures reliable operation. With an IP54 protection class, it withstands various weather conditions, operating in temperatures ranging from -25°C to +50°C. Ajax StreetSiren keeps you informed about alarms, delays, security mode changes, and door openings. Plus, with up to 5 years of operation on a pre-installed battery and the option to be supplied from a 12V backup power supply, it provides long-lasting security support.

Features

The buzzer can be configured to produce a sound between 85 and 113 dB for a period between 3 and 180 seconds, or it can be completely silent and just respond with an LED indicator. The hermetically sealed body of StreetSiren has an IP54 level of ingress protection rating.

Operational principles

In less than a second, StreetSiren responds to alarms and tampers triggering by turning on the buzzer and LED frame. The accelerometer activates when someone tries to move or disassemble the siren, and the tamper button activates when the enclosure is opened or broken.

Installation and set up

Ready to use right away: There is no need to disassemble the detector because the battery is already in place. It can be linked to the hub on the mobile application with just one click. It takes only a few minutes to mount it on the SmartBracket.

Classification Light and sound radio channel security sounder
Type of detector Wireless
Installation method Indoors/outdoors
Compatibility Operates only with Hub, Hub Plus, Hub 2 and ReX
Type of notification Sound/light
Sound volume level Adjustable, 81−113 dB at a distance of 1 m
Alarm length Adjustable, 3−180 s
Indication of armed/disarmed status Yes
Alarm signal delivery time 0.15 s
Power supply Battery: Four CR123A batteries, 3 V; Mains supply: DC 12 V±20℅
Battery life Up to 5 years
Jeweller radio technology Communication range with central unit — up to 1,500 m in an open space; Two-way communication between devices; Radio frequency bands: 866.0 – 866.5 MHz, 868.0 – 868.6 MHz, 868.7 – 869.2 MHz, 905.0 – 926.5 MHz, 915.85 – 926.5 MHz, 921.0 – 922.0 MHz (depends on the region of sale); Self-adjusting RF output power — up to 25 mW; Block encryption based on AES algorithm; Device polling period — 12−300 s
Temperature sensor Available
Operating temperature range From -25°С to +50°С
Permissible humidity Up to 95%
Protection class of body IP54
Anti-sabotage Protection against fraud, Jamming detection, Tamper-resistant
Remote setting and testing +
Dimensions 200х200х51 mm
Weight 528 g
Warranty Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty
Service life 10 years
Complete set StreetSiren siren, SmartBracket mounting panel, 4 batteries CR123A (pre-installed), Installation set, User’s guide
