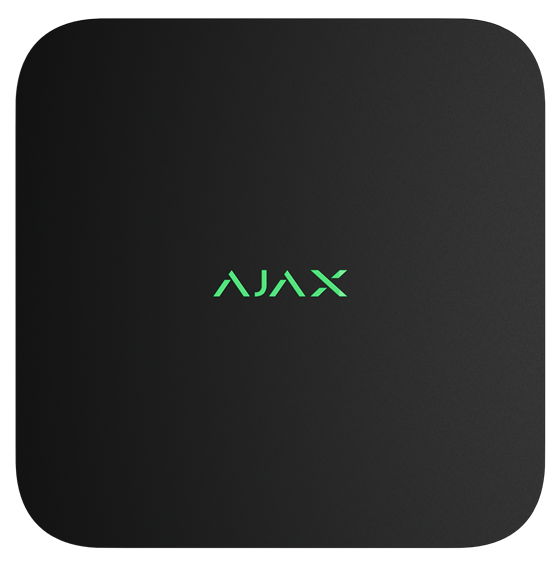

8-Channel Network video recorder (black)

Brand : Ajax

UPC : 850042389621

PART # : Ajax NVR (8ch) (9NA) black

Introducing Ajax Systems NVR, an advanced security solution featuring peer-to-peer transmission and TLS encryption for unparalleled data security. With its high stability, Ajax NVR provides reliable video surveillance capabilities, ensuring peace of mind for users.

Restricted visual data access

The Privacy tab empowers trusted accounts to control real-time user access to specific video streams and photos. Regulate who can view, save, manage content, and even listen to audio.

Fortified account security

Access video streams through the app, securing Ajax accounts with either a password or biometrics. Two-factor authentication and session control add an extra layer of security.

Elevated Archive Security

All visual data is stored on the drive in a format accessible solely through Ajax NVR with your credentials. Positioned behind SmartBracket, the drive sends alerts if tampered with. Continuous HDD status checks prompt push notifications to the Ajax apps in case of overheating or low storage.

EMPOWERING VIDEO SECURITY EXCELLENCE

Ajax NVR seamlessly merges video surveillance with Ajax systems, delivering unmatched system responsiveness for instant video archive access on the fly. The extensive compatibility ensures integration with nearly any IP camera, incorporating intrusion protection and automation seamlessly. Trusted globally, Ajax NVR upholds the legacy of a professional security system, chosen by millions of users across the world.

TAILORED VIDEOWALL FOR SIMULTANEOUS OVERSIGHT

Merge all your visual data into a user-friendly interface. The Videowall tab consolidates snippets from IP cameras and MotionCam series detectors, presenting a holistic view of your space. Personalize tile arrangements based on your preferences. The videowall is accessible on both mobile and desktop apps.

End user-controlled system

Post-installation, only the end user retains control, eliminating hidden access points. Access for PRO accounts is temporary, granted only to those authorized by the system administrator to view the video stream in the Ajax system.

EFFORTLESS ARCHIVE EXPLORATION

Navigate the archive effortlessly by clicking on an event in the notification log, swiftly guiding you to the specific camera recording at the event's timestamp. Advanced features make everything just a click away. No more sifting through endless recordings or waiting for hours to find that crucial clip. Benefit from unparalleled system responsiveness and seamless control. The lightning-fast interface provides dual streams and immediate archive access, eliminating typical wait times. Instantly jump to a specific timestamp with one click – no more tedious searching.

SWIFT AND SECURE DATA TRANSMISSION

Ajax JetSparrow serves as the core of Ajax video, handling all video transmission, storage, and management. We've introduced JetSparrow, our proprietary video transmission technology, ensuring an ultra-fast VMS experience. This streaming technology ensures that browsing the local HDD archive is as smooth as navigating cloud storage. Consequently, archive browsing becomes remarkably efficient, and live views commence without any delays.

INSTANT EVENT-TO-VIDEO VERIFICATION

System notifications within the app allow easy navigation to the specific camera for incident viewing. This makes the app an all-encompassing solution for both security and video surveillance.

BUILT-IN MOTION DETECTION

Optimize your video archive by configuring the pixel movement detection feature. Define specific zones to trigger recordings only when movement occurs in selected areas. This conserves HDD space and streamlines archive navigation.

EFFORTLESS INSTALLATION AND SETUP

Connecting your NVR has never been easier. No need to rush to each unit or manually add users. Everything seamlessly configures through the app, whether on-site or remotely accessed. Monitor system health, including remaining HDD space, temperature, CPU load, RAM usage, etc.

Compatibility Control panels: Hub; Hub Plus; Hub 2 (2G); Hub 2 (4G); Hub 2 Plus; Hub Hybrid (2G); Hub Hybrid (4G)

NVR models 8-channel; With up to 4K resolution (25/30 FPS)

IP cameras ONVIF (Profile S/T); RTSP

Storage hard drive with a capacity of up to 16 TB (SATA connectivity, 3.5” size) (HDD not included)

Decoding formats H.265 / H.264

Bandwidth up to 100 Mbps

Recommendations The device operating voltage is 110–240 V~; NVR is designed for indoor installation only.

Ethernet up to 100 Mbps

Bluetooth BLE frequency band: 2.400–2.4835 GHz (To set up an Ethernet connection)

Radio signal power 2.5 mW (100 mW limit)

Motion detection NVR has built-in software to detect the motion in the frame. Possible to switch between image analysis by NVR or camera algorithms.

In-app video management system Videowall that combines images from all connected cameras; Event filters; Timeline with smooth preview.

Visual verification of Ajax alarms NVR allows setting up a scenario in which Ajax detectors trigger specific cameras to start recording. This results straight in mobile and desktop (monitoring) apps.

Privacy Access rights distribution for users in mobile apps and for monitoring operators in PRO Desktop.

Power supply, Main 110–240 V~, 50/60 Hz, 0.6 A, Up to 24 W of mains power consumption.

Power supply, Backup Batterie CR2032, 3 V, Uniquement pour alimenter l'horloge système.

Tamper alarm Notifications about attempts to detach the device from the surface or remove it from the mounting panel.

Dimensions 193 × 193 × 47 mm

Weight 700 g (Without a hard drive)

Operating temperature range from 0°C to +40°C

Operating humidity up to 75%

Protection class IP20

Colours Black or White

Complete set NVR; SmartBracket mounting panel; Power cable; Ethernet cable; Installation kit; Quick start guide

Warranty 24 months

Documentation & Support

Specifications Sheet — 28-08-2024 — TDS - EN - Ajax NVR (1).pdf
