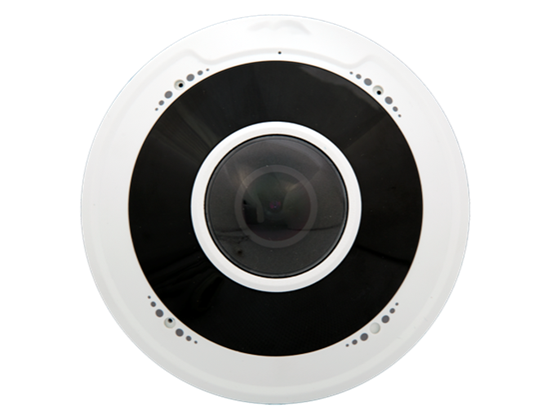

5.1 MP FISHEYE CAMERA

Brand : LEGEND

UPC : 685225601098

PART # : INLGDO5IRHEM

Introducing our Fisheye Network Camera, designed to provide comprehensive surveillance with a single device. This camera features a high-quality 5MP image sensor with a 1/2.8’’ CMOS sensor, delivering sharp and detailed images.

The camera's ultra-wide-angle lens offers a 360° panoramic view, ensuring complete coverage without blind spots. Supporting H.265+ and H.264 encoding, it efficiently compresses video data for optimized storage and bandwidth usage.

Equipped with smart IR technology, the camera provides clear night vision up to 10 meters (33 feet). Advanced features include a heat map function for enhanced analysis of movement patterns within the monitored area.

The camera includes 1 alarm input and 1 output, as well as 1 audio input and 1 output, allowing for versatile integration into security systems. It also supports Micro SD cards up to 256GB, offering ample local storage.

Ideal for wide-area monitoring, our Fisheye Network Camera combines high-resolution imaging, smart functionality, and extensive coverage to meet diverse surveillance needs.

Advanced Compression Standards

Supports advanced video compression standards including Ultra 265, H.265, H.264, and MJPEG, enabling more efficient video storage and streaming.

Smart IR

5MP network camera features day/night functionality, smart IR with up to 10m IR distance, and an optical glass window for higher light transmittance, as well as an IR anti-reflection window to enhance infrared transmittance.

Multiple Features

The alarm and audio input/output features allow for efficient monitoring and communication. The 256 G Micro SD card support provides ample storage for recording and archiving footage, and the IK10 vandal resistant and IP66 protection ensure durability and protection against tampering and harsh weather conditions, additionally, support for PoE power supply simplifies installation and reduces costs.

Image Sensor 1/2.8’’, 5.0 megapixel, progressive scan, CMOS

Minimum Illumination Color: 0.01 Lux (F2.0, AGC ON); 0 Lux with IR

IR On/Off Control Auto/Manual

DORI Distance Detect: 31.5m; Observe: 12.6m; Recognize: 6.3m; Identify: 3.2m

Compression H.265+ / H.265 / H.264 / MJPEG

Frame Rate Main Stream: 5MP (2592*1944): Max 30fps. Sub Stream: 1080P (1920*1080): Max 30fps; 720P (1280*720), Max 30fps. Third Stream: D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps.

Edge Storage Triple

Ceiling mount Fisheye view, Fisheye+3PTZ, Fisheye+4PTZ, Fisheye+8PTZ 180° Panoramic, 360° Panoramic+1PTZ, 360° Panoramic+6PTZ

Wall mount Fisheye view, Panoramic, Panoramic+3PTZ, Panoramic+4PTZ, Panoramic+8PTZ

H.264 code profile Baseline profile, Main profile, High profile

Statistical Analysis Heat Map

Minimum Illumination Color: 0.01 Lux (F2.0, AGC ON); 0 Lux with IR

Focal Length 1.4mm

Two-way Audio Supported

Mount Type Table, Wall & Ceilling

Audio Bit Rate 64 Kbps

Protocols IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/ TLS, SSH

Security Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF, Password protection, Strong password, HTTPS encryption

Compatibility ONVIF (Profile S, Profile G, Profile T), API, SDK

Management Software LEGEND VMS / ARKIV

Ethernet 1 RJ45 10M/100M Base-TX Auto-adaptive Ethernet

Scanning System Progressive

Electronic Shutter Speed Auto/Manual, 1 ~ 1/100,000s

S/N Ratio More than 55dB

IR Distance Distance up to 10M (33ft)

Wide Dynamic Range 120dB

Day/Night IR-cut filter with auto switch (ICR)

Wavelength 850nm

White Balance Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto 2

Noise Reduction 2D/3D DNR

Flip Normal / Flip Vertical / Flip Horizontal / 180°/ 90°Clockwise / 90°Anti-clockwise

Privacy Mask Up to 4 areas

On-Screen Display (OSD) Up to 8 OSDs

Smart IR Supported

Defog Digital Defog

BLC Supported

Region of Interest Up to 8 areas

General Functions Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication

Lens Type Fixed

Viewing Angle 360°

Video Bit Rate 128 Kbps~16 Mbps

Table mount Fisheye view, Fisheye+3PTZ, Fisheye+4PTZ, Fisheye+8PTZ 180° Panoramic , 360° Panoramic+1PTZ, 360° Panoramic+6PTZ

Decoding Mode Support software decoding

Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above

User/Host Up to 32 users. 2 user levels: administrator, operator and common user

Basic Detection Motion detection, Ultra motion detection, Tampering alarm, Audio detection

Audio Compression G.711

Suppression Supported

Sampling Rate 8KHZ

Built-in Microphone 2 Supported

Audio I/O Input: impedance 35 kΩ; amplitude 2 V [p-p] Output: impedance 600 Ω; amplitude 2 V [p-p]

Alarm I/O 1/1

Edge Storage Micro SD slot, up to 256 GB

Network Storage ANR, NAS(NFS)

EMC CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)

Power Supply DC 12V ± 25%, PoE (IEEE 802.3af)

Power Consumption Less than 8.5W

Working Environment -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)

Safety CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)

Material Metal + Plastic

Weight 0.79 lb (0.36kg)

Dimensions Φ125 × 43.7 mm (Φ4.9” × 1.7”)

Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Protection IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) 4KV (Surge Protection)

Reset Button Supported

Power Interface Ø 5.5mm coaxial power plug
