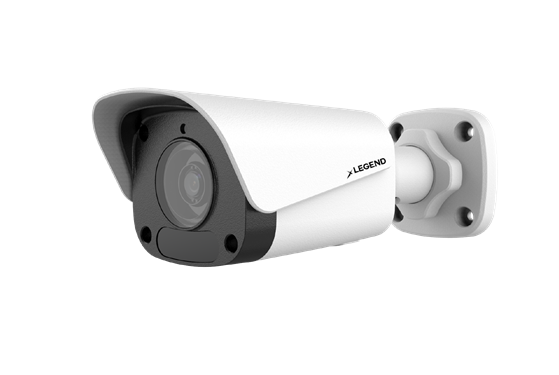

2.1 MP Vandal Proof Fixed Bullet Network Camera w/IR and Microphone, 2.8mm

Brand : LEGEND

UPC : 685225603740

PART # : INLGBO2IRWF

Legend: Smarter, Stronger, Fully NDAA Compliant

The INLGBO2IRWF is a 2.1MP fixed bullet camera featuring a 1/2.7” CMOS sensor, 120dB True WDR for enhanced image quality in challenging lighting, and Smart IR with up to 30m (98ft) night vision. It supports H.265+ and H.264 encoding for efficient video compression and includes a Micro SD slot for up to 128GB of local storage.

Advanced Compression Standards

Supports advanced video compression standards including Ultra 265, H.265, H.264, and MJPEG, enabling more efficient video storage and streaming.

Smart IR

2MP network camera features day/night functionality, smart IR with up to 30m IR distance, and an optical glass window for higher light transmittance, as well as an IR anti-reflection window to enhance infrared transmittance.

2D/3D DNR Technology

Uses an anti-reflective window for enhanced infrared transmittance and utilizes advanced 2D/3D DNR technology for superior digital noise reduction.

Multiple Features

This camera is designed for harsh outdoor environments with a wide temperature range of -35°C to 60°C, and features surge protection up to 2KV and Ingress Protection rating of IP67. The camera is made of durable metal material to withstand tough weather conditions.

Image Sensor 1/2.7”, 2 Megapixel, progressive scan, CMOS

Minimum Illumination Colour: 0.001 lux ( F1.0, AGC ON), 0 lux with IR

Features HLC; BLC; WDR 120dB

Basic Detection Cross Line detection, Intrusion detection, Motion detection, Ultra motion detection, Tampering alarm, Audio detection

Flip Normal / Flip Vertical / Flip Horizontal / 180°/ 90°Clockwise / 90°Anti-clockwise

Privacy Mask Up to 4 areas

Advanced Detection Tools Human Body Detection

On-Screen Display (OSD) Up to 4 OSDs

Region of Interest Up to 8 areas

Wavelength 850nm

Scanning System Progressive

Electronic Shutter Speed Auto/Manual, 1~1/100,000 s

S/N Ratio More than 56dB

IR Distance Distance up to 30m (98ft)

Day/Night IR-cut filter with auto switch (ICR)

Smart IR Supported

White Balance Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto 2

Noise Reduction 2D/3D DNR

Video Stream Double

Defog Digital Defog

Lens Type Fixed

Focal Length 2.8mm

Viewing Angle H: 112.9°; V: 59.1°; D: 121.2°

Pan/Tilt/Rotate Pan: 0° ~ 360°; Tilt: 0 ~ 90°; Rotate: 0 ~ 360°

DORI Distance Detect: 42.0m; Observe: 16.8m; Recognize: 8.4m; Identify: 4.2m

Compression H.265+, H.265, H.264, MJPEG

H.264 code profile Baseline profile, Main profile

Frame Rate Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360 ,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps

Video Bit Rate 128 Kbps ~ 6144 kbps

Edge Storage Micro SD, up to 128GB

Network Storage ANR, NAS(NFS)

Ethernet 1 RJ45 10M/100M Base-TX Ethernet

Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, SNMP

Compatibility ONVIF (Profile S, Profile G, Profile T), API, SDK

Security Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF

User/Host Up to 32 users. 2 user levels: administrator and common user

Management Software LEGEND VMS / ARKIV

Web Browser Live view with plug-in required: Firefox 52 and below, Chrome 41 and below, IE9+ // Live view without plug-in: Firefox 58.0+, Chrome 57.0+, Edge 16+

Audio Compression G.711

Suppression Supported

Sampling Rate 8KHZ

Built-in Microphone Supported

EMC CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035) FCC (FCC 47 CFR part15 B)

Safety CE LVD (EN 62368-1) CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)

Power Supply DC 12V±25%, PoE (IEEE 802.3af)

Power Consumption Less than 7.0W

Working Environment -30°C to 60°C (-22°F to 140°F) / Less than 95% RH

Material Metal + Plastic

Protection IP67 (IEC 60529) 4KV (Surge Protection)

Weight 0.86 lb (0.39kg)

Dimensions 165 × 63 × 62mm (6.5” × 2.5” × 2.5”)

IR On/Off Control Auto/Manual

General Function Watermark, IP address filtering, alarm input, alarm output, access Policy, ARP protection, RTSP authentication, user authentication

Audio Bit Rate 64 Kbps

Power Interface Ø 5.5mm coaxial power plug

Documentation & Support

Specifications Sheet — 19-08-2025 — INLGBO2IRWF - 2.1MP Vandal Proof Fixed Bullet Camera with IR, IN-OUT, 2.8mm.pdf
