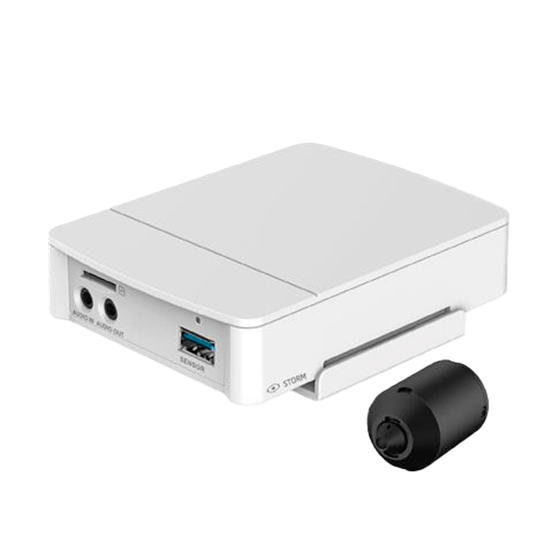

2MP Network Covert Pinhole Network Camera

Brand : STORM

UPC : 685225603344

PART # : INSPH2F

The 2MP H.265 Covert Pinhole Camera delivers discreet, high-quality surveillance in challenging environments. Featuring a 2MP STARVIS™ CMOS sensor, it captures crisp, detailed 1080P footage at up to 60 frames per second, ideal for covert security applications.

With H.265 encoding, this camera provides high compression and ultra-low bit rate performance, maximizing storage efficiency without sacrificing image clarity. Equipped with a 2.8mm fixed pinhole lens and an 8-meter cable, this covert camera is well-suited for tight installations requiring unobtrusive yet reliable monitoring.

Image Sensor 1/2.8” 2Megapixel progressive scan STARVIS™ CMOS

Effective Pixels 1920(H)x1080(V)

RAM/ROM 512MB/32MB

Scanning System Progressive

Minimum Illumination 0.02Lux/F2.4 (Color,1/3s,30IRE); 0.08Lux/F2.4 (Color,1/30s,30IRE); 0.01Lux/F2.4 (B/W,1/3s,30IRE); 0.04Lux/F2.4 (B/W,1/30s,30IRE)

Ratio S/N More than 50dB

IR Distance N/A

IR LEDs N/A

Day/Night Electronic

Blacklight Compensation BLC / HLC / WDR(120dB)

White Balance Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control Auto/Manual

Noise Reduction 3D DNR

Digital Zoom 16x

Privacy Masking 4 Areas

Lens Type Fixed

Mount Type Board-in

Focal Length 2.8mm

Max. Aperture F2.4

Viewing Angle H:104°, V:59°

Optical Zoom N/A

Focus Control Fixed

DORI Distance Detect 38m(126ft); Observe 15m(50ft); Recognize 8m(25ft); Identify 4m(12ft)

Video Compression H.265+ / H.265 / H.264+ / H.264

Resolution 1080P(1920×1080) / 1.3MP(1280x960) / 720P(1280x720) D1(704×576 / 704x480) / VGA(640x480) / CIF(352×288 / 342x240)

Frame Rate Main Stream: 1080P(1 to 50/60fps); Sub Stream: D1 (1 to 25/30fps); Third Stream: 1080P(1 to 25/30fps)

Bit Rate H.264: 24Kbps ~ 9472Kbps; H.265: 14Kbps ~ 5632Kbps

Audio Compression G.711a/ G.711Mu/ AAC/ G.726

Smart Detection Tripwire, Intrusion, Object Abandoned/Missing

Adv. Intelligent Functions Face Detection

Network Ethernet RJ-45 (10/100Base-T)

Protocol HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP; DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP; Bonjour;802.1x;Multicast;ICMP;IGMP;SNMP

Compatibility ONVIF, PSIA, CGI

Maximum User Access 10 Users/20 Users

Smart Phone iOS, Android

Video Interface N/A

Audio Interface 1/1 canal Entrée/Sortie

RS232 1 port

Alarm 2 channel In: 5mA 5VDC; 2 channel Out: 1A 30VCC / 0.5A 50VAC

Power Supply DC12V, PoE(802.3af)(Class 0)

Power Consumption Less than 6W (working together with lens unit)

Working Environment -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Ingress Protection N/A

andal Protection N/A

Dimensions 110.0mm×82.7mm×24.0mm

Specifications Sheet

18-08-2021 — INSPH2F Covert Pinhole Camera 2021.pdf
