Inputs/Outputs
With Inputs/Outputs
Lens Type
Fixed
Audio In/Out
With Audio Inputs and/or Outputs
Wide Dynamic Range
WDR less than 120dB
Form Factor

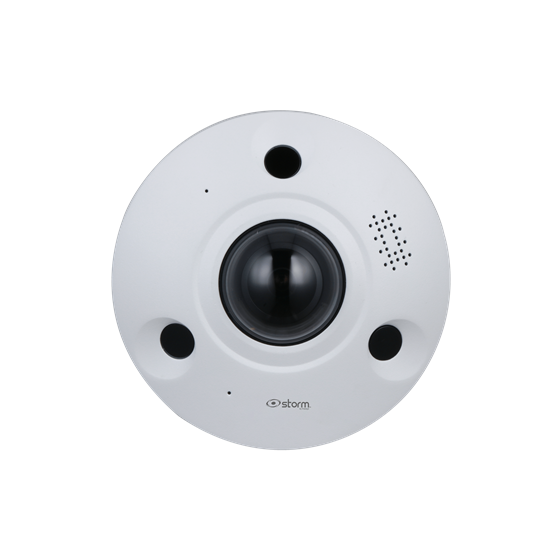

Hemispheric Cameras
Megapixels
8 Megapixels
Image Sensor
1/1.7” 8 Megapixel progressive scan CMOS
Effective Pixels
3280(H) x 2480(V)
RAM/ROM
4GB / 2GB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual 1/3 s–1/100,000 s
Minimum Illumination
0.01 Lux at F2.0 (Color, 30IRE); 0.001 Lux at F2.0 (B/W, 30IRE) 0 Lux (Illuminator on)
S/N Ratio
More than 56 dB
IR Distance
10m(33ft)
IR LEDs
3
Day/Night
Auto(ICR) / Color / B/W
Backlight Compensation
BLC / HLC / DWDR
White Balance
Auto / Natural / street lamp / Outdoor / Manual / Regional Custom
Gain Control
Manual
Noise Reduction
3D NR
Lite AI
People Counting; Intelligent Search; Intrusion; Tripwire; Heat map
Defog
Yes
Region of Interest
Yes (4 areas)
Privacy Masking
4 areas
Lens Type
Fixed Lens
Mount Type
M12
Focal Length
1.29 mm
Max. Aperture
F2.0
Viewing Angle
Horizontal: 185.0° Vertical: 180.0°
DORI Distance
Detect: 27.9 m (91.54 ft) / Observe: 11.2 m (36.75 ft) / Recognize: 5.6 m (18.37 ft) Identify: 2.8 m (9.19 ft)
Compression
H.265+, H.264+, H.265, H.264, MJPEG (only supported by the sub stream)
Resolution
3280 × 2480 / 2880 × 2160 / 2048 × 1536 / 1280 × 960 / D1 (704 × 576/704 × 480) / CIF (352 × 288/352 × 240)
Frame Rate
Main Stream: 3280 × 2480 (1 to 25/30 fps); Sub stream: 704 × 576 (1 fps to 25/30 fps); Third stream: 1280 × 960 (1 fps to 25/30 fps)
Bit Rate
H264: 8 kbps–16384 kbps; H265: 3 kbps–13891 kbps
People Counting
Supports 4 rules to count the number of people entering, exiting, and staying separately. It will trigger alarm linkage when the number of people who entering, exiting or staying exceeds the threshold. It can display and export reports based on year, month, day, week, day or custom time. // Supports 4 rules to count the number of people in area and will trigger alarm linkage when the average strand time or people number in the area exceeds the threshold. It can display and export reports based on year, month, day, week, day or custom time.
Intelligent Search
Use STORM Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Smart Features
Intrusion, Tripwire
Audio Compression
PCM; G.711A; G.711Mu; G.726; G.723
Audio I/O
1/1; Built-in microphone
Alarm I/O
2 channel In: 5mA 3V–5V DC; 2 channel Out: 1,000mA 30V DC/500mA 50V DC
Network Port
RJ-45 (10/100/1000 Base-T)
Cyber Security
Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP / MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade
Storage
SFTP; FTP; NAS; Micro SD Card up to 256 GB
Management Software
STORM, STORM+, ARKIV
Protocol
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Compatibility
ONVIF (Profile T/S/G), CGI, Milestone, Genetec
Power Supply
12V DC / POE+ (802.3at)
Power Consumption
Less than 13.9W
Working Environment
-40°C to +55°C (–40 °F to +131 °F) / Less than 95% RH
Protection
IP67, IK10
Dimensions
59.8 mm × 149.8 mm (2.35’’ × 5.9’’)
Weight
2.67 lbs (1.21 kg)
