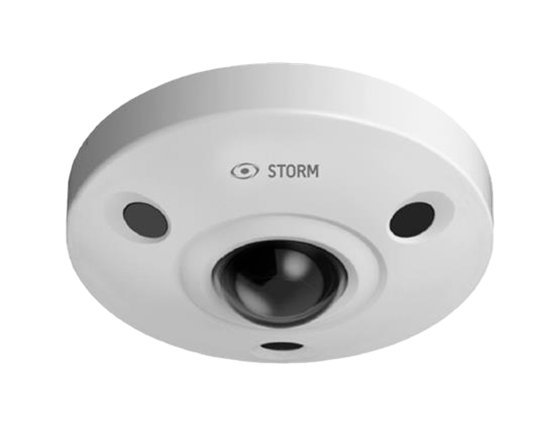

12 MP 360 Degree Network Hemispheric IR Camera

Brand : STORM

UPC: 685225606604

PART #: INSDO12IRHEM

The 12MP H.265 360-Degree Network Hemispheric IR Camera offers comprehensive coverage with advanced imaging and analytics capabilities. Built around a 12MP progressive scan CMOS sensor, this camera delivers full 360-degree monitoring, dewarping modes, and H.265+ encoding for efficient, high-quality video streaming. It supports intelligent analytics like people counting across multiple areas, heat mapping, and track mapping, making it a powerful tool for both security and operational insights.

With flexible storage options up to 256GB on a Micro SD card, plus integrated alarm and audio inputs/outputs, this camera adapts to various environments, providing enhanced situational awareness and robust data management.

Audio In/Out With Audio Inputs and/or Outputs

Inputs/Outputs With Inputs/Outputs

Wide Dynamic Range WDR less than 120dB

Form Factor Hemispheric Cameras

Megapixels 12 Megapixels

Lens Type Hemispheric Cameras

Image Sensor 1/1.7” 12Megapixel progressive scan CMOS

Effective Pixels 4000 (H) × 3000 (V)

RAM/ROM 4GB / 2GB

Scanning System Progressive

Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s

Minimum Illumination 0.01 Lux at F2.0 (Color, 30 IRE); 0.001 Lux at F2.0 (B/W, 30 IRE); 0 Lux (Illuminator on)

S/N Ratio More than 56 dB

IR Distance 10m (33ft)

Day/Night Auto(ICR) / Color / B/W

Backlight Compensation BLC / HLC / DWDR

White Balance Auto / Natural / street lamp / Outdoor / Manual / Regional Custom

Gain Control Auto

Noise Reduction 3D DNR

Smart Illumination Supported

Region of Interest Oui (4 zones)

Privacy Masking 4 zones

Lens Type Fixed

Focal Length 1.85 mm

Max. Aperture F2.0

Viewing Angle Horizontal: 185.0° Vertical: 180.0°

DORI Distance Detect 40.0 m (131.23 ft); Observe 16.0 m (52.49 ft); Recognize 8.0 m (26.2 ft); Identify 4.0 m (13.12 ft)

Video Compression H.265+, H.264+, H.265, H.264, MJPEG (only supported by the sub stream)

Resolution 5M (2592 × 1944); 3M (2048 × 1536); UXGA (1600 × 1200); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Frame Rate Main Stream: 2592 × 1944 at 1–25/30 fps; Sub stream: 704 × 576 at 1–25 fps; Third stream: 1280 × 720 at 1–25/30 fps

Bit Rate H.264: 3 kbps – 8192 kbps; H.265: 3 kbps – 8192 kbps

People Counting Supports people counting in area, and displaying and outputting yearly/monthly/daily reports (matching devices are needed); support people counting in 4 areas

Intelligent Search Works together with the STORM Smart NVR to perform refined intelligent search, event extraction, and merging to event videos

Smart Features Area protector, Intrusion, Tripwire

Heat Map Yes

Audio Compression PCM; G.711a; G.711Mu; G726

Audio I/O 1/1 RCA ports; Built-in microphone

Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; people counting in area; stay alarm; people counting; people No. exception detection; safety exception

Alarm I/O 2 channel in: 5mA 3V–5 VCC; 2 channels out: 1,000mA 30 VCC/500mA 50 VCC

Cyber Security Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade

Storage NAS; SFTP; FTP; Micro SD Card up to 256 GB

Management Software STORM, STORM+, ARKIV

Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP

Compatibility ONVIF (profile T/S/G); CGI; P2P; Milestone; Genetec

Maximum User Access 20

Power Supply 12V DC / PoE+

Power Consumption Basic: 6.5 W (12 VCC); 6.1 W (PoE) Max. (ICR + IR intensity): 13 W (12 VCC); 13.9 W (PoE) Heating: 3 W (12 VCC); 3 W (PoE)

Dimensions 59.8 mm × Φ149.8 mm (2.35” × Φ5.90”)

Weight 0.79 kg (1.74 lb)

INSX100 - Mount Adapter

PART #: INSX100 View more

INSX300 - Ceiling Mount Bracket

PART #: INSX300 View more

INSX302 - Mini Goose Neck Bracket

PART #: INSX302 View more

INSX132 - Waterproof Junction Box

PART #: INSX132 View more

Specifications Sheet

03-02-2022 — INSDO12IRHEM 12MP Panoramic Network IR Fisheye Camera 2022.pdf
