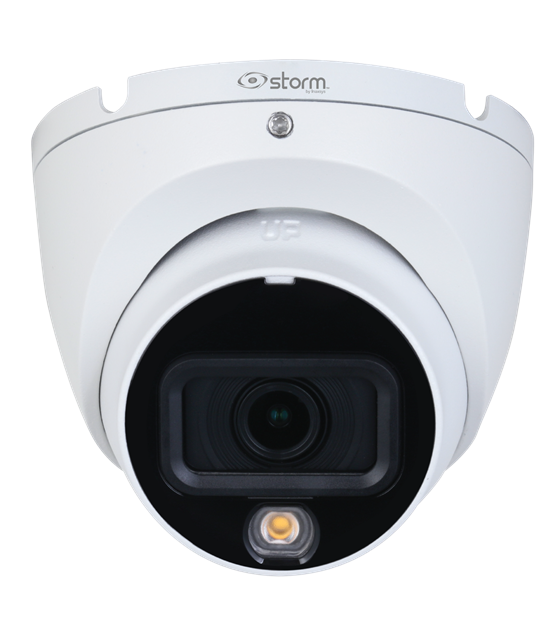

4MP Entry CHROMAVIEW Fixed-focal TURRET Network Camera

Brand : STORM

UPC: 685225102908

PART #: INSTO4NCF

Unify your Security Solution

This new function was made to improve drastically your surveillance system efficiency and reduce your false alarms count. Area Protector allows you to custom your tripwires based on a specific object such as pedestrians or vehicles. Combined with real-time alerts on your monitoring device, this function will be key for any zone surveillance.

Smart H.265+ & H.264+

STORM smart encoding technology can provide high-quality video with higher efficiency and can also reduce the cost of storage space and transmission adopting an advanced algorithm of auto stream control.

On-board Analytics

This camera responds accurately to specific events in a given area. Our algorithm enables Tripwire violations, intrusion detection, abandoned/missing objects and much more. Facilitate your viewing experience using on the edge analytics – one product, multiple features.

Lens Type Fixed

Audio In/Out With Audio Inputs and/or Outputs

Wide Dynamic Range WDR 120dB or more

Form Factor Turret

Inputs/Outputs Without Inputs/Outputs

Megapixels 4 Megapixels

Image Sensor 1/3” 4Megapixel progressive CMOS

Effective Pixels 2688 (H) ×1520 (V)

RAM/ROM 128MB/16MB

Scanning System Progressive

Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s

Minimum Illumination 0.004 Lux at F1.0

S/N Ratio More than 56 dB

Illumination Distance 30 m (98.43 ft)

Illumination LEDs 1 (warm light)

Day/Night Color / B/W

Backlight Compensation BLC / HLC / WDR (120 dB)

White Balance Auto / natural / street lamp / outdoor / manual / regional custom

Gain Control Auto/Manual

Noise Reduction 3D DNR

Motion Detection OFF/ON (4 areas, rectangular)

Region of Interest Yes (4 areas)

Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2560 × 1440 resolution and lower)

Smart Illumination Yes

Privacy Masking 4 Areas

Mirror Yes

Lens Type Fixed-flocal

Mount Type M12

Focal Length 2.8 mm

Max. Aperture F1.0

Viewing Angle Horizontal: 97°; Vertical: 54°; Diagonal: 115°

Pan/Tilt/Rotation Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360°

DORI Distance Detect: 66.0 m (216.5 ft); Observe: 26.4 m (86.6 ft); Recognize: 13.2 m (43.3 ft); Identify: 6.6 m (21.7 ft)

Compression H.265+; H.264+; MJPEG (only supported on the sub stream)

Resolution 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Frame Rate Main Stream: 2688 × 1520 at 1 to 25/30 fps; Sub stream: 704 × 576 (1 fps to 25 fps); 704 × 480 (1 fps to 30 fps)

Bit Rate H.264: 32 Kbps–6144 Kbps; H.265: 12 Kbps–6144 Kbps

Built-in Microphone Yes

Audio G.711a; G.711Mu; G.726; PCM

Certifications CE-LVD: EN 62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B

Alarm Event IP conflict; illegal access; motion detection; video tampering; security exception; network disconnection; audio exception

Cyber Security Digest; WSSE; Account lockout; Security logs; IP / MAC filtering; Generation and im- porting of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution

Ethernet RJ-45 (10/100 Base-T)

SDK & API Yes

Storage FTP

Management Software STORM, STORM+, ARKIV

Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP

Compatibility ONVIF (Profile S/ Profile T); CGI; P2P

Maximum User Access 6

Smart Phone iOS, Android

Browser Chrome; Firefox; IE

Power Supply 12V DC/PoE (802.3af)

Power Consumption Less than 5.4W

Working Environment -40°C to +60°C (-40°F to +140°F); Less than 95% RH

Protection IP67

Material Metal

Dimensions 85.6 mm × Φ94.0 mm (3.37” × Φ3.70”)

Weight 0.73 lbs (0.33 kg)

Specifications Sheet

29-05-2023 — INSTO4NCF 4MP WDR Turret ChromaView Network Camera.pdf
