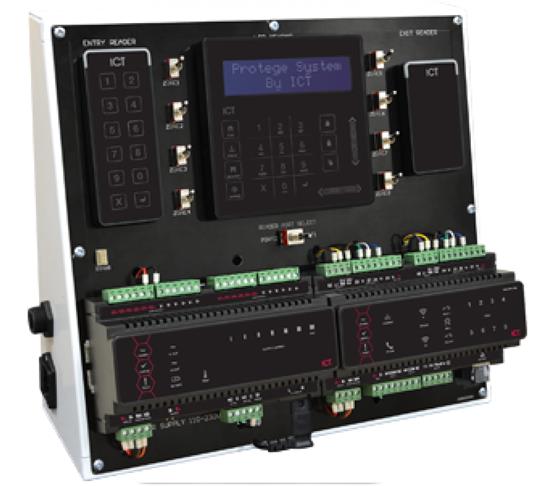

Protege WX DEMO training circuit board with base

Brand : ICT

UPC: 685225105091

PART #: PRT-TRN-WX

The Protege WX training kit is designed to facilitate seamless training sessions with minimal physical hardware. This kit offers a clean and organized setup, with unsightly wires neatly tucked into the console base and easy-to-use switches for controlling reader port configuration and input states.

With its simple and intuitive design, the front panel LEDs are prominently displayed as the modules are mounted on the console front, making them easy to view. Trainees can easily close or open inputs by flicking the zone switches up or down. The hidden wiring ensures a tidy and professional display during demonstrations, and power and Ethernet ports are conveniently located on the left side for easy connection.

The kit also includes an onboard RS-485 expansion port, which is compatible with all Protege expander modules and accessories. Modules and switches are clearly labeled for straightforward identification. Additionally, users can easily switch between Protege GX and Protege WX by swapping out the controller or toggle between Reader Port 1 and 2 with a simple switch flip, making this kit an essential tool for effective and organized training.

Kits Kits

PSU Power Supply -

Mains Input Voltage 120VAC (90-264VAC, 47-63Hz)

Mains Input Operating Current 20VAC 1.5A (Full Load)

DC Output (Combined) 12.64VDC 4.0A Max (V1 Out + V2 Out Total)

DC Output (Single) 12.2VDC 3A Max

Battery Charging 500mA (Typical) *Additional to the 4A Combined DC Output

Batetry Low 11.75VDC

Battery Restore 12.5VDC

Controller Power Supply -

Operating Voltage 11-14V DC

Operating Current 120mA (typical)

DC Output (Auxiliary) 10.45-13.85VDC 0.7A (typical) electronic shutdown at 1.1A

Bell DC Output (Continuous) 10.4-13.45VDC 8 Ohm 30W Siren or 1.1A (Typical) Electronic Shutdown at 1.6A

Bell DC Output (Inrush) 1500mA

Total Combined Current* 3.4A (max)

Electronic Disconnection 9.0VDC

Keypad Power Supply -

Operating Voltage 11-14V DC

Operating Current 60mA (95mA Max)

tSec Reader Power Supply -

Operating Voltage 12VDC (9.5 to 14VDC)

Operating Current tSec Standard Reader: 254mA (Peak, Reading); tSec Mini Reader: 203mA (Peak, Reading)

Controller Communication -

Ethernet 10/100Mbps Ethernet communication link

RS-485 3 RS-485 communication interface ports, 1 for module communication and 2 for reader communication

Modem 2400bps modem communication

Controller Reader Ports -

Readers 2 reader ports that can be independently configured for either Wiegand (up to 1024 bits configurable) or RS-485, allowing connection of up to 4 readers providing entry/exit control for two doors // RS-485 reader port connections support configuration for OSDP protocol

Inputs -

Controller (System) Inputs 8 high security monitored inputs

PSU Inputs Dedicated Hardware Tamper Input, 8 Trouble Inputs (internal)

Keypad Inputs 2 standard or 4 using Input Duplex mode

Outputs -

Controller Outputs 4 50mA (max) open collector outputs for reader LED and beeper or general functions; 2 Form C relays - 7A N.O/N.C. at 30 VAC/DC resistive/inductive

PSU Outputs 2 Solid-State Relay Outputs, 50mA 12V Max each

Keypad Outputs 1 open collector (50mA Max) output. Programmable for all output functions; 3 system status LEDs; 1 system beeper

Keypad User Interface -

User Interface Display Energy smart backlit LCD 16x2 alphanumeric display with enhanced viewing angle

User Interface Keypad Combined 23 key capacitive touch keypad with 3 system status LEDs

tSec Reader Communications -

Card Read Range DESFire EV1 ISO 15mm (0.6")

Tag Read Range DESFire EV1 6mm (0.23")

Wiegand Interface Multiple format 26 or 34 Bit data 0 and data 1, card defined

Frequency 13.56 MHz ISO/IEC 14443 Type A

Multi Conductor Cable Wiegand: 22Awg alpha 5196, 5198, 18Awg alpha 5386, 5388. Max Distance 150m (492ft) Module comms/RS485: Belden 9842 or equivalent. Max distance 900m (3000ft)

OSDP Communication OSDP standard 2.1.5 with Secure Channel Protocol

Bluetooth® Wireless Technology -

Bluetooth® Read Range Proximity mode: up to 0.5m (1.6ft) Configurable Action unlock (shake): up to 5m (16.4ft) Configurable

Bluetooth® Electronic Credential Transmission Technology NRF8001 Bluetooth® version 4.0 compliant; Proprietary data exchange protocol. AES128 Encrypted; Reader App Version: 1.04.175 and above; Credentials can be distinguished by unique site code and card number

Bluetooth® Wireless Device Protege Mobile 1.0.x

NFC -

NFC Read Range Up to 60mm

NFC (Near-field communication) electronic credential transmission technology Android 4.4 or above, with phones which support ISO7816-4; Proprietary Secured DESFire credential; Credential is AES-256 (NIST certified AES algorithm); Reader App Version: 1.04.175 and above; Credentials can be distinguished by unique site code and card number

NFC Wireless Device Protege Mobile 1.0.x

Dimensions -

Dimensions (L x W x H) 330 x 180 x 300mm (13 x 7.1 x 11.8")

Net Weight 4.4kg (9.7lb)

Gross Weight 5.9kg (13lb)

Operating Conditions -

Operating Temperature -10° to 55°C (14° to 131°F)

Storage Temperature -10˚ to 85˚C (14˚ to 185˚F)

Humidity 0%-93% non-condensing, indoor use only (relative humidity)
