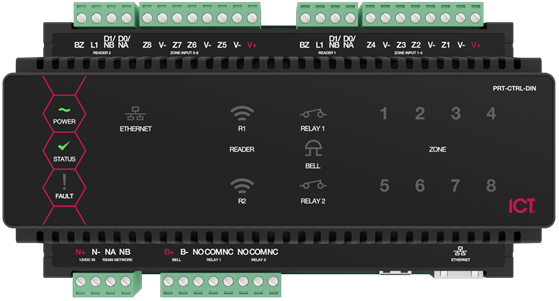

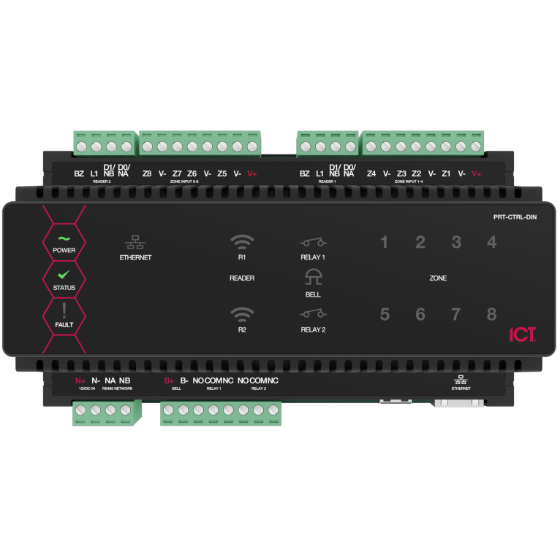

Protege GX DIN Rail System Controller (IP Only)

Brand : ICT

UPC : 685225108733

PART # : PRT-CTRL-DIN-IP

A compact, scalable controller providing integrated access control and alarm management. Supports two onboard readers (Wiegand or RS-485), connects to all Protege expansion modules, and integrates with the PRT-GX-SRVR Protege GX Management Suite. Scalable to 64 doors with unlimited users and access levels. Features two Form C lock outputs, eight zone inputs, full peer-to-peer communication, and Ethernet-based firmware upgrades. Compatible with all existing SE modules and devices. Operates on 12 VDC. No onboard PSTN dialer.

This model does not include an onboard PSTN dialer

Operating Voltage 11-14V DC

Operating Current 120mA (typical)

DC Output (Auxiliary) 10.45-13.85VDC 0.7A (typical) electronic shutdown at 1.1A

Bell DC Output (Continuous) 10.4-13.45VDC 8 Ohm 30W Siren or 1.1A (Typical) Electronic Shutdown at 1.6A

Bell DC Output (Inrush) 1 500 mA

Total Combined Current* 3,4 A (max.)

Electronic Disconnection 9.0VDC

Ethernet 10/100Mbps Ethernet communication link

RS-485 3 RS-485 communication interface ports, 1 for module communication and 2 for reader communication

USB Type-A

Readers 2 reader ports that can be independently configured for either Wiegand (up to 1024 bits configurable) or RS-485, allowing connection of up to 4 readers providing entry/exit control for two doors ** ; RS-485 reader port connections support configuration for OSDP protocol

Inputs (System Inputs) 8 high security monitored inputs

Outputs 4 50mA (max) open collector outputs for reader LED and beeper or general functions

Relay Outputs 2 Form C relays - 7A N.O/N.C. at 30 VAC/DC resistive/inductive

Dimensions (L x W x H) 156 x 90 x 60mm (6.14 x 3.54 x 2.36")

Net Weight 348g (12.3oz)

Gross Weight 428g (15.1oz)

Operating Temperature UL/ULC 0° to 49°C (32° to 120°F) : EU EN -10° to 55°C (14° to 131°F)

Storage Temperature -10˚ to 85˚C (14˚ to 185˚F)

Humidity 0 % à 93 % sans condensation, usage intérieur uniquement (humidité relative)

Mean Time Between Failures (MTBF) 560,421 hours (calculated using RFD 2000 (UTE C 80-810) Standard)
