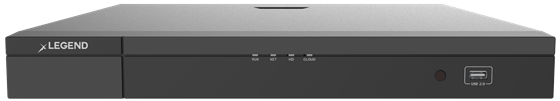

32 CHANNEL 4K NVR W/16 POE PORTS

Brand : LEGEND

UPC: 685225506683

PART #: INLG32164KN

Introducing our 32 Channel 4K NVR with 16 PoE Ports, engineered for robust surveillance capabilities. It supports H.265+/H.265/H.264 compression and accommodates up to 32-channel input with recording resolutions up to 12 megapixels. The system offers HDMI and VGA simultaneous output and includes 4 SATA HDDs, each supporting up to 10TB of storage. NDAA compliant, this NVR is plug-and-play with 16 independent PoE network interfaces and supports cloud upgrades for seamless, future-proof operation.

Plug & Play Video Recorders NDAA Legend Network Video Recorder

Channels 32 Channels

Raid N/A

IP Video Input 32-Channel

Two-way Audio Input 1-Channel, RCA

Incoming Bandwidth 320Mbps

Outgoing Bandwidth 320Mbps

Remote Users 128

Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS

HDMI/VGA Output HDMI: 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz // VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz,1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

Recording Resolution 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CI

Audio Output 1-Channel, RCA

Audio Compression G.711A, G.711U

Synchronous Playback 16-Channel

Live View Display 1 / 4 / 6 / 8 / 9 / 16 / 25 / 36

Corridor Mode Screen 3 / 4 / 5 / 7 / 9 / 10 / 12 / 16 / 32

Decoding Format H.265+ / H.265 / H.264

Liveview/Playback 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF

Capability 1-Ch x 12MP at 30 2-Ch x 4K at 30, 5-Ch x 4MP at 30, 10-Ch x 1080P at 30, 22-Ch x 720P at 30, 32-Ch x D1

SATA 4 SATA interfaces

Storage up to 10TB for each HDD (The maximum HDD capacity varies with environment temperature)

Disk Group Supported

RAID RAID1, 5

Video Content Analytics by Camera Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change, Detection, Object Left Behind, Object Removed, Auto Tracking

Video Content Analytics Search Behavior Search, Vehicle Search

People Counting People Flow Counting, Crowd Density Monitoring

Smart Intrusion Prevention 8-Channel

Network Interface 1 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces

Serial Interface 1 x RS485

USB Interface Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0

Alarm In 16-Channel

Alarm Out 16-Channel

General Alarm Motion, Tampering, Human Body Detection, Video Loss, Input Alarm, Audio Detection

Alert Alarm IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal

Certification CE, FCC, UL, RoHS, WEEE

CE EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017

FCC Part15 Subpart B, ANSI C63.4

Power Supply 100 ~ 240V AC Power Consumption: ≤ 50 W (without HDD)

PoE Interface 16 RJ-45 10M/100M self-adaptive Ethernet Interface

Max Power Max 30W for single port; Max 150W in total

Supported Standard IEEE 802.3af/at

Working Envrionment- -10°C to + 55°C (+14°F to +131°F), Humidity ≤ 90% RH

Chassis 19-inch rack-mounted 3U chassis

Dimensions (WxDxH) 400mm × 363mm × 74mm (15.7” × 14.3”× 2.9”)

Weight (without HDD) Less than 4Kg (8.82lb)

Specifications Sheet

18-06-2024 — INLG32164KN 32 Channel 4K NVR with 16 PoE Ports.pdf

Want to know more about LEGEND ?

You asked, we listened. Tailored to your requirements, Legend is our NDAA compliant brand. It offers the latest in cutting edge video technologies, enhanced features and a robust build.

Not all choices have to be hard choices, that’s why Legend offers a variety of unique models. If you are installing your first or hundredth project, you won’t have to spend hours trying decide which device fits your needs.

Legend allows you to protect your home like a multinational enterprise would, and protect your multinational as if it was your home. All the features you need are in Legend.

Amazing 4K (8MP) resolution for perfect picture clarity

True WDR (120 dB) to offer you the best image in the most demanding lighting conditions

H.265+ Compression helps reduce your storage by up to 90%

Record up to 256GB of footage directly on your camera

Legend CLOUD Application for Android and iOS

Fully NDAA Compliant
